12 Cores Fiber Optical Singlemode MPO to LC Cable Cassette Modular

Prod Model:	002
Connector 1:	MPO MTP
Connector 2:	LC
Fiber Type:	Singlemode
Material:	PC Plastics
Insertion Loss:	0.30 dB
Return Loss:	50dB
Ports:	LC Duplex
Fiber Count:	12
Color:	Black
Adapter:	MPO MTP
Application:	Medicine
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	MPO LC

Product Description

12 Cores Fiber Optical Singlemode MPO to LC Cable Cassette Modular

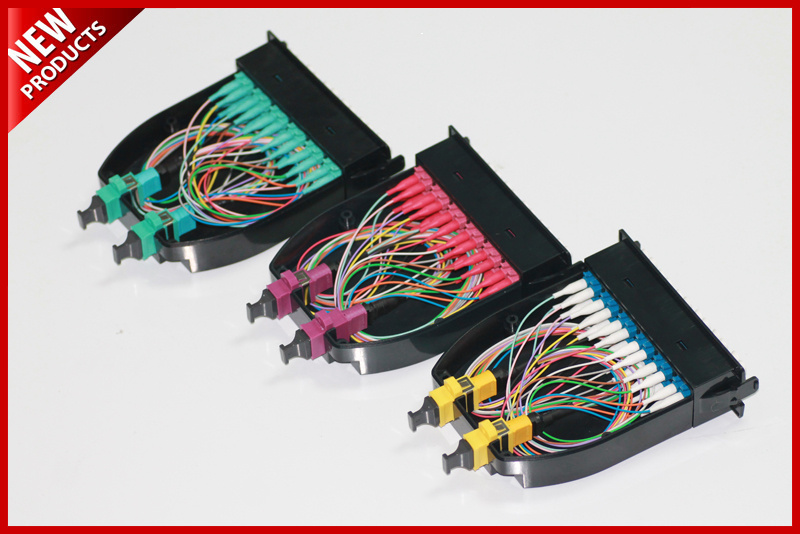

MPO cassette is a high density pre-terminated fiber optic system designed for datacenters, storage area networks and local area networks. This innovative system can reduce installation time and space, makes application simple : mount the cassette, pull or place the cables and plug the cables into cassette. Whether the distance between devices are a few feet or hundreds of meters, the data rates are 100 Mb/s, 1 Gb/s or even 10 Gb/s, the MPO optical fiber solution is an excellent choice. MPO cassettes are available in 12 or 24 fibers, multimode ( 50/125, 50/125 OM3, 62.5/125) or single mode versions and connectorized with SC, LC.

Specification
MPO cassettes with LC or SC connectors have optimized optical performances: a maximum Insertion Loss of 1.3 dB per cassette and a minimum Return Loss of 20 dB (Multimode), 55dB (Single mode) per cassette.

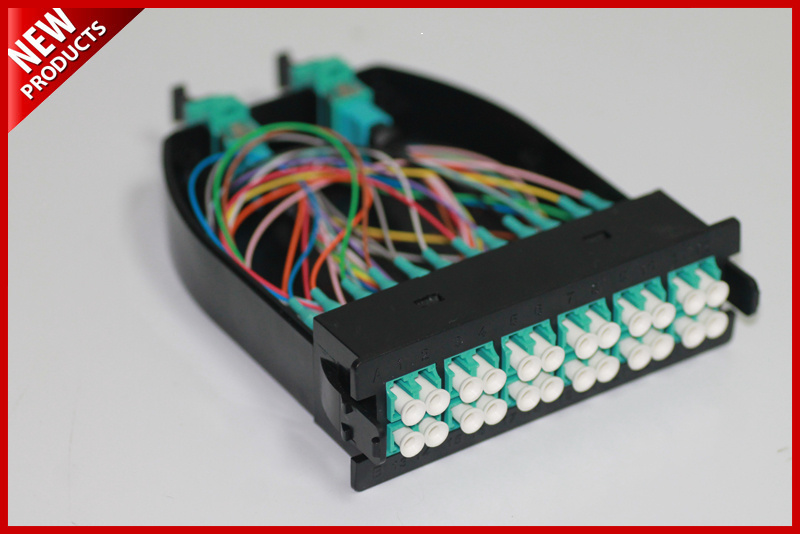

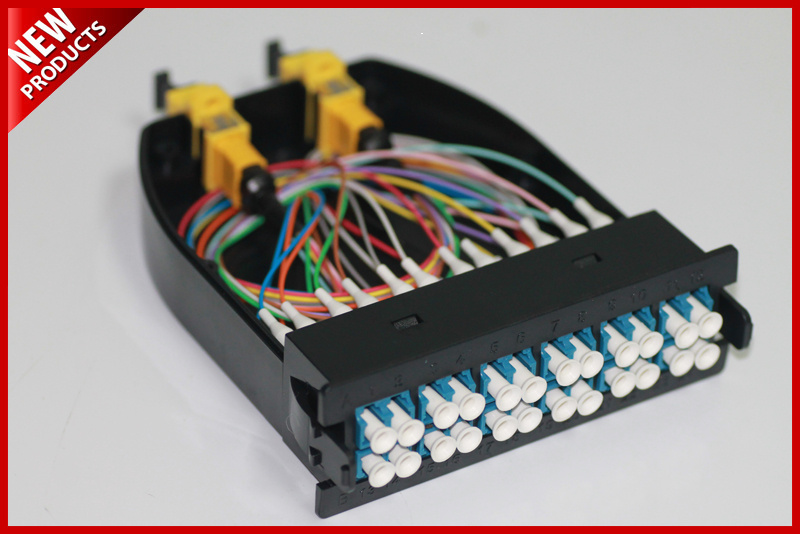

Each cassette is small in size. On the back side of the cassette are one or two 12-fiber MPO adapters. On the front side of the cassette may be 12 SC simplex ports or 6, 12 LC Duplex ports.

Features and Benefits
√ High density;
√ Compact size;
√ Quick and easy installation;
√ Reduce installation time and cost;
√ Available with 12 fiber and 24 fiber configurations for SC, LC connectors;
√ Standard and customized made are available;
√ Data Centre Infrastructure, Storage Area Network, Fibre Channel.

Specification

Item	MTP Loss(dB)			LC/SC Loss(dB)
	IL	IL Change,500 times mating	IL Change,40 times temperature circle	IL	ΔIL Change,500 times mating	IL Change,40 times temperature circle
SM/MM	≤0.5dB	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB	≤0.3dB



Fiber Type (ISO/IEC 11801)	9/125um, OS2, Yellow
Attenuation Coefficient [dB/km]	≤3.5 Max(850nm) ≤1.5 Max(1300nm) ≤2.7 Typ.(850nm) ≤0.9 Typ.(1300nm)
Minimum Bandwidth: Overfilled Launch [Mhz-km]	≥1500(850nm) ≥500(1300nm)
Minimum Bandwidth: Laser Effective Modal Bandwidth[Mhz-km]	≥4000(850nm)
Jacket Material	Riser - OFNR LSZH - Low Smoke Zero Halogen Plenum - OFNP
