12 Cores Patch Cord MPO/MTP Patch Panel/Cassette
| Price: |
US $ 1.25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MPO/MTP Cassette |
| Model No: |
Tk-MPO/MTP-004 |
| Fiber Type: |
Singlemode/Multimode |
| Products Name: |
12f MPO/MTP Cassette |
| Standard Insertion Loss Sm: |
≤0.7 |
| Insertion Loss Sm: |
≤0.3 |
| Return Loss (dB): |
≥60(APC) |
| Testing Wavelength (Nm): |
1310/1550(Sm), 850(mm) |
| Working Temperature(ºC): |
-40-+85 |
| Transmission Medium: |
Multimode |
| Structure: |
SC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
Product Description

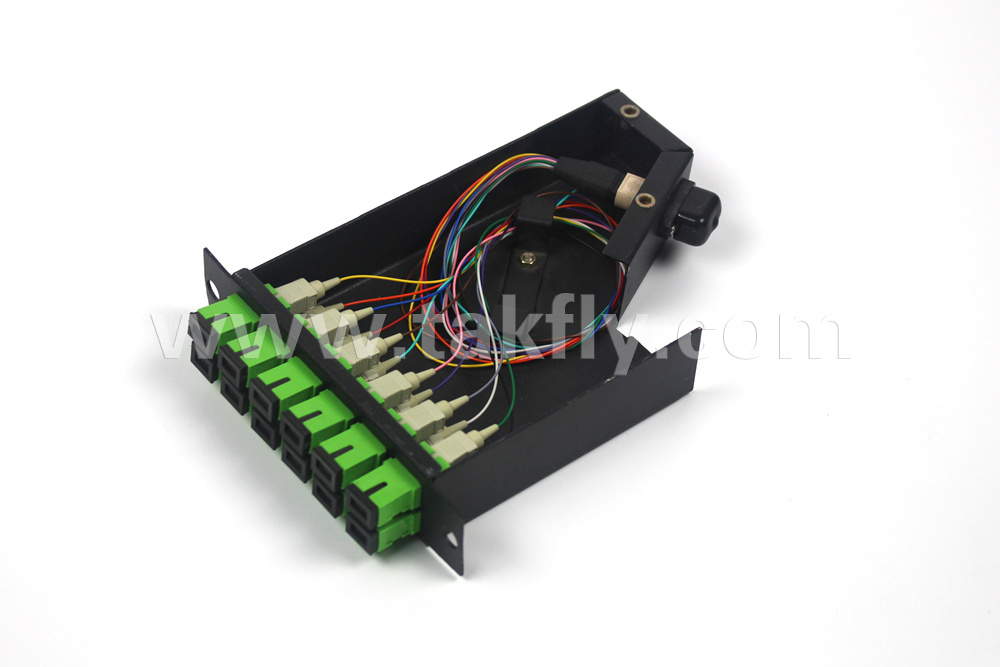

12 Core 12F MPO/MTP Patch Panel/CassetteGeneral Details
Takly MPO/MTP module Cassettes is maninly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
Features
Adopts high quality engineering plastics and Aluminum alloy material, with electrostatic pensu surface, outstanding in outlooking and users friendly.MPO faceplate can be upgraded easily.All the front port are with mark no. , easy to indentify.Quick and easy installed, flexible in configuration and easy to management.
Application

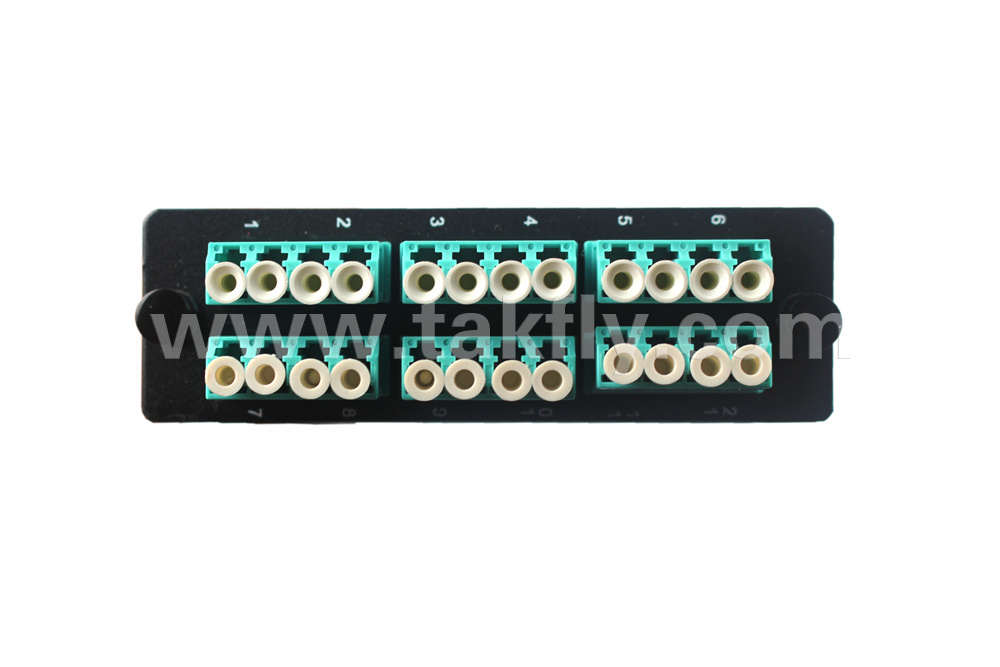

Detail pics
Machine rooms of data center and internetData communication networkOptical system access networkStorage area networking fiber channelHigh density architectures
Specification
Performance of Assemblies: MPO/MTP Termination:| Fiber Type | Single Mode | Multi-mode |
| Standard Insertion Loss | Typical(dB) | ≤0.7 | ≤0.5 |
| Low Insertion Loss | Typical(dB) | ≤0.3 | ≤0.3 |
| Return Loss (dB) | ≥60(APC) | ≥30(PC) |
| ≥50(PC) |
| Tensile Strength (kgf) | 10 |
| Durability(dB) | ≤0.2 500 matings |
| Working Temperature(ºC) | -40 ~+85 |
| Testing Wavelength (nm) | 1310/1550 | 850 |
Generic Connector Termination:| Fiber Type | Single Mode | Multi-mode |
| Parameter | UPC | APC | UPC |
| Insertion Loss Maximum (dB) | ≤0.3 |
| Return Loss (dB) | ≥50 | ≥60 | ≥35 |
| Durability (dB) | ≤0.2 500 matings |
| Working Temperature(ºC) | -40 ~+85 |
| Testing Wavelength (nm) | 1310/1550 | 850 |
Pic about takfly
Why choose Takfly ?
Service
1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality Control
All products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantages:
1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent service
Delivery:
1.Packing: Plastic bag& carton, Neutral packing or as your required.
2.Sample time: 1-3 days after confirm
3.Order lead time: 2-7working days depend on quantity and products.
4.Shipping port: Shenzhen China or HK
5.Shipping term: EXW or FOB
Payment:
Acceptable by T/T, West Union, PayPal and L/C according to your requirement
Shipping
1.Once confirmed the order, and payment sent after finishing goods. 2.Goods will be sent within 7 days with the fast,reasonable and efficient shipping mode such as DHL, EMS, UPS,FEDEX, TNT, etc.
3.Please make sure your postal address is correct. Any lost and mistakes because of wrong address are not supplier's responsibility.
4.Please do not bid if you disagree with the shipping and handling charge.
Contact
1.Our working time:8:30am~6:00pm
2.All the inquiries will be replied within 24hours, So please feel free to send us your inquiry.
3.When our trade manager is off line, please feel free to leave a message, and tell us the products you need, our model number, and your E-mail address, we will reply to you within 24 hours too.
Any question about this 12 core MPO patch panel cassette.
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
