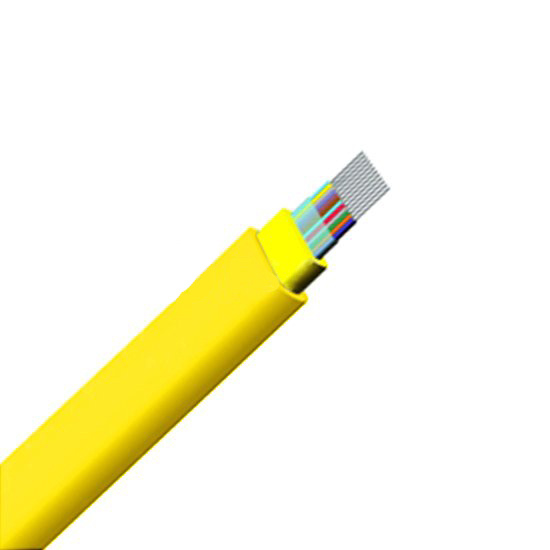

12-Fibers Singlemode 9/125 OS2 LSZH Indoor Ribbon Fiber Optical Cable

Name: 12-Fibers Singlemode 9/125 OS2 LSZH Indoor Ribbon Fiber Optical Cable
Brand: all-electronics-online.com
SKU: 819938315
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	US $ 0.95/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJFDBV-OS2-12
Od:	4.5 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	12 Cores
Sheath Material:	PE

Product Description

12 Fibers Singlemode 9/125 OS2, LSZH, Indoor Ribbon Fiber Optical Cable, especially for MTP Assembly

Ribbon cables are designed for horizontal intrabuilding backbones where limited-smoke and zero-halogen requirements exist. These cables are organized with 8/12-fiber ribbons inside a central tube that are surrounded by dielectric strength members and a specially formulated flame-retardant outer jacket. The 8/12-fiber ribbons have readily identifiable ribbon ID numbers and fiber colors that allow for easy access to individual fibers. The precise fiber and ribbon geometries result in excellent mass splicing yields. The ribbon riser cables are compatible with standard ribbon cable procedures and hardware, especially used in optical connections in optical communication equipment rooms and optical distribution frames, optical apparatus and equipments.

Cable Type	Ribbon Flat	Fiber Count	12 Fibers
Flammability Rating	LSZH	Fiber Type	Singlemode G.652D (Yellow)
Cable Diameter	4.8mm	Weight	17kg/km
Tensile Strength (long/short term)	600/1500(N)	Crush Load (long/short term)	300/1000 (N/100mm)
Bending Radius (long/short term)	10D/20D(mm)	Application	Indoor
Operating Temperature	-20°C~+60°C	Storage Temperature	-20°C~+60°C

Feature and Application

Good mechanical and environmental performanceExcellent transmission performanceSupport large-capacity data transmission, 4-12 Fibers are availableLSZH Jacket keep the cable a good performance of fire-resistantAramid yarn ensure the cable a superior performance of tensile strengthAll dielectric structure design, without electromagnetic induction effect

FTTH optical cableInterconnect cablesHigh density interconnection of MT or MTP connectorsIndoor and outdoor point to point applicationsDirect connectorizationInternal wiring in cable trays

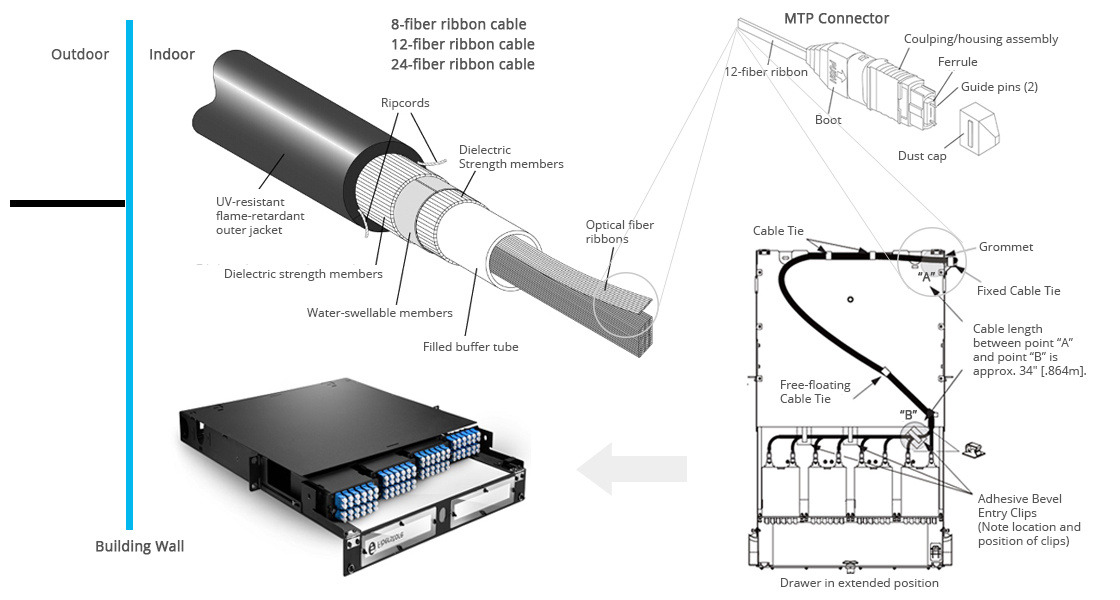

Ideal Solution by Using Ribbon Cable
