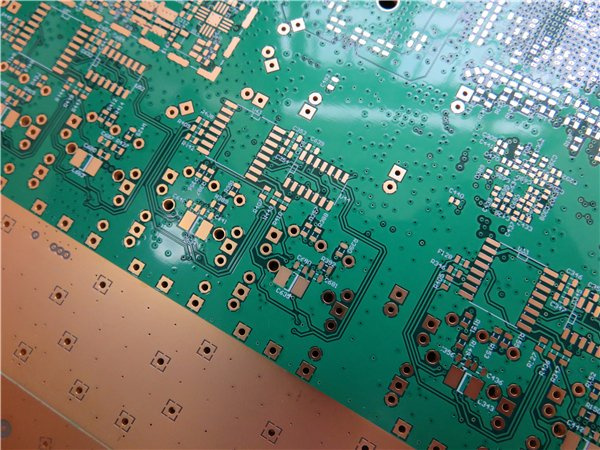

12 Layer PCB 2.0mm with Via in Pad Under BGA
| Price: |
US $ 1.02/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-895-V8.95 |
| Board Thick: |
2.0mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
1 Oz |
| Soldermask Color: |
Green |
| Silkscreen Color: |
White |
| Minimum Trace And Space: |
4 Mil / 4 Mil |
| Minimum / Maximum Holes: |
0.25 mm / 3.0 mm |
| Final Foil Internal: |
1 Oz |
| Via: |
Vin in Pad Under BGA Package |
| Test: |
100% Electronic Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.1 General description
This is a type of multilayer PCB built on FR-4 substrate with Tg 135°C for the application
of Signal transmission with 12 layer copper track. It's 2.0 mm thick with white silkscreen(Taiyo)
on green solder mask (Taiyo) and immersion gold on pads. The base material is from ITEQ
supplying single up PCB. They're fabricated per IPC 6012 Class 2 using supplied Gerber data.
Each 20 boards are packed for shipment. 1.2 Features and benifits
a. Lead free assemblies with a maximum reflow temperature of 260ºC
b. Long storage time ( It can be stored for more than 1 year in vacuum bag)
c. PCB manufacturing on required specifications.
d. Strict WIP inspection and monitoring as well as working instruction
e. Quick and on-time delivery
f. UL recognized and RoHS Directive-compliant
g. Prototype PCB capability 1.3 Application Dsl Modem, Solar Battery Charger, Vehicle Tracker, GPS Receiver, Wi Fi Antenna, Bluetooth
USB Hub, USB Wireless Router, SMS Modem, Multicoupler Antenna, Phone systems
1.4 Parameter and data sheet| PCB SIZE | 257 x 171.5mm=1PCS=1design |
| BOARD TYPE | Multilayer PCB |
| Number of Layers | 12 Layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate 25um |
| 130 um prepreg 1080 x 2 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- BOT 17um(0.5oz)+plate 25um |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4 mil / 4 mil |
| Minimum / Maximum Holes: | 0.25 mm / 3.0 mm |
| Number of Different Holes: | 26 |
| Number of Drill Holes: | 4013 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140, Tg>135ºC, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 2.0mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (ENIG)( 2 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented.
Vin in pad under BGA package |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
