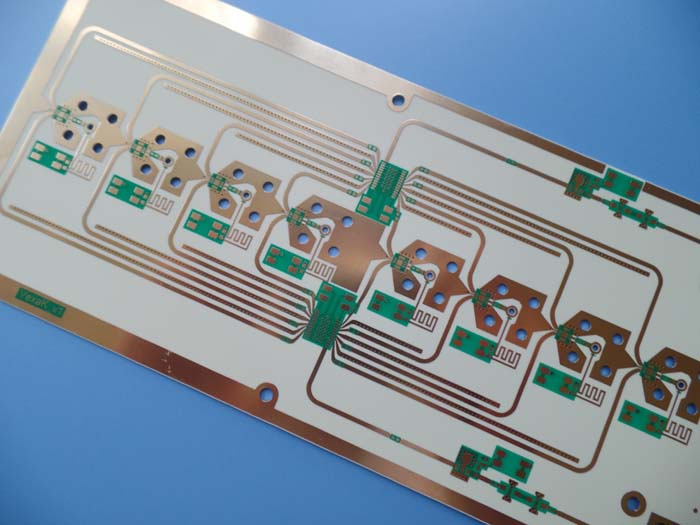

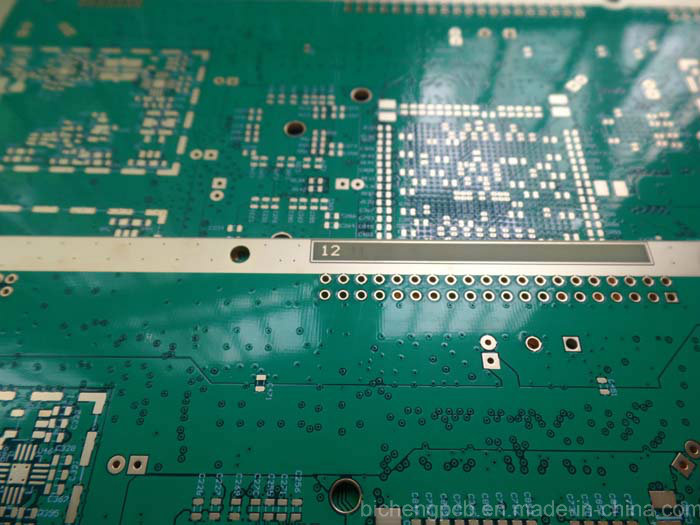

Name: 12 Layer PCB BGA RO4350b 4 Mil (0.1mm) Circuit Board
Brand: all-electronics-online.com
SKU: 831796765
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 2.15/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-594-V5.94
Final Foil External:	1.5 Oz
Final Height Of PCB:	1.69mm
Surface Finish:	Immersion Gold
Solder Mask Color:	Green, Lp-4G G-05, Nanya Supplied
Colour Of Component Legend:	White, S-380W, Taiyo Supplied
Mininum Trace (Mil):	7.99 Mil
Minimum Gap(Mil):	9.37mil
Test:	100% Electrical Test Prior Shipment
Via:	Plated Through Hole(Pth), Via Tented.
Minimum / Maximum Holes:	0.399mm/3.556mm
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	RO4350b Mix Fr4
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon

Product Description

Company Profile
You're benefit from following 5 types of 2 layer PCB's from Bicheng Enterprise Limited.

(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB

(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)

(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base

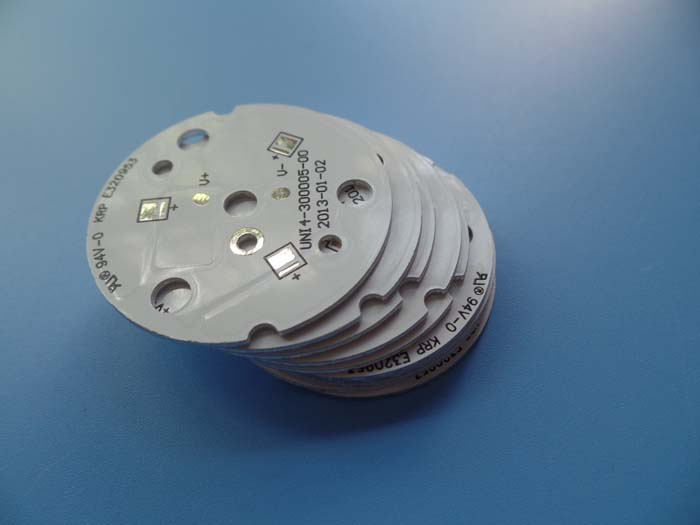

(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor

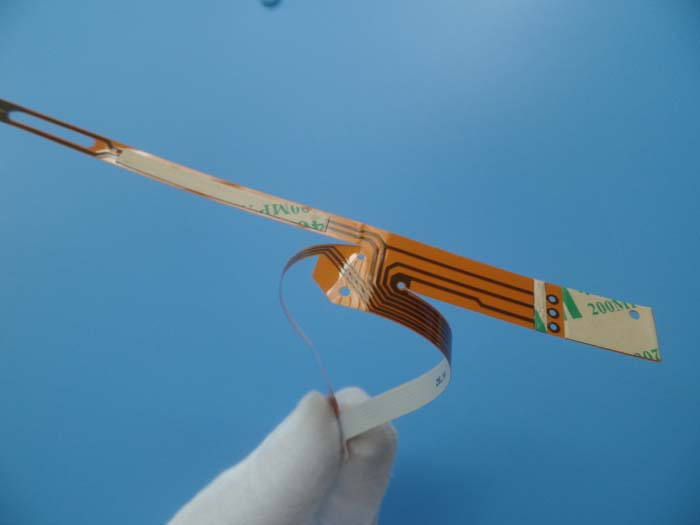

(5)Polyimide material (Flexible PCB)

High Frequency PCB

Flexible Printed Circuit

Metal Core PCB

PCB Board

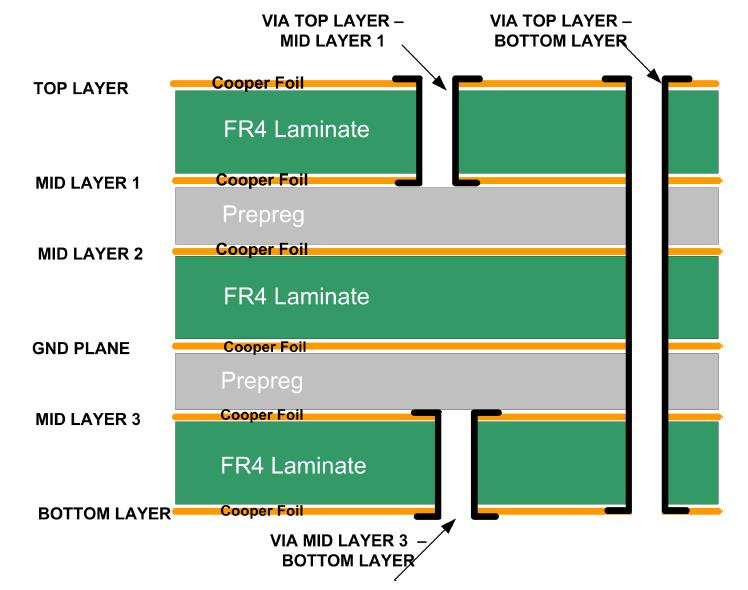

The components of multilayer PCB: thin laminates

A multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.

Thin laminates are used for inner cores and are available in so many different thicknesses that
almost any specified build-up can be accomplished.

Different thickness of thin laminates

mm	mils	mm	mils
0.050	2	0.360	14
0.075	3	0.410	16
0.100	4	0.460	18
0.125	5	0.510	20
0.150	6	0.560	22
0.175	7	0.610	24
0.200	8	0.660	26
0.250	10	0.710	28
0.300	12	0.760	30

The thicknesses are valid for the bare laminate, with the copper foil being excluded. We can see
the cores are quite thin. For a total thickness of 1.6mm (0.063inch) board, the more layers, the thinner the laminates should be. See our reference Multilayer PCB stackup for 0.063inch thick.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
