12 Layer PCB Rogers 4350b Circuit Board Volume Production

Name: 12 Layer PCB Rogers 4350b Circuit Board Volume Production
Brand: all-electronics-online.com
SKU: 831305065
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 1.01/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-457.1757-V1.1
Outer Copper Foil:	1 Oz
Board Thickness:	1.0mm
Surface Finish:	HASL Lead Free
Solder Mask Color:	Black, Kuang Shun, Lpsm, Ksm-S6189bk31
Colour Of Component Legend:	No Silkscreen Requried.
Minimum Trace And Space:	9.6 Mil
Minimum / Maximum Holes:	5.9mm
Solderablity Test:	Pass
Function:	100% Pass Electrical Test
Warpage:	0.25%
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0
Brand:	Bicheng

Product Description

Company Profile
Founded in Shenzhen China in 2003 Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry. Our PCB products range from fiberglass PCB, high frequency PCB to metal core PCB and ceramic PCB's.

PCB Board

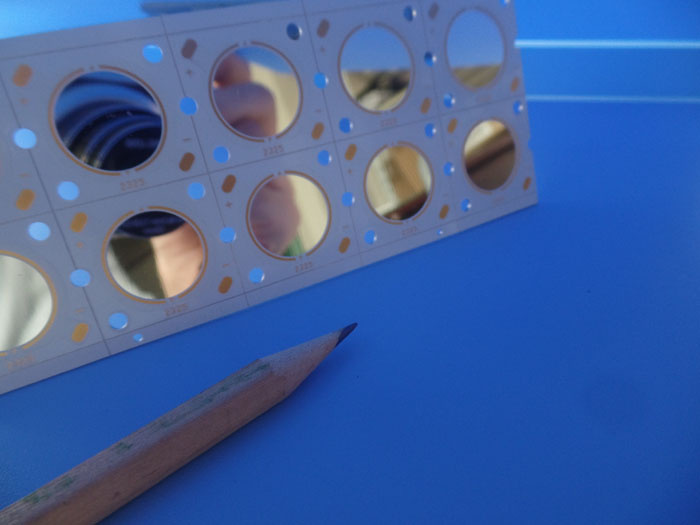

Aluminum PCB

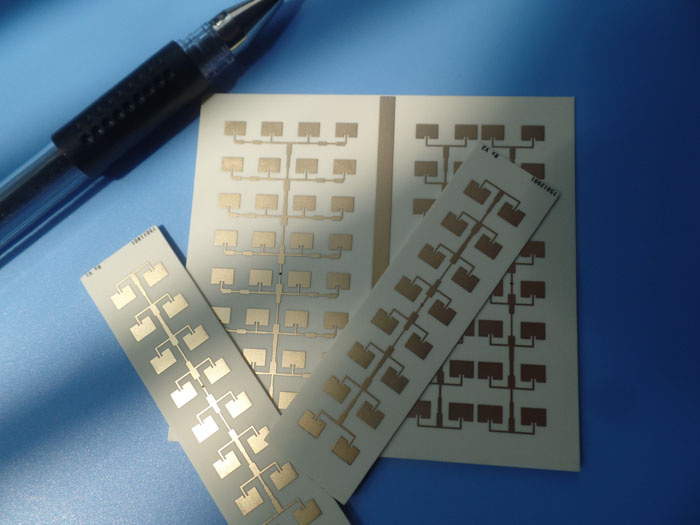

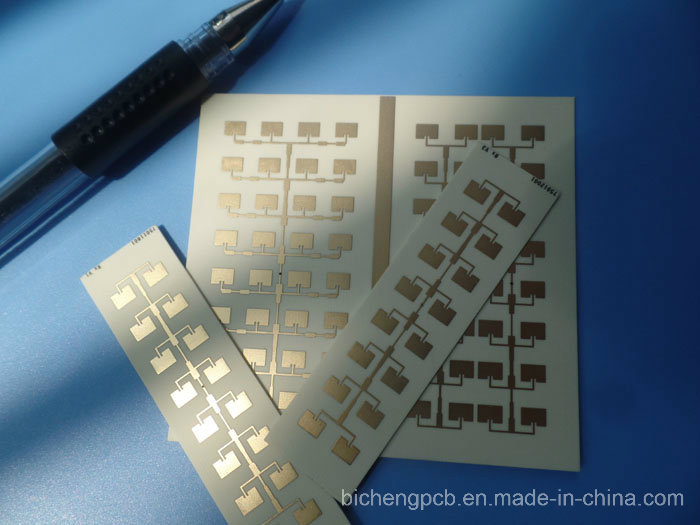

Microwave PCB

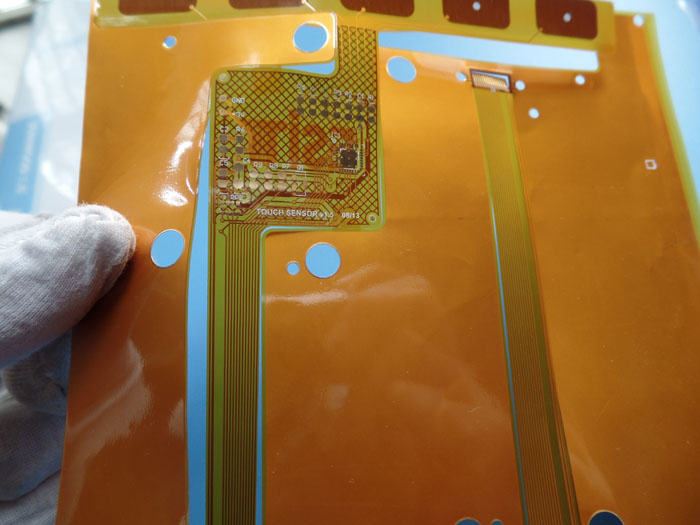

Flexible PCB

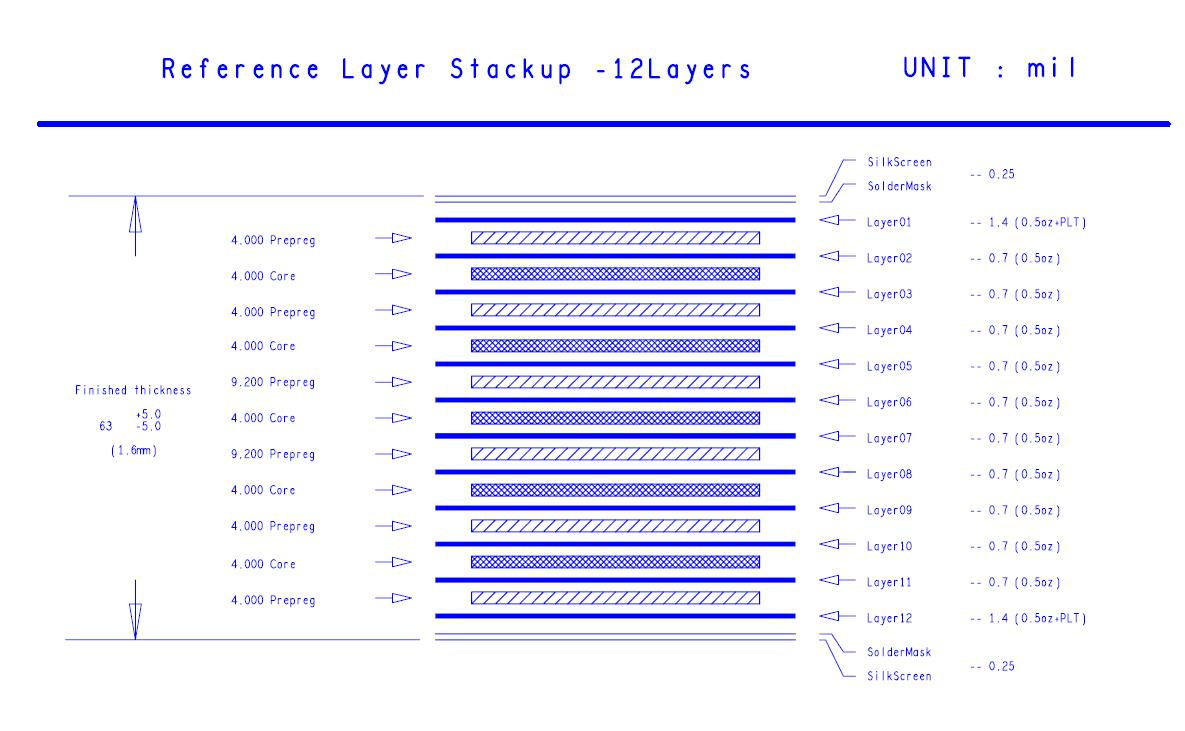

The process of multilayer PCB
A) In general, a multilayer board consists of a number of very thin print-and-etch inner layers, but drilling of holes has not been carried out. Outer layers of the multilayer board remain unetched.

B) Layers from top to bottom are bonded together in close registration by means of thin plies of prepreg. The bonding is performed under close temperature and pressure control in a lamination press.

C) After lamination, they are the processed in very much the same way as an ordinary double-sided PTH boards, i.e. holes are drilled, cleaned and plated. Outer layers are etched to develop the circuit pattern. Solder masks are applied and solder coating (HAS, ENIG etc) is performed.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
