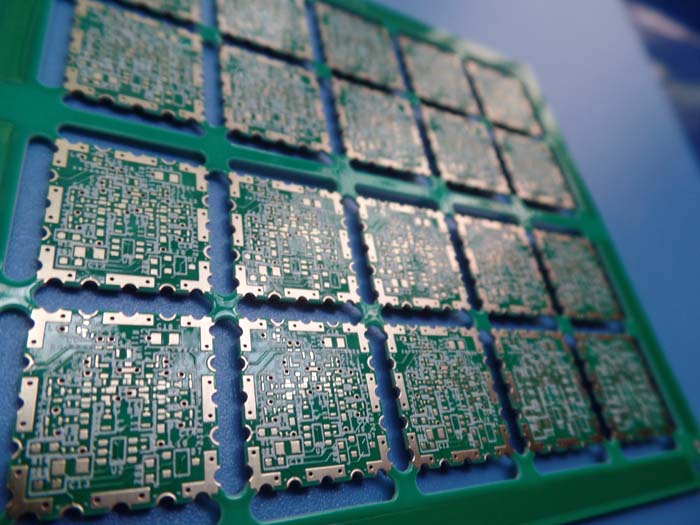

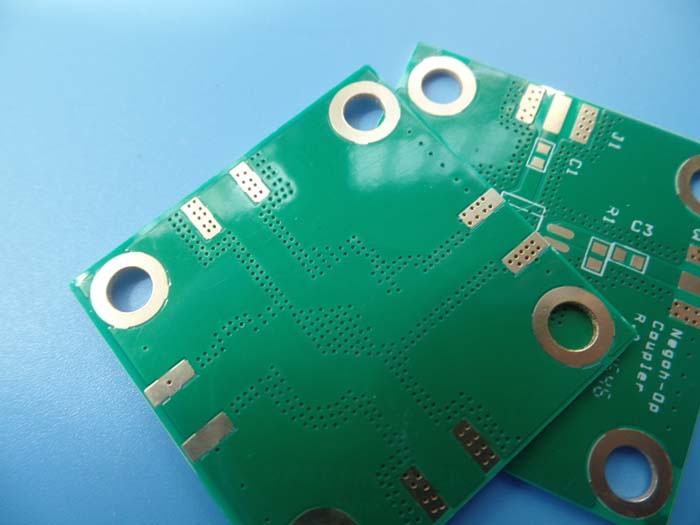

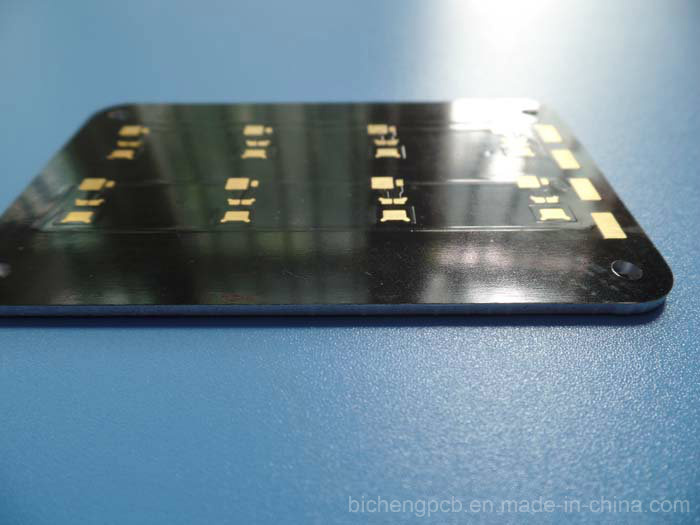

12 Oz (420 um) Heavy Copper PCB Circuit Board Small Run

Name: 12 Oz (420 um) Heavy Copper PCB Circuit Board Small Run
Brand: all-electronics-online.com
SKU: 831716205
Availability: InStock
Rating: 5 (48 reviews)

Price:	US $ 1.05/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-587-V5.87
Final Foil External:	1.5 Oz
Final Height Of PCB:	0.6-0.7mm
Surface Finish:	Electroless Nickel Over Immersion Gold (Enig)
Solder Mask Color:	Green, Psr-2000gt600d, Taiyo Supplied
Colour Of Component Legend:	White, Ijr-4000 MW300, Taiyo Supplied
Mininum Trace (Mil):	7.87 Mil
Minimum Gap(Mil):	5.9 Mil
Via:	Plated Through Hole(Pth)
Board Plating:	0.0030" (0.076mm)
Test:	100% Electrical Test Prior Shipment
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon
Dielectric:	RO4350b

Product Description

Company Profile
Bicheng Enterprise Limited which was founded in 2003 is a leading PCB expert that specializes
in supplying high-tech PCB in high mixed, fast prototype, small to medium volume. We're capable
of supplying PCBs up to 32 layers inclusive of HDI circuit boards, flexible circuits, rigid-flex boards, hybrids, halogen-free boards, metal-based PCB, high frequency PCB, heavy copper (up to 12 oz) PCB etc. which are in the applications of high-tech products.
The manufacturing facility is certified with ISO9001, ISO14001 & TS16949.Our products are widely used in Telecom, Industrial Control, Networks, Healthcare, & Automotive Industries.

High Frequency PCB

Flexible Printed Circuit

Metal Core PCB

PCB Board

RO4000 Series:
A. Excellent high frequency performance due to low dielectric tolerance and loss.
B. Stable electrical coefficient of dielectric constant.
C. Excellent dimensional stability.

7) Surface finish: Electroless Nickel Immersion Gold (ENIG)
a) Excellent surface planarity, particularly helpful for PCBs with BGA packages or even
CSP mounted components to reduce failure rate during assembly and soldering.
b) Good oxidation resistance and good heat dissipation.
c) Long storage time ( It can be stored for more than 1 year in vacuum bag)
d) High solderability, no stressing of circuit boards and less contamination of PCB surface.
e) SMT process is resistant to reflow soldering, resistant to rework.

8) Hybrid PCB (mixed material): Hybrid of RO4350B and FR-4 material can reduce signal loss
in high frequency application, and meet the development needs of communication technology.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
