12" Precision Auto Semiconductor Automatic Polishing Machine (Unipol-1202)

Price:	US $ 4600/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-Unipol-1202
Power:	400W
Timer:	0-99 Hours
Variable Speed:	0-80rpm
Rotating Shaft:	< 5micron
Warranty:	One Year
Type:	Tool Grinding Machine
Processing Object:	Gear
Controlling Mode:	Artificial
Automatic Grade:	Manual
Precision:	High Precision
Certification:	TUV

Product Description

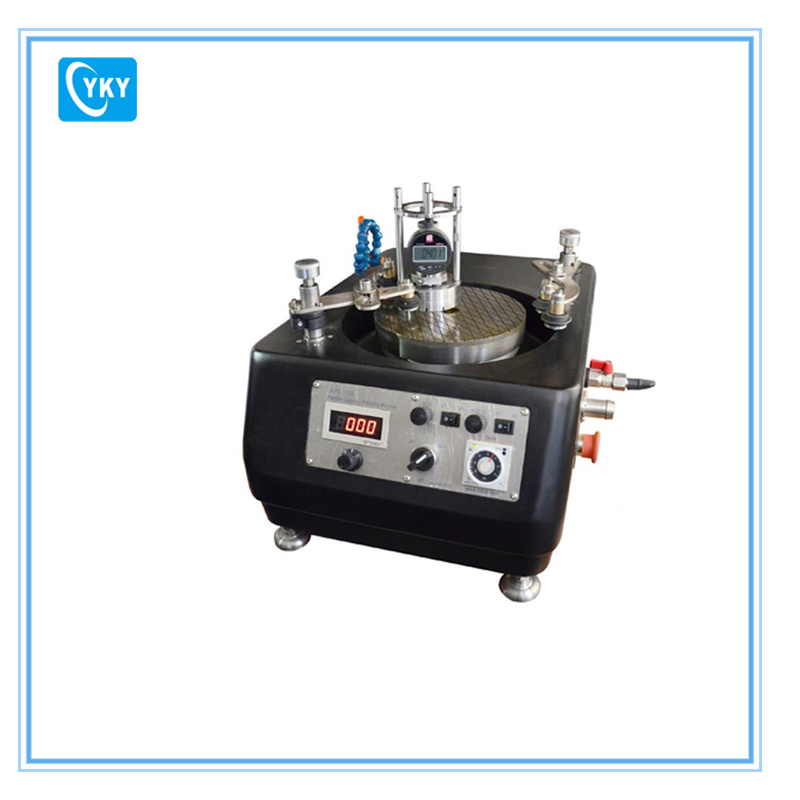

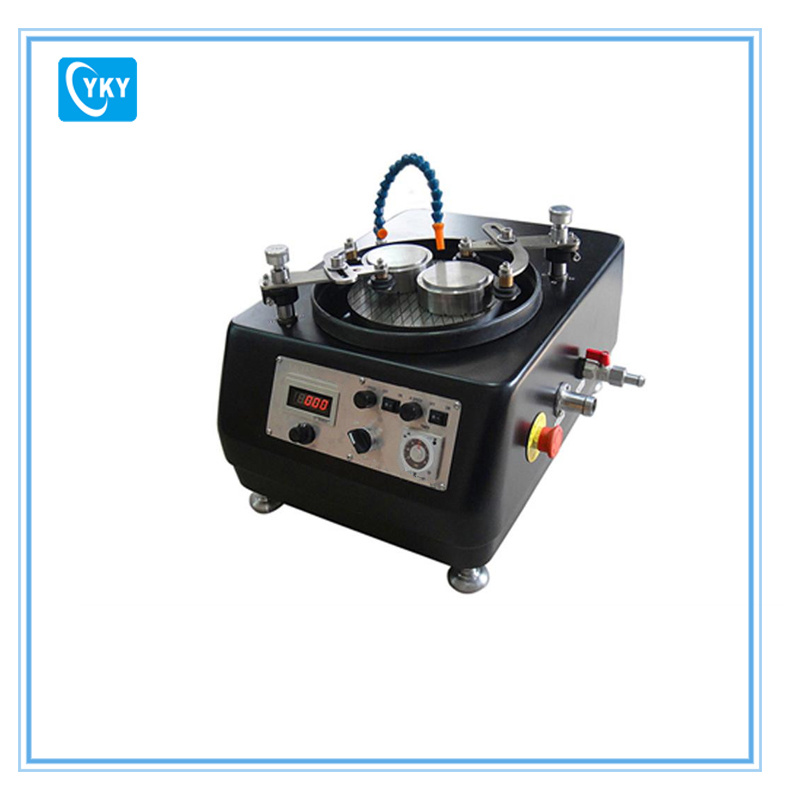

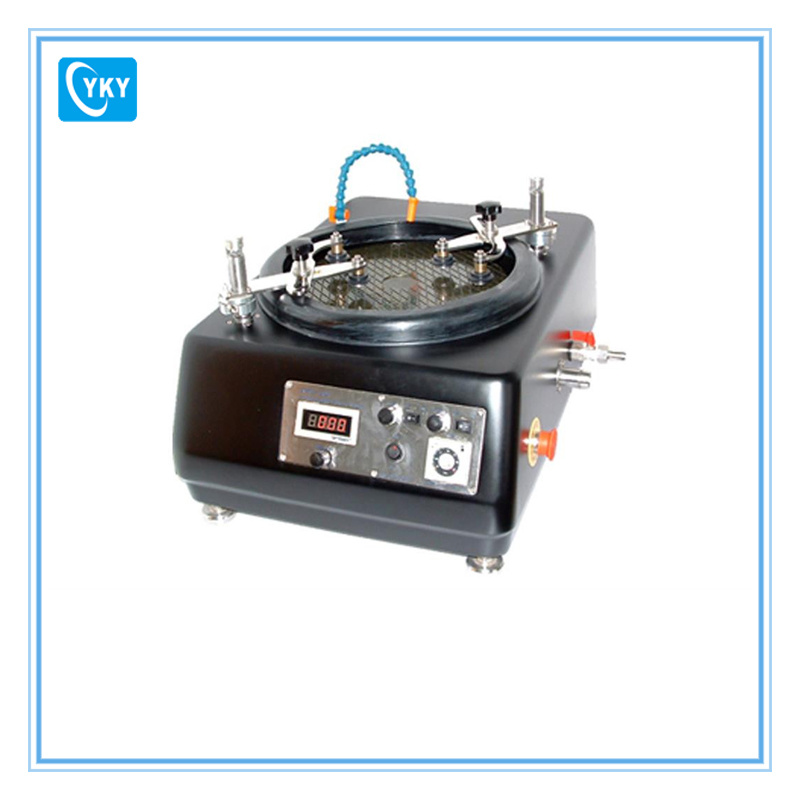

12" Precision Auto Lapping/Polishing Machine with Two 4" Work Stations - EQ-Unipol-1202
Introduction
UNIPOL-1202 machine is equipped with 12" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well.
Specification

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Features	One cast iron plate for lapping and one cast aluminum plate for polishing. Two rocking workstations with wafer holders and condition rings, which can be controlled independently for polishing 2 pcs of 4" wafers at the same time. Complete accessories are included for immediate use
Super-Flat 12" (300 mm) Diameter Lapping Plate	Flatness < 0.25 micron / inch²
Precision Rotating Shaft	Running Off < 5 micron
Heavy Duty Cast Aluminum Case with Bright Painting	Color : Black or White
Two Work Stations with 8° Rocking and adjustable speed	8" rocking with 0- 9 rocking / minute adjustable
Two Flat Sample Holders for Carrying < 4" Dia. Wafer	105 Dia. x 35 T mm
Two Condition Rings	120 O.D. x 110 I.D. x 32 T mm
Variable Speed of Master Plate with Digital Display	0 ~ 150 rpm
Adjustable Timer for Auto-Stop	0 - 99 hours
Motor	300 W high torque DC motor
Dimensions	700 L x 475 W x 300 H (mm)
Weight	154 lbs
Dimensions of shipment	40"x30"x26"
Weight of shipment	220 Lbs

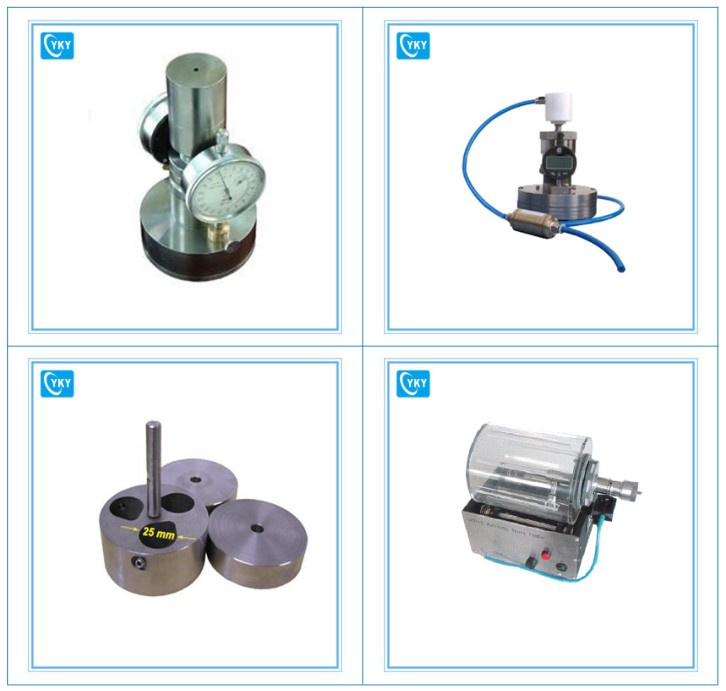

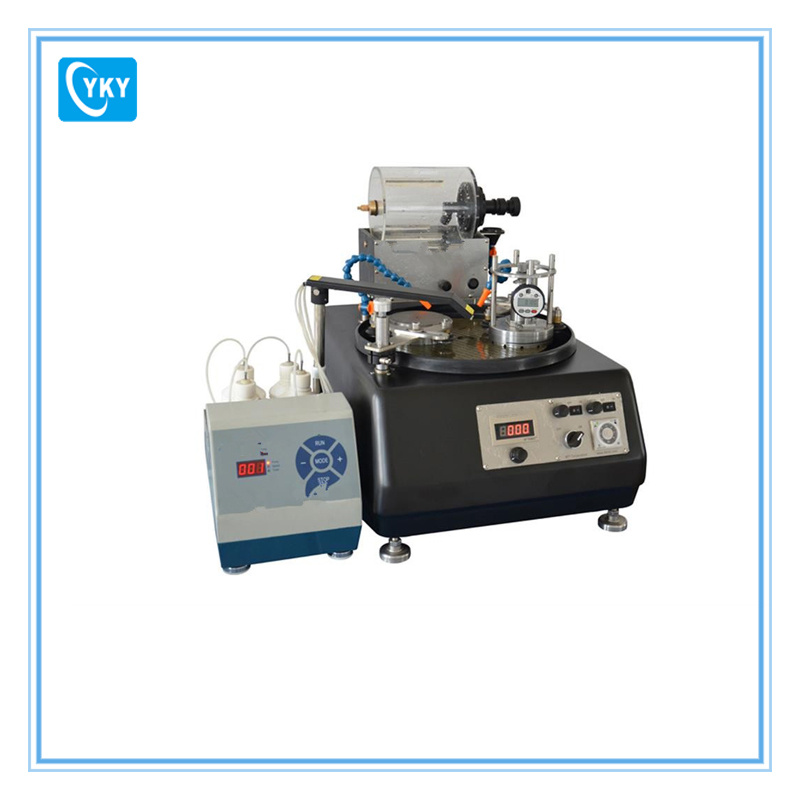

Optional Parts	SKZD-2 Automatic Slurry Feeder 2" Polishing Fixture for Precision / Automatic Thinning and Polishing
Compliance	CE Certified

Standard package

No.	Description	Qty
1	12" polyimide foam pad	1 pc
2	12" poromeric pad	1 pc
3	Power cord	1 pc
4	Sample holder	2 pcs
5	Wax	2 pcs
6	Condition ring	2pcs
7	Hex wrench & screwdriver	1 set
8	Fuse(10A)	2 pcs
9	12" iron plate	1 pc
10	12" Aluminum plate	1 pc
11	Input tube & output tube	1 pair
