2L 100W Plasma Cleaner for Semiconductor/ 13.56 MHz Plasma Cleaner

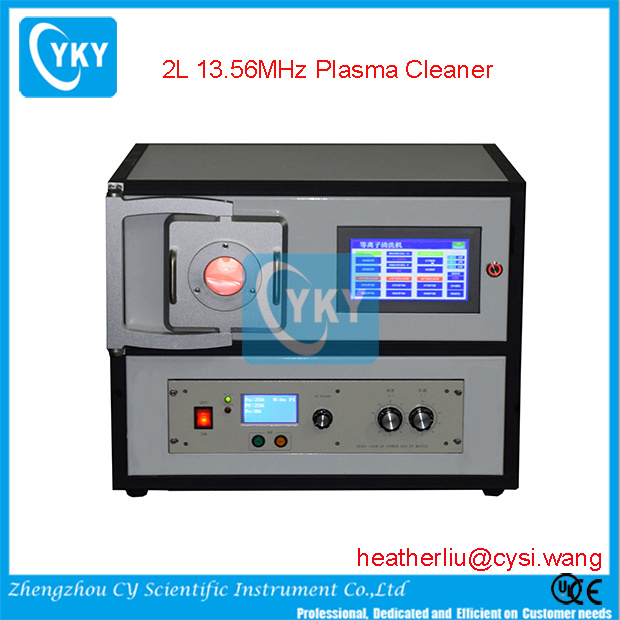

Name: 2L 100W Plasma Cleaner for Semiconductor/ 13.56 MHz Plasma Cleaner
Brand: all-electronics-online.com
SKU: 728308332
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	US $ 6800-8500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-P2L-B
Type:	Plasma Cleaner

Product Description

13.56MHz 2L Laboratory Plasma Cleaning Systme for Sale

Featrues of plasma cleaning system

1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed

Application of plasma cleaning equipment
1.Car industry: ignition coil engine oil seal film
2.Defense industry: Aerospace electrical connectors,Kevlar deal
3.Electronics industry: hard plastic parts, earphone, Cell phone cover
4.Medical industry: intravenous infusion, catheter treatment
5.Textile fiber,rubber and plastic industry and etc

parmaters of plasma cleaner
Power supply: AC220v, 50/ 60 HZ
Working current: Total working current not higher than 1.2A (Not include the vacuum pump)
RF power: 100W
RF frequency: 13.56MHz
Characteristic impedance: 50 Ohm, Automatic matching
Vacuum degree: 30Pa-100Pa
Gas flow: 10-100mL/ min( adjustable)
Process control: MCU automatic and manual mode
Inside chamber size: customized
Outside dimension: 440*390*200mm
Weight: 50kg
Vacuum chamber temperature: less than 65ºC
Cooling type: Forced cooling

Zhengzhou CY Scientific Instrument Co., Ltd. Materials Science and Technology Co., Ltd. is a high and new technology enterprise registered in Zhengzhou city of Henan province, mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. On the basis of sticking to independent innovation, the company absorbs extensively the advanced technology of excellent products at home and abroad. Meanwhile, the company studies, develops and manufactures various kinds of heating equipment and experimental instrument with consideration of our comprehensive national conditions. The company has solid technical force and forms a thorough research and development system by cooperating closely with a number of research institutes.
