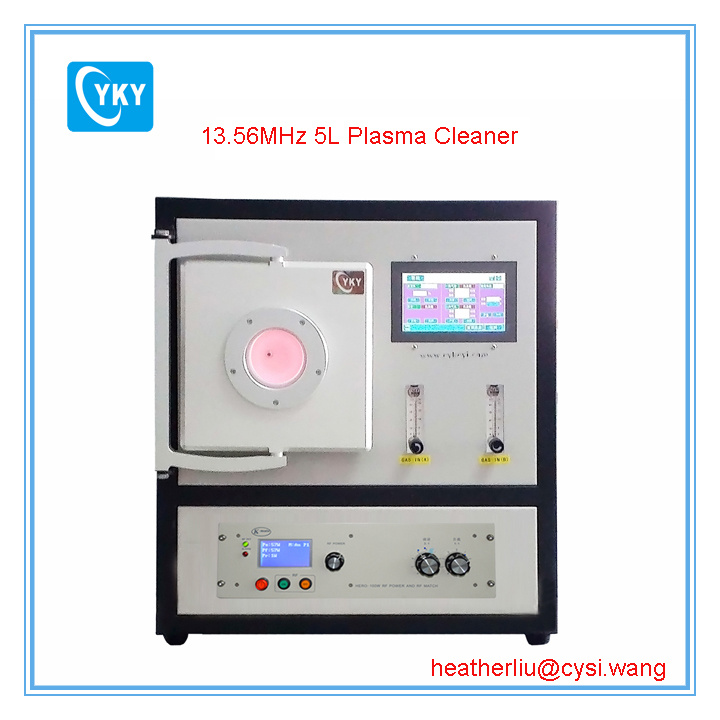

5L 100W Plasma Cleaner for Semiconductor/ 13.56 MHz Plasma Cleaner

Name: 5L 100W Plasma Cleaner for Semiconductor/ 13.56 MHz Plasma Cleaner
Brand: all-electronics-online.com
SKU: 728310262
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 9100-10800/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CY-P5L-B
Type:	Plasma Cleaner
Feature:	Low Pressure

Product Description

100W 5L High Efficiency Laboratory Plasma Cleaning System

Featrues of plasma cleaning system
1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.
2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;
3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.
4. Multifunctions: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;
5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid
6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording
7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.

Application of plasma cleaning system
1.Car industry: ignition coil engine oil seal film
2.Defense industry: Aerospace electrical connectors,Kevlar deal
3.Electronics industry: hard plastic parts, earphone, Cell phone cover
4.Medical industry: intravenous infusion, catheter treatment
5.Textile fiber,rubber and plastic industry and etc

Technical parmaters of plasma cleaner

Power supply	AC:115-230V,50/60Hz
Working current	Total working current not higher than1.2A (Not include the vacuum pump)
RF Power	100W
Radio frequency	13.56MHZ
Frequency offset	Less than 0.2KHz
Characteristic impedance	50 Ohm,Automatic matching
Vacuum degree	30-100Pa
Gas flow	10-100ml/min(Adjustable)
Process Control	MCU Automatic and manual mode
Cleaning time	1-6000 secds adjustable
Power supply	10%-100% Adjustable
Inside chamber size	Customized
Outside dimension	400390200mm
Weight	80Kg
Vacuum chamber temperature	Less than 65°C
Cooling type	Forced cooling
