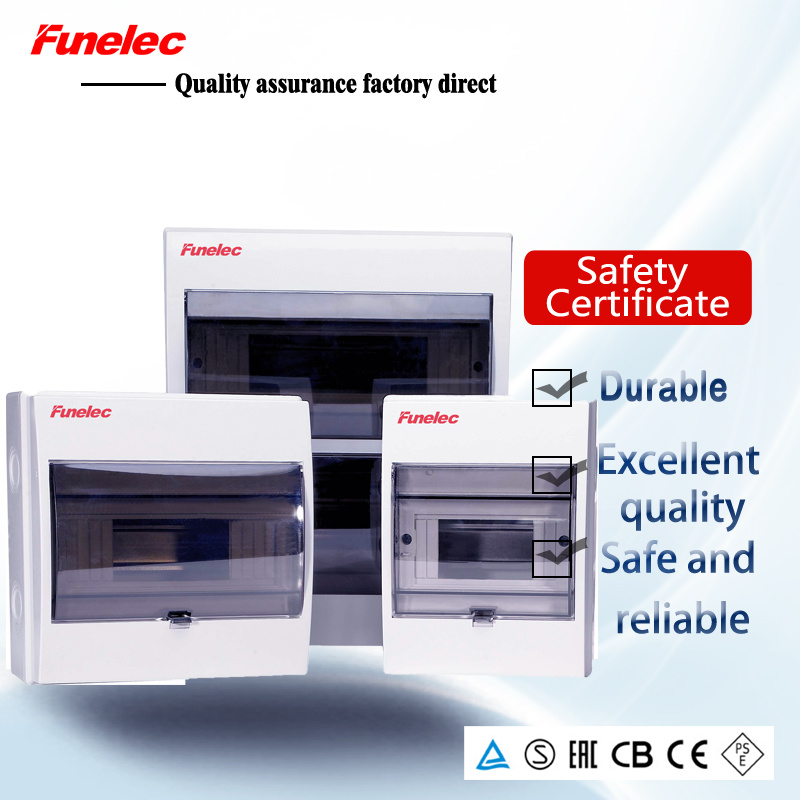

12 Way 12 Pole Surface Mounted Waterproof Modular Distribution Box

Prod Model:	FNDS2 Series/FNDF1 Series/FNDS1 Series
Color:	Transparent,White
Standard:	IEC60439
Protection Class:	II
Rated Voltage:	400V
Type:	Distribution Metering Box
Structure:	Protection
Size:	4-36ways
Shell Material:	ABS
Brand:	Funelec/OEM

Product Description

1.Description:

·The distribution box is widely used in low voltage distribution
networks for power supplying of consumers and commercial buildings
·Suitable for mounting of modular electric installation devices
·Available with neutral and earth terminal block
·With transparent plastic door in arc shape design
·Big range and professional design ensures specialized usage
·Degree of protection IP41 and IP56

Distribution Box FNDS2
Surface-mounted Moisture-proof DB(IP56)

Ways	Type Designation	Article No.	QNT/CTN(pcs)	G/N.W/CTN(kg)	MEAS(cm)
4ways 4ways 6ways 6ways 8ways 8ways 12ways 12ways 18ways 18ways 24ways 24ways	FNDS2-4T FNDS2-4N FNDS2-6T FNDS2-6N FNDS2-8T FNDS28N FNDS2-12T FNDS2-12N FNDS2-18T FNDS2-18N FNDS2-24T FNDS2-24N	FDS201 FDS202 FDS203 FDS204 FDS205 FDS206 FDS207 FDS208 FDS209 FDS210 FDS211 FDS212	20 20 20 20 20 20 12 12 8 8 8 8	10/9 10/9 12.5/11 12.5/11 14.5/12.5 14.5/12.5 13/11.5 13/11.5 17.5/16 17.5/16 17.5/16 17.5/16	54.5x27.5x46.5 54.5x27.5x46.5 53x35.5x45.5 53x35.5x45.5 54x45x45.5 54x45x45.5 45x32.5x56.5 45x32.5x56.5 49x43.5x40 49x43.5x40 59x44x36 59x44x36

Distribution Box FNDF1
Surface-mounted Moisture-proof DB(IP41)

Ways	Type Designation	Article No.	QNT/CTN(pcs)	G/N.W/CTN(kg)	MEAS(cm)
4ways 4ways 6ways 6ways 8ways 8ways 12ways 12ways 18ways 18ways 24ways 24ways 36ways 36ways	FNDF1-4T FNDF1-4N FNDF1-6T FNDF1-6N FNDF1-8T FNDF1-8N FNDF1-12T FNDF1-12N FNDF1-18T FNDF1-18N FNDF1-24T FNDF1-24N FNDF1-36T FNDF1-36N	FDF101 FDF102 FDF103 FDF104 FDF105 FDF106 FDF107 FDF108 FDF109 FDF110 FDF111 FDF112 FDF113 FDF114	20 20 20 20 20 20 10 10 10 10 10 10 5 5	9.8/8.5 10/8 12/10 12/10 14/12 14/12 9/7.5 9/7.5 12/10 12/10 12/10 12/10 11/10.5 11.5/9.5	53x29.5x47 53x29.5x47 53x37.5x47 53x37.5x47 53x46.5x44 53x46.5x44 53x29.5x47 53x29.5x47 56.5x41.5x52.5 56.5x41.5x52.5 54x36.5x62.5 54x36.5x62.5 52.5x36x57 52.5x36x57

Distribution Box FNDS1
Surface-mounted Moisture-proof DB(IP41)

Ways	Type Designation	Article No.	QNT/CTN(pcs)	G/N.W/CTN(kg)	MEAS(cm)
4ways 4ways 6ways 6ways 8ways 8ways 12ways 12ways 18ways 18ways 24ways 24ways 36ways 36way	FNDS1-4T FNDS1-4N FNDS1-6T FNDS1-6N FNDS1-8T FNDS1-8N FNDS1-12T FNDS1-12N FNDS1-18T FNDS1-18N FNDS1-24T FNDS1-24N FNDS1-36T FNDS1-36N	FDS101 FDS102 FDS103 FDS104 FDS105 FDS106 FDS107 FDS108 FDS109 FDS110 FDS111 FDS112 FDS113 FDS114	20 20 20 20 20 20 10 10 10 10 10 10 5 5	10/9 10/9 12/11 12/11 14/13 14/13 9/8 9/8 12/11 12/11 18/17 18/17 10/9 10/9	52x24x42.5 52x24x42.5 52x31.5x42.5 52x31.5x42.5 52x39x43 52x39x43 52x27.5x43 52x27.5x43 54x38x47 54x38x47 55x34x56.5 55x34x56.5 49x32.5x59.5 49x32.5x59.5

Technical Data

·Cable entry design: free space available for hole-digging on both
cover and base of 2,3 way product

·Sufficient working space for mounting and wiring switchgears

·Sufficient working space behind the DIN rail

·Cover suitable for transparent and non-transparent

·Cover also suitable for inverse fixation

mounting of terminal support above or below

·Knock-out hole is available to full sides of the base


Electrical

Design according to	IEC60439
Degree of protection	IP41 according to E60529
	IP56 according to E60529
Protection class	II
Rated voltage	400V AC / 50HZ

Mechanical

Material:	ABS with fire resistant /PS material
Enclosure color	white
Door	PC/ABS w ith fire resistant
color	transparent / white
Device support rail	DIN rail 35 7.5mm
Steel sheet	acc.to IEC/EN 60715

Dimensions of FNDS2 DB cover

Ways	Dimensions(mm)
	L	W	H
4 ways	126	215	100
6 ways	163	215	100
8 ways	217	215	100
12 ways	272	215	100
18 ways	380	235	100
24 ways	285	340	100

Dimensions of FNDF1 DB cover

Ways	Dimensions(mm)
	L	W	B	H
4 ways	136	222	86	27
6 ways	172	222	122	27
8 ways	208	222	158	27
12 ways	280	222	230	27
18 ways	398	252	338	27
24 ways	300	345	232	27
36 ways	341	503	265	27

Dimensions of FNDS1 DB cover

Ways	Dimensions(mm)
	L	W	H
4 ways	112	210	100
6 ways	148	210	100
8 ways	184	210	100
12 ways	256	210	100
18 ways	364	222	100
24 ways	270	325	100
36 ways	305	473	100
