12 Way-15A Terminal Block-Connector Strip-Wire Power Cable Joiner

Name: 12 Way-15A Terminal Block-Connector Strip-Wire Power Cable Joiner
Brand: all-electronics-online.com
SKU: 715589305
Availability: InStock
Rating: 5 (125 reviews)

Price:	US $ 0.11/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	15A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Jwl

Product Description

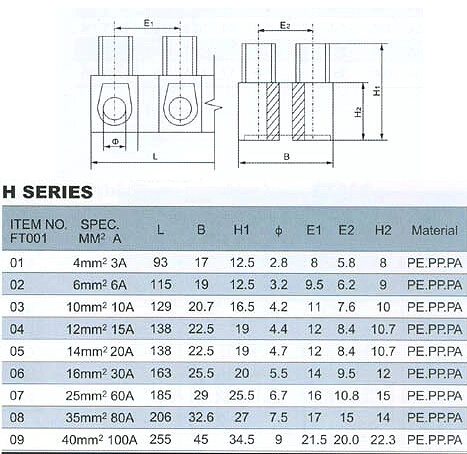

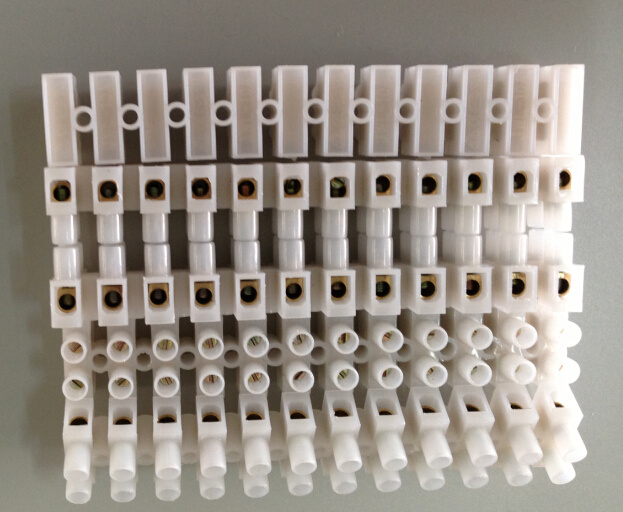

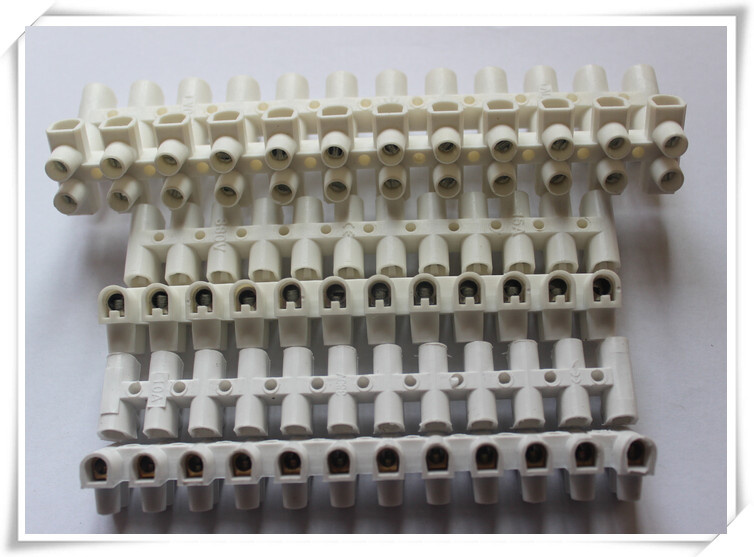

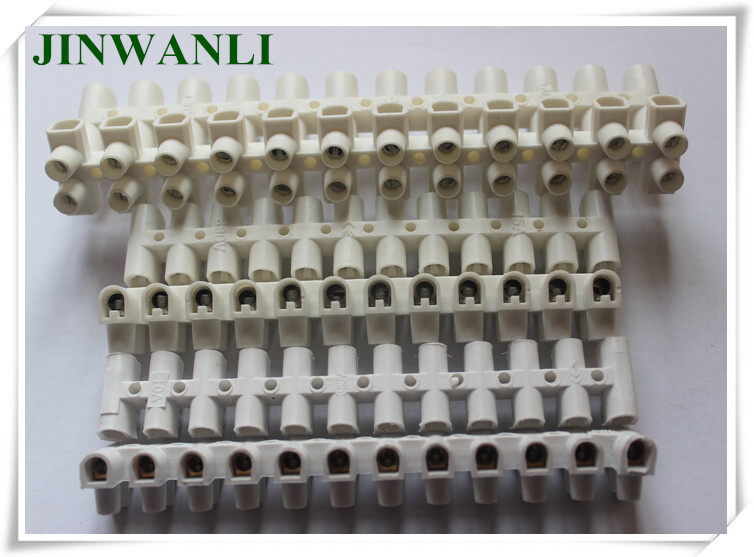

12 ways terminal block
* Type: Feed Through (H,U,W)
* Current: From 3A to 100A
* Voltage: 250 - 450V

PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working Temperature: - 40° C to 65° C, short time is 80° C.

PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force. Working Temperature: - 30° C to 110° C, short time is 140° C

PA, Polyamide 6/6, 94V-2 grade. Inflaming retarding, good resist dissolve, good bounce impact force, Working Temperature: - 35° C to 115° C, short time is 180° C.
Fastening part: Brass plated nickel, screw is Iron plated zinc.

Certificate: CE, RoHS, CQC
Color: Nature, White or black or AS YOUR REQUIREMENT
Cable Range: 2.5MM-40MM

CURRENT	CARTON SIZE	GW/NW	PCS/CARTON
3AMP	39X18.5X30.5	18-17KG	1200PCS
5AMP	37X22X28	18-17	1200
6AMP	47.5X22X28.5	24-23	1000
10AMP	54X27X25.5	24-23	800
15AMP	48X28X21	20-19	400
20AMP	51X26.5X15.5	17-16	500
30AMP	40X35X21	18-17	300
60AMP	40X32X26	23-22	200
80AMP	34X21X31	15-14	120
100AMP	36.5X23.5X29.5	19-18	100
150AMP	42X27X27	26-25	80

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
