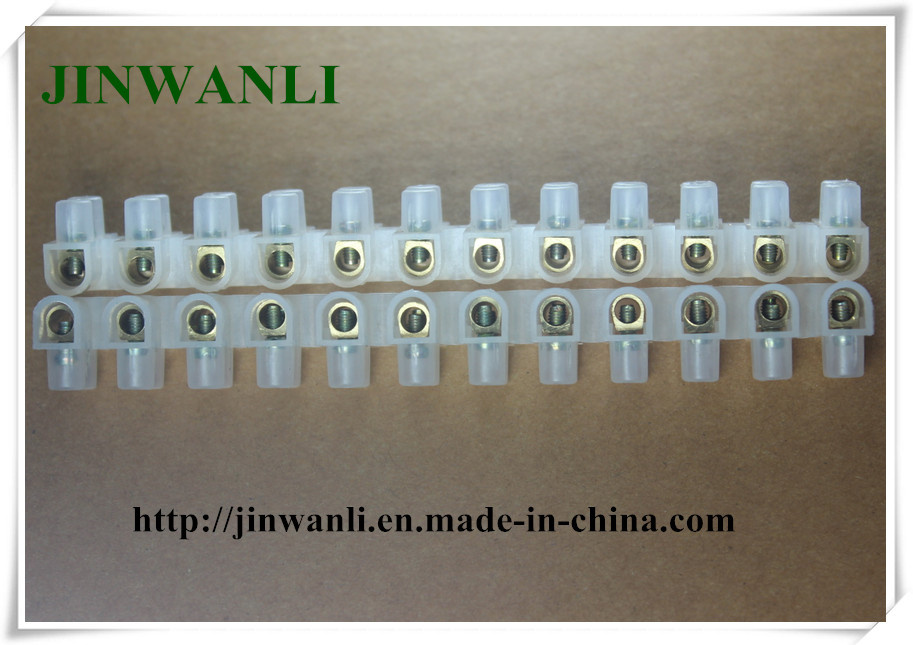

12 Way Strip Connectors Terminal Block 5AMP, 15AMP, 30AMP

Name: 12 Way Strip Connectors Terminal Block 5AMP, 15AMP, 30AMP
Brand: all-electronics-online.com
SKU: 715589445
Availability: InStock
Rating: 4.9 (73 reviews)

Price:	US $ 0.12-0.13/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Cable
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed
Brand:	Jwl

Product Description

Type: Feed Through H, U, F
Connecting terminal of JWL-3A, 5A, 6A, 10A, 15A, 20A, 30A, 60A, 80A, 100A, 150A

Material: PE, PP, PA
Brass insert and Steel screw
Voltage: 250V~400V

Cable Range(Cable wire): 2.5MM~40MM
Working Temperature: -40° To 110°
Color: Natural color and black color

Certificate: CE
Number of Contacts: 1-12 pole
Conductor Size: 11-20AWG

H. F. W Series terminal connectors are used in the circuit of AC. 50Hz or 60Hz, Voltage up to 660V or DC. Voltage up to 440V current from 3A to 150A, for connecting the round copper conductors.

Item no.	L	W	H1	H2	Φ	E1	E2	screw size	material
Item no.	mm							screw size	material
3A 4mm 2	93.2	17	13.6	7.7	3	8	5.8	M2.5 x4	PE PP PA
6A 6mm 2	114.5	18.8	15.3	9	3.2	10	7.6	M3 x 5	PE PP PA
10A 10mm 2	128.8	20.9	16	9.6	4.2	11	8.5	M3 x 6	PE PP PA
15A 12mm 2	136.8	22.6	18.8	10.5	4.5	12	10	M4 x 6	PE PP PA
30A 16mm 2	164.5	25.5	20	12	5.6	15	10.5	M4 x 7	PE PP PA
60A 25mm 2	193	30	26	15.5	6.6	16.3	12.5	M4 x 7	PE PP PA
80A 35mm 2	202	35.7	30	19	7.8	17.3	13.3	M5 x 12	PE PP PA

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
