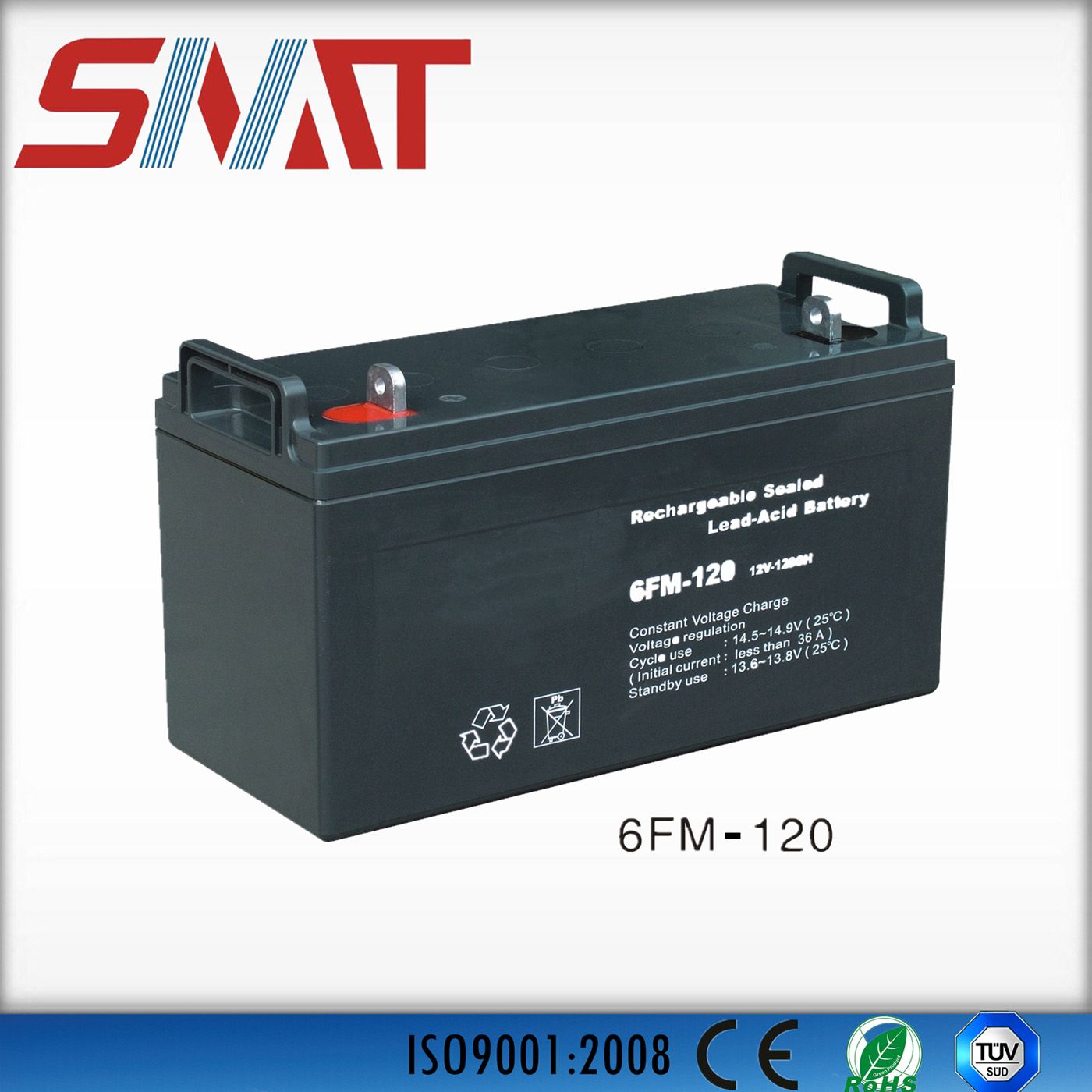

120ah Lead-Acid Battery for Solar Power System

Prod Model:	6FM-120
N.W.:	36kg
Company:	Manufacturer&Trading
OEM/ODM:	Provide
Sample Order:	Accept
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

PRODUCT OVERVIEW:
Valve-controlled maintenance-free lead-acid batteries are special supporting products for solar power systems, wind power generation systems, uninterruptible power supplies (UPS), inverters, EPS, etc.

MAIN FEATURES:
+No maintenance:
With high sealed reaction efficiency based on a unique technology, the product needs no maintenance by means of water or acid supplementation in its whole life.

+High safety and reliability
It is provided with a full automatic safety valve to avoid damage as a result of an abnormal internal pressure caused by the gas generated in process such as charge. In normal floating charge, it emits neither electrolyte nor acid mist because it is a completely sealed battery. The battery pack will be safer if used with a patented battery tray.

+Longer life
The corrosion-resistant multi-element alloy grid including elements such as calcium, lead and tin, and the ABS corrosion-resistant shell, both accurately designed by computer, have extremely high sealed reaction efficiency, thus guaranteeing a longer battery life.

+Low self discharge rate
A multiple-elemennt alloy including special calcium and lead is used, and the battery separator, the electrolyte and the impurities generated in production procedures are strictly controlled. Thus, the battery not charged within six months can be used normally at 20ºC.

+Great conductivity
With copper-core silvered terminals and special design, the product has extremely great electrical performance.

+Great adaptability to environment
The product adapts to severe climates and can even be used at an ambient temperauture of -25ºC to 50ºC.

+Great directionality
The product has high sealed reation efficiency, so it can be used normally and has no leakage when placed vertically or horizontally.

+Environment friendliness
It is quiet and generates no pollutants, so it can be put in the same room with articles such as electronic instruments and the battery room needs no corrosion-proof actions against acids.

TECHNICAL INDEXES:

Technical parameter of the 38AH Sealed lead acid battery
Model	120AH
Overall dimensions(L*W*H)	406mm*173mm*208mm
Net weight	36KG
Package	Carton
Voltage	12V
Internal resistance of the battery	fully charged (25ºC)	≤10mΩ
The battery capacity under different temperature	60ºC	104%
	25ºC	100%
	0ºC	95%
	-50ºC	86%
Different hourly rate capacity	10hr	100%C10
	30hr	110%C10
Battery storage capacity	one month(25ºC)	95%
	three months(25ºC	90%
	six months(25ºC)	88%
Biggest charging current	2.5C10 (A)
Limiting pressure of charging voltage	Charging Voltage of equalized	14.4V/12V-25mV/C
	Charging Voltage of floating	13.5V/12V-20mV/C
