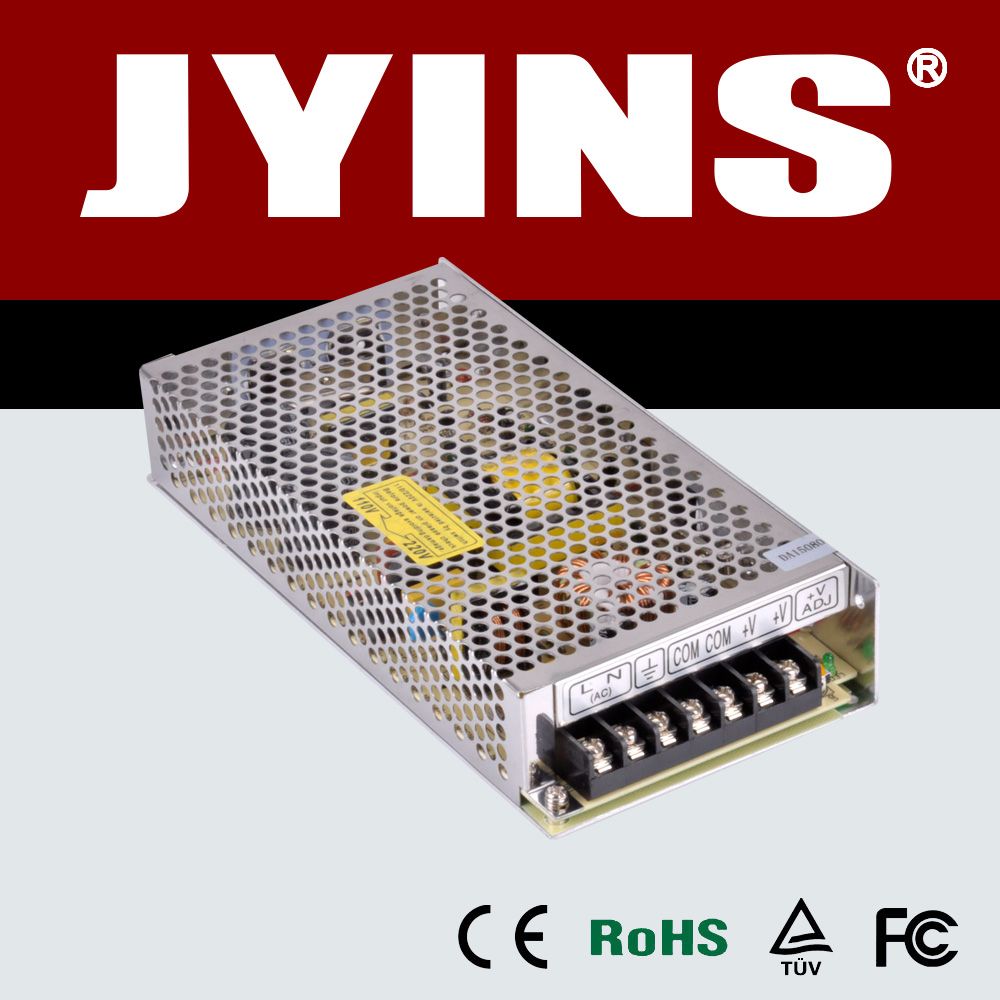

120W 12V 10A DC Switching Power Supply (S-120-12)

120W 12V 10A DC Switching Power Supply (S-120-12)
Price: US $ 4-7/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: S-120-12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Protection: IP66
Output Current: 10A
OEM: Accepted
Warranty Time: 18 Months
Output Type: Single
Warranty: 2 Years
Output Power: 101 - 200W
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: RoHS
Brand: Jyins

Product Description

120w 12v 10a dc switching power supply (S-120-12)


        Features:·AC input voltage range selected by switch
        ·Small volume,low weight,high efficiency
        ·Protections:short circuit/over load
        ·cooling by free air convection
        ·LED indicator for power on
        ·100% full load burn-in test
        ·2 Years warranty

         Output Frequency: 47~63HZ



Packaging & Delivery
Packaging Details:Standard Export Carton
Delivery Detail:Fast delivey

Standards and certifications:
The Jingying series of swiching power supply is produced on the standard of GB/T7676-1998, and dc swiching power supply is on the standard of GB/T22264-2008. Its safety performance is on the standard of GB4793 and IEC61010. The dial scale line and the pointer is designed to meet the German standards of DIN43790 and DIN43802.  All the products of Jingying meters Company have gone through the national CE certification, and have got ISO: 9001 certification.

Model / Specification

S-120-12

S-120-15

S-120-24

S-120-48

DC output voltage

12V

15V

24V

48V

Output voltage error (Note2)

±1%

±1%

±1%

±1%

Rated output current

10A

8A

5A

2.5A

Output current rage

0-10A

0-8A

0-5A

0-2.5A

Wave and noise(Note3)

120mVp-p

125mVp-p

150mVp-p

150mVp-p

Inlet stability(Note4)

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note5)

±0.5%

±0.5%

±0.5%

±0.5%

DC output power

120W

120W

120W

120W

Efficiency

80%

81%

83%

84%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range

88~132VAC/ 176~264VACselected by switch 47~63Hz;255~370VDC

Input current

2.6A/115V 1.3A/230V

AC impulse current

Cold-start current 30A/115V 60A/230V

Leakage current

<1mA/240VAC

Overload protection

105%~150%Type:TOLDBACK Reset: auto recovery

Over-voltage protection

^^

High-temperature protection

^^

Temperature coefficient

±0.03% °C (0~50 °C )

Setup rise hold up time

200ms,50ms,20ms

Vibration

10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

Input and output interval:1.5KvAC Input and enclosure:1.5KvAC Output and enclosure:0.5KvAC

Isolation resistance

Input and output interval:Input and enclosure,Output and enclosure:500VDC/100M Ω

Working temperature and humidity

-10 °C ~+60 °C ,20%~90%RH

Store temperature and humidity

-20 °C ~+85 °C ,10%~95RH

Overall dimension

199*98*38mm

Weight

0.66Kgs

Safety standards

UL1012 TUV 60950(IEC950,UL1950)

EMC standards

CLSPR22(55022),IEC801-2,3,4,IEC555-2
