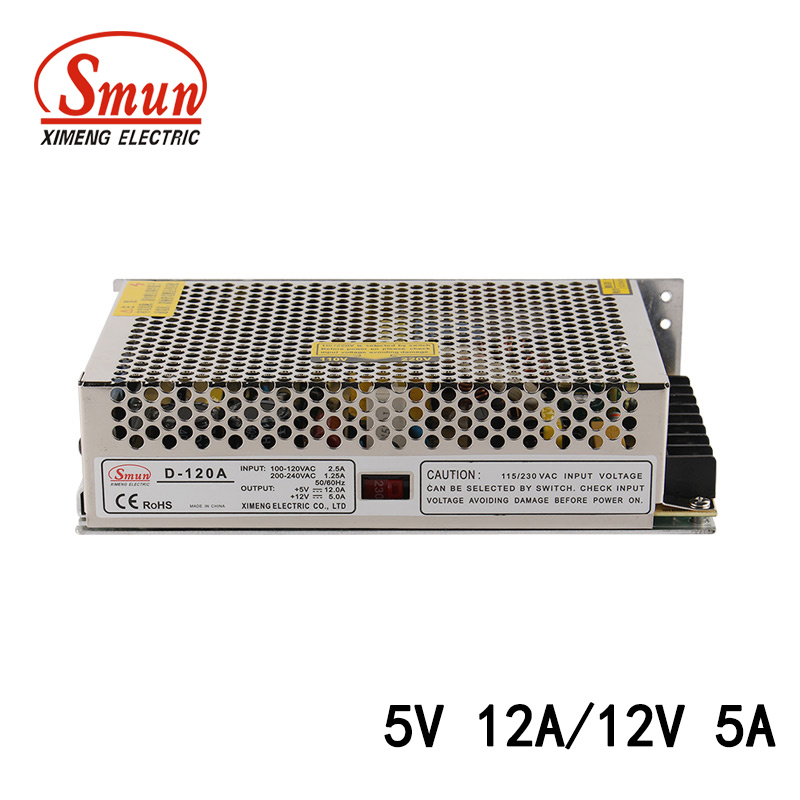

120W 5V 12A/12V 5A Dual Output Switching Power Supply SMPS

120W 5V 12A/12V 5A Dual Output Switching Power Supply SMPS
Price: US $ 12-16/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: D-120A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input: 85-132VAC 170-264VAC 240-370VDC
Output Voltage1: 5VDC 12A / 12V 5A
Power: 120W
Size: 199*110*50mm
Weight: 0.85kg
Package: 20PCS/17kg
Working Temperature: -10~+60 Degree C,20%~90%Rh
Safety Standard: En60950 UL60950 GB4943
Customized: Available
Efficiency: 78%
Output Type: Dual
Warranty: 2 Years
Output Power: 101 - 200W
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: ISO
Input Voltage: 85-132VAC/170-264VAC/47-63Hz/240-370VDC
Brand: Smun

Product Description

Dual output switching power supply

Brief description and advantage:
100% full load burn-in test
Protections: Short circuit, over load, over current, over temperature
High efficiency, low ripple noise
2 years warranty
D-120W  Dual  output  switching  power  supply

Model  NO.

OUTPUT

Tolerance

range

efficiency
D-120A5V  , 2-12A
12V, 0.5-5A
± 2%
± 6%
60mV
120mV
78%

D-120B5V  , 2-10A
24V, 0.4-4A
± 2%
± 7%
60mV
150mV
80%

D-120C12V
24V
± 2%
± 7%
60mV
150mV
80%

AC  input  voltage  range85-132VAC/170-264VAC  47-63HZ  240-370VDC
input  current2.5A/115V  1.25/230V
AC  inrush  currentCold-start  current  35A
Leakage  current< 0.5mA/240VAC
Over  load  protection105-150%cutdown  output,   auto-recovery
set  up,   rise, hold  up  time:200mS  100ms  30ms
withstand  voltage:I/P-O/P: 1.5KVAC  1Minutes
I/P-FG: 1.5KVAC  1MInutes
O/P-FG: 0.5VAC  1minutes
working  temperature-10~+60° C
weight/packing:0.85kg  20PCS/17KG
Size199*110*50M  M
certificateCE    ISO9000  ROHS
Warranty  year2  years
ProtectionsShort  circuit  /  Over  load  /  Over  voltage
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
