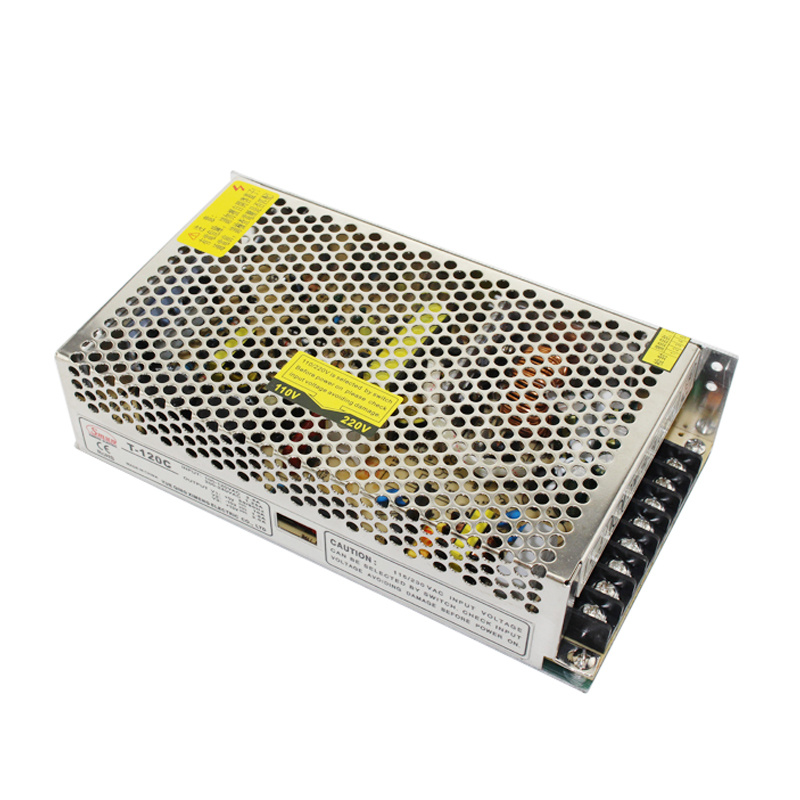

| Prod Model: |
T-120C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
120W |
| Input: |
85-132VAC 170-260VAC 240-370VDC |
| Output: |
5V10A / -15V1.5A / 15V3a |
| Size: |
199*110*50mm |
| Weight: |
0.8kg |
| Package: |
20PCS/16kg |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Triple |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Brand: |
Smun |
Product Description
Our company is a high-tech company specialized in designing. R&D. Production and sale, The products"Switching Power Supply" are with the characteristics of the low price, High efficiency, high reliability, long lifetime and so on. Our products are widely used In industrial automation field, indoor and outdoor LED lighting, LED lighting projects,
Communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded Product to replace traditional controlling transformer.
The design of this series of products is in accordance with such international standards
As American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD.
Our Switching Supply have many series:
Single output Switching Power Power Supply
Dual output Switching Power Supply
Triple output Switching Power Supply
Quad output Switching Power Supply
DIN-rail Switching Power Supply
LED driver Switching Power Supply
DC Power Supply Series
Also we can design and produce according to your need.
Welcome to contact us anytime.
| Model | T-120C | T-120D |
| Output | DC Voltage | Ch1:5v | Ch2:15v | Ch1:-15v | Ch2:5v | Ch1:12v | Ch2:24v |
| Voltage tolerance | ±2.0% | ±6.0% | ±6.0% | ±2.0% | ±6.0% | ±6.0% |
| Rated Current | 2-10A | 0.5-1.5A | 0.2-3A | 2-10A | 0.5-1.5A | 0.2-2A |
| Related Power | 120w | 120w |
| Wave&Noise | 80mVp-p | 120mVp-p | 80mVp-p | 150mVp-p | 120mVp-p | 150mVp-p |
| DC Voltage ADJ range | Ch1:-9%~+10% |
| Set up,rise,hold up time | 800ms 20ms 20ms |
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ 120-370VDC |
| AC Current | 2.5A/115VAC 1.25A/230VAC |
| Efficiency | 77% | 77% |
| AC inrush current | Cold start current 30A/115V 60A /230VAC |
| Leakage current | <3.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | Ch2 :115%~135% |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L199*W110*H50mm |
| Package | 0.9kg, 20pcs/18kg |
| Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 degree of ambient temperature. |
| 2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. |
| 3.Tolerance: includes set up tolerance, line regulation and load regulation. |
