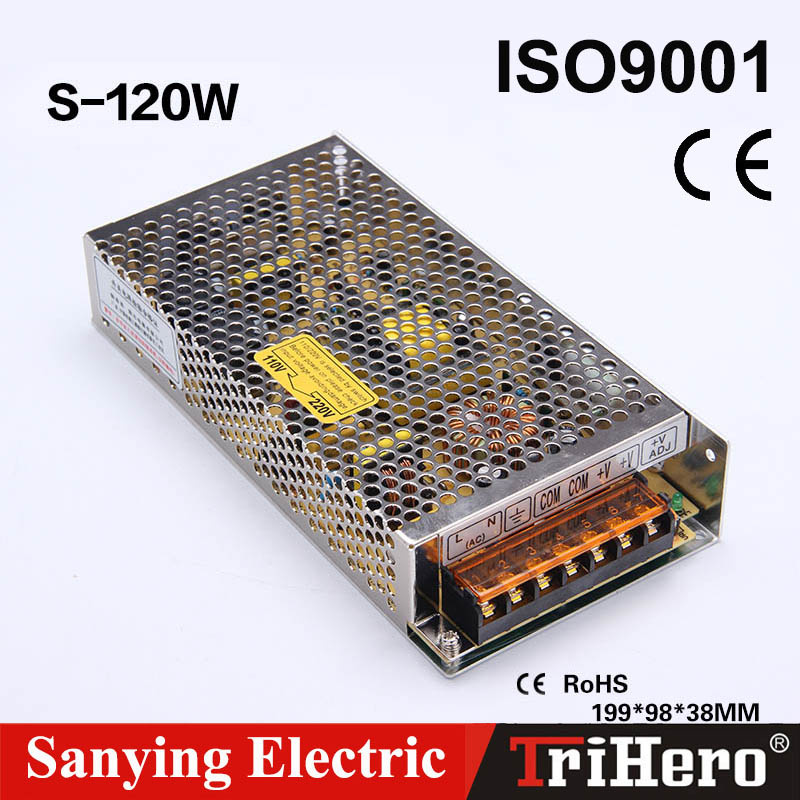

120W Single Output Switching Power Supply (SMPS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Single Output: |
120W |
| Input Voltage Range: |
110/220VAC |
| DC Output: |
12V 10A,15V 8A,24V 5A,48V 2.5A |
| Dimension: |
199X98X38m |
| Weight: |
0.63kg |
| Output Type: |
Single |
| Warranty: |
>2 Years |
| Output Power: |
101 - 200W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Trihero/OEM |
Product Description
Single Output Switching Power Supply (SMPS) (S-120)Features:- Low price, high reliability
- 105 ºC output capacitors
- Global applicable input voltage AC
- Efficiency, low temperature
- Soft start current, effectively reduce the AC input impact
- Small size, light weight
- 100% full load and machine test
- Inside pack EMI filters, ripple minimum
|
Specifications:| model | S-120-3 | S-120-5 | S-120-7.5 | S-120-12 | S-120-15 | S-120-24 | S-120-27 | S-120-48 |
Dc output voltage | 3V | 5V | 7.5V | 12V | 15V | 24V | 27V | 48V |
Output voltage tolerance | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% |
Rated output current | 22A | 22A | 16A | 10A | 8A | 5A | 4.4A | 2.2A |
Output current range | 0-20A | 0-20A | 0-13.6A | 0-8.5A | 0-6.7A | 0-4.5A | 0-3.7A | 0-2A |
Ripple and the noise | 100mVp-p | 75mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
Into line stability | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
Load stability | ±0.5% | ±1% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% |
Dc power output | 66W | 120W | 120W | 120W | 120W | 120W | 119W | 120W |
efficiency | 70% | 78% | 80% | 81% | 81% | 84% | 84% | 84% |
Dc voltage adjustable scope | 2.85-3.3V | 4.75-5.5V | 6.75-8.25V | 10.8-13.2V | 13.5-16.5V | 21.6-26.4V | 26-32V | 43.2-52.8V |
Input voltage range | 85~132VAC/180~264VAC Switch choice
47~63Hz;255-370VDC |
Input current | 2.4A/115V 1.2A/230V |
Impulse current | Cold start current
30A/115V 60A/230V |
Leakage current | <1mA/240VAC |
Overload protection | Type: cut off output automatic reset: recovery |
Overvoltage protection | ... |
High temperature protection | ... |
Temperature coefficient | ±0.03%ºC(0~50ºC) |
Start, rise, keep time | 200ms,100ms,30ms |
Vibrate resistance | 10~500Hz,2G 10min./1 cycle time, 60 points, the axis |
Compression sex
| Input/output: 1.5 KVAC, between input shell: 1.5 KVAC, output shell: 0.5 KVAC |
Isolating resistor | Between the input and output, the input and output and the shell, shell
500VAC/100M Ohms |
Working temperature, humidity | -10ºC~+60ºC,20%~90%RH |
Storage temperature, temperature | -20ºC~+85ºC,10%~95RH |
Shape dimension | 199*98*38mm |
weight | 0.66Kgs |
Safety standards | Meet the UL1012 requirements |
EMC standard | Meet the FCC part 15 J condition grade B |
Note: 1, the above parameters test conditions for: 230 VAC input, rated load, 25 ºC, humidity 70% RH.
2, tolerance: include setting tolerance, the line stability, load stability (note 5).
3, ripple test: 20 MHz with A12 "twisted pair, the interrupt with 0.1 uF and 47 uF capacitor short circuit.
4, into line voltage stability test: full load into line voltage to the lowest highest voltage.
5, load stability test: the load from 0% to 100%. |
