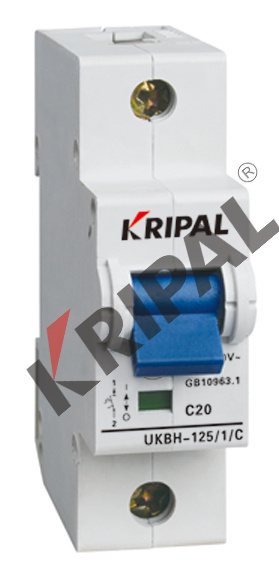

125A 25ka Mini Circuit Breaker

Prod Model:	UKBH-125
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificates:	VDE Cb CE CCC
Rated Breaking Capacity:	25ka
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Certification:	CE
Operation:	Manual Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker
Structure:	Moulded Case Circuit Breaker

Product Description

Mini Circuit Breaker Switch

Electrical Specification:
A. Number of Poles: 1P, 2P, 3P, 3P+N, 4P
B. Rated current(A): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
C. Voltage (V): 230/400; 50/60Hz
D. Rated breaking capacity (KA): 25
E. Working environment: -5 to +40
F. Protection grade: IP40 after installing
G. Life: Not less of 8000 times switching operation

Mechanical Parameter:
A. The length of exposed: 45mm
B. Enclosure height: 90mm
C. Enclosure width: 27mm per pole
D. Installation Method: The standard IEC 35mm rail
E. Terminal manner: Terminal connection of exaltation
F. Terminal block 2.5-50mm

Characteristic Performance:
A. Extremely high breaking capacity and current limiting characteristic
B. With contactor condition indicator
C. With specific-purpose accessories
