| Prod Model: |
BV |
| Voltage: |
450/750V |
| Rated Temperature: |
65~75 |
| Delivery Time: |
No More Than 30days |
| Length: |
as Your Request |
| Weight: |
Depends on Your Requirement |
| Core: |
Solid and Stranded Type |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Household, Instrument and Lighting etc |
| Conductor Material: |
Copper |
| Sheath Material: |
PVC, PE |
| Insulation Material: |
PVC, PE |
| Certification: |
SGS |
| Brand: |
Hua Hao |
Product Description

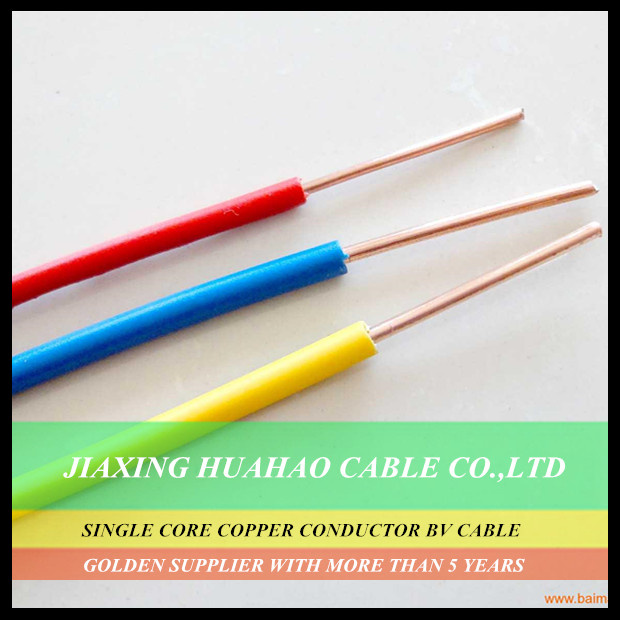

BV cable for Instrument & Lighting with Voltage 450V/750V
| Model | Rated Voltage | Normal area (mm) | Overall diameter (mm) | Weight (KG) | Conductor Resistance rate Not more than at 20 centigrade (Ω/km) | Wire core structure Cores/Diameters (mm) |
| BV | 300/500V | 0.5 | 2.4 | 8.5 | 36.0 | 1/0.80 |
| BV | 300/500V | 0.75(A) | 2.6 | 11.1 | 24.5 | 1/0.97 |
| BV | 300/500V | 0.75(B) | 2.8 | 12.0 | 24.5 | 7/0.37 |
| BV | 300/500V | 1.0(A) | 2.8 | 13.9 | 18.1 | 1/1.13 |
| BV | 300/500V | 1.0(B) | 3.0 | 15.0 | 18.1 | 7/0.43 |
| BV | 450/750V | 1.5(A) | 3.3 | 20.3 | 12.1 | 1/1.38 |
| BV | 450/750V | 1.5(B) | 3.5 | 21.6 | 12.1 | 7/0.52 |
| BV | 450/750V | 2.5(A) | 3.9 | 31.6 | 7.41 | 1/1.78 |
| BV | 450/750V | 2.5(B) | 4.2 | 34.8 | 7.41 | 7/0.68 |
| BV | 450/750V | 4(A) | 4.4 | 47.1 | 4.61 | 1/2.76 |
| BV | 450/750V | 4(B) | 4.8 | 50.3 | 4.61 | 7/1.04 |
| BV | 450/750V | 6(A) | 4.9 | 67.0 | 3.08 | 7/1.35 |
| BV | 450/750V | 6(B) | 5.4 | 71.2 | 3.08 | 7/1.70 |
| BV | 450/750V | 10 | 7.0 | 119 | 1.83 | 7/2.14 |
| BV | 450/750V | 16 | 8.0 | 179 | 1.15 | 7/2.52 |
| BV | 450/750V | 25 | 10 | 281 | 0.727 | 19/7.18 |
| BV | 450/750V | 35 | 11.5 | 381 | 0.524 | 19/2.14 |
| BVR | 450/750V | 2.5 | 4.2 | 34.7 | 7.41 | 19/0.41 |
| BVR | 450/750V | 4 | 4.8 | 51.4 | 4.61 | 19/0.52 |
| BVR | 450/750V | 6 | 5.6 | 73.6 | 3.08 | 19/0.64 |
| BVR | 450/750V | 10 | 7.6 | 129 | 1.83 | 49/0.52 |
| BVR | 450/750V | 16 | 8.8 | 186 | 1.15 | 49/0.64 |
| BVR | 450/750V | 25 | 11.0 | 306 | 0.727 | 98/0.58 |
| BVR | 450/750V | 35 | 12.5 | 403 | 0.524 | 133/0.8 |
| BVR | 450/750V | 50 | 14.5 | 553 | 0.387 | 133/0.68 |
| BVR | 450/750V | 70 | 16.5 | 764 | 0.268 | 189/0.68 |
| BVR | 450/750V | | | | | |
1,Application
This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and apparatus, telecommunications equipment and lighting ect. fixed installation.
2,Operating Characteristic
1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V
2)The conductor of electric wire cable allows working temperature <70°C for long time
3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius should ≥4D,OD≥25mm, allowed bending radius should≥6D
3,Executive Standard
JB/T8734-2012,GB/T5023-2008

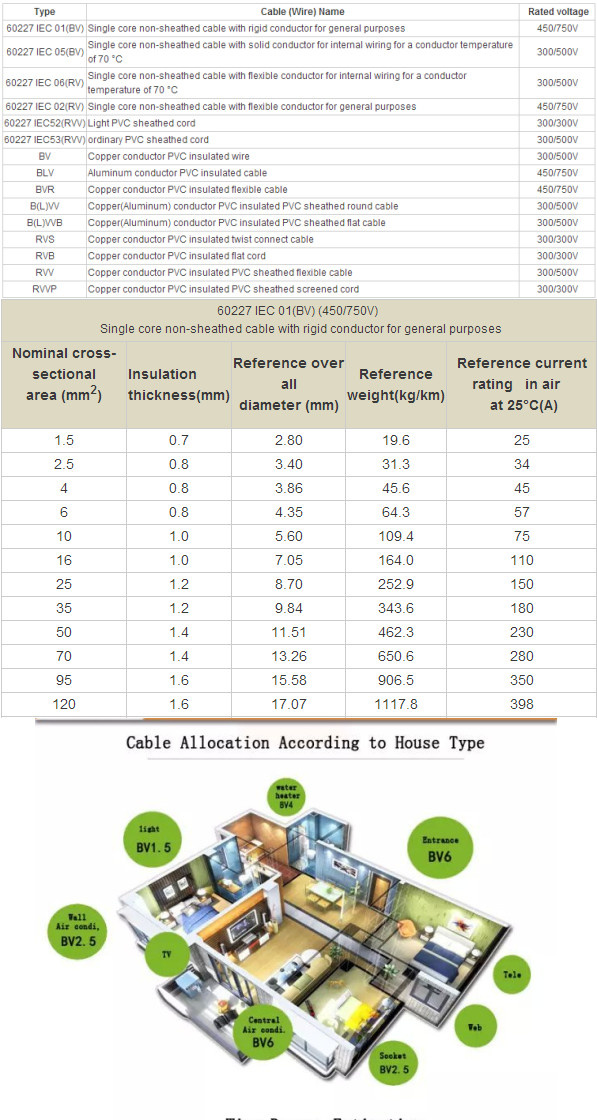

4.Type,Name and Rated voltage
