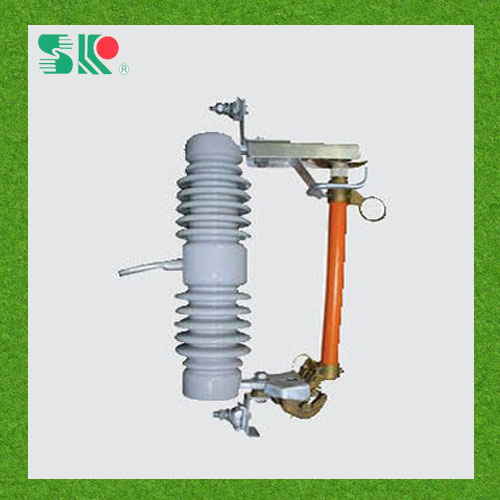

12kv-15kv High Voltage Cutout Fuse Xm-5

Name: 12kv-15kv High Voltage Cutout Fuse Xm-5
Brand: all-electronics-online.com
SKU: 786867885
Availability: InStock
Rating: 4.8 (134 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-5
Leakage Distance:	330mm
Voltage:	12-15kv
Material:	Ceramic,Metal
Delivery:	as Required
Usaga:	High Voltage
Breaking Capacity:	Other
Type:	Cutout Fuse

Product Description

Product Description

Type: XM-5

Rated Voltage ( kV ) : 15

Rated Current ( A ) :100 ,200

Breaking Current ( A ) : 6300,12500

Impulse Voltage ( BIL ) : 125

Power - Frequency Withstand Voltage ( kV ) : 45

Leakage Distance ( mm ) : 330

Dimensions ( cm ) : 51x31x12.5

Type	Rated voltage(KV)	Rated current(A)	Breaking current(A)	Impulse voltage(BIL)	Power-frequency withstand voltage(KV)	Leakage distance(mm)	Weight(kg)	Dimensions(cm)
XM-5	15	100	6300	125	45	330	8.8	51x31x12.5
XM-5	15	200	12500	125	45	330	9.3	51x31x12.5

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
