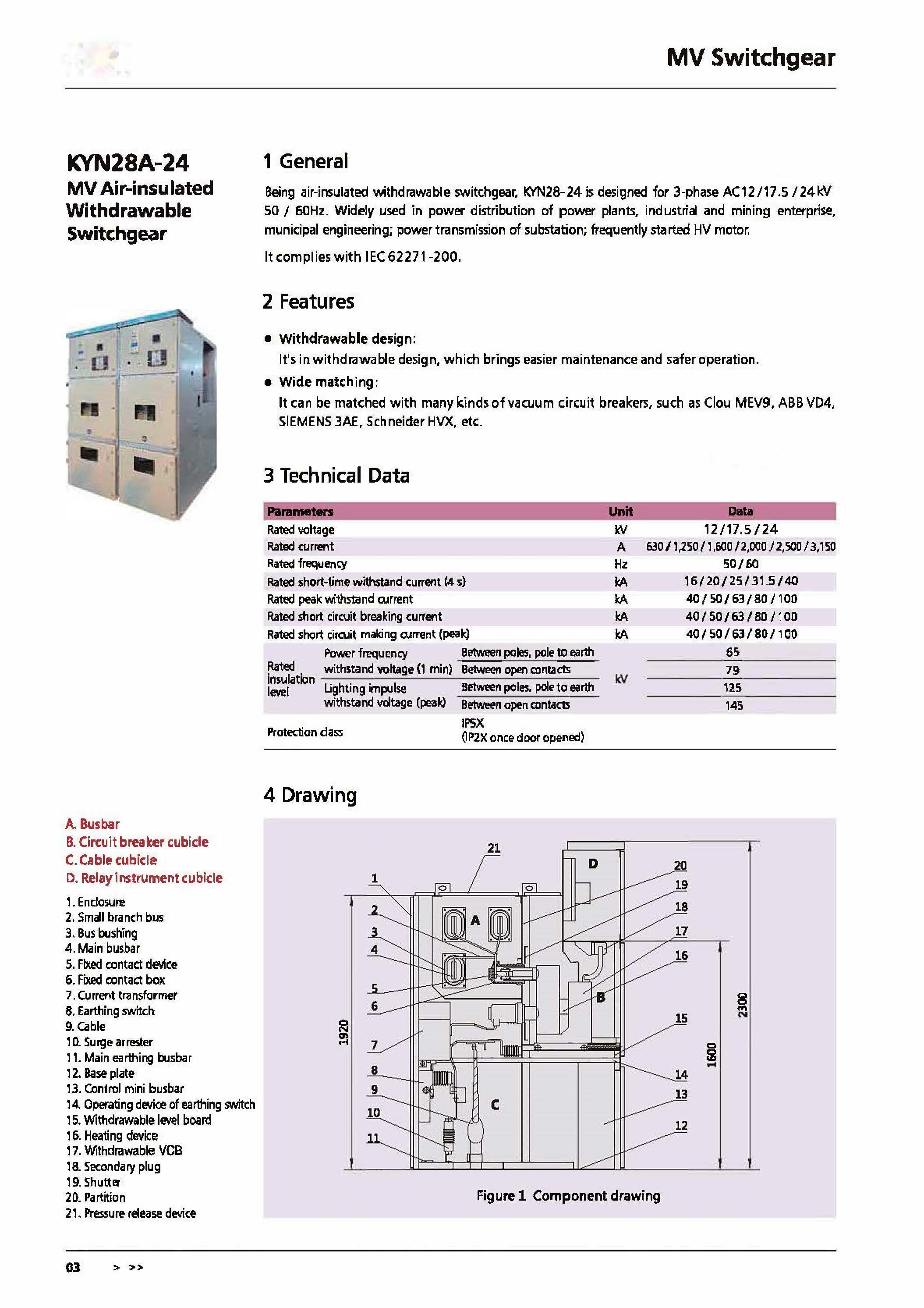

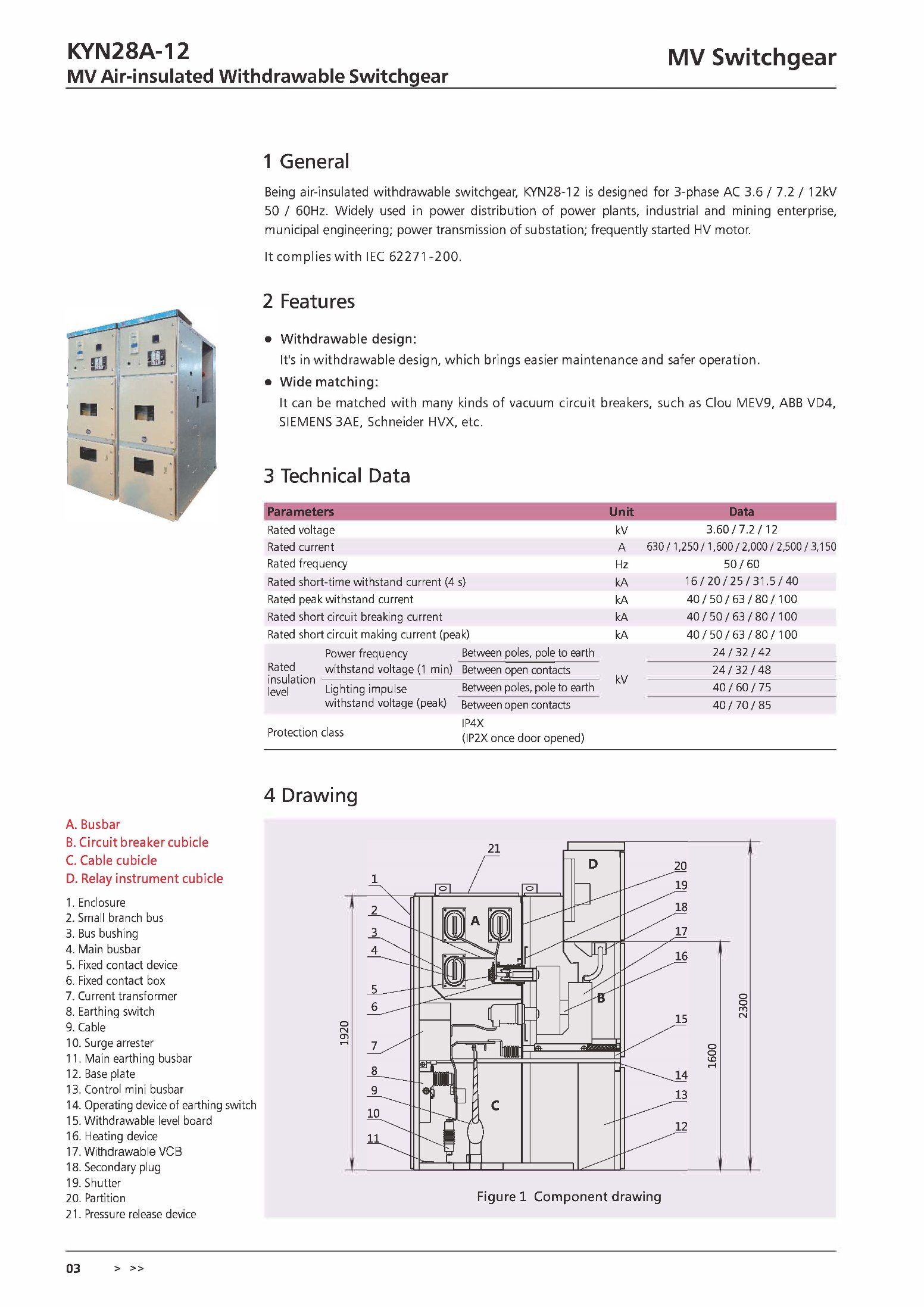

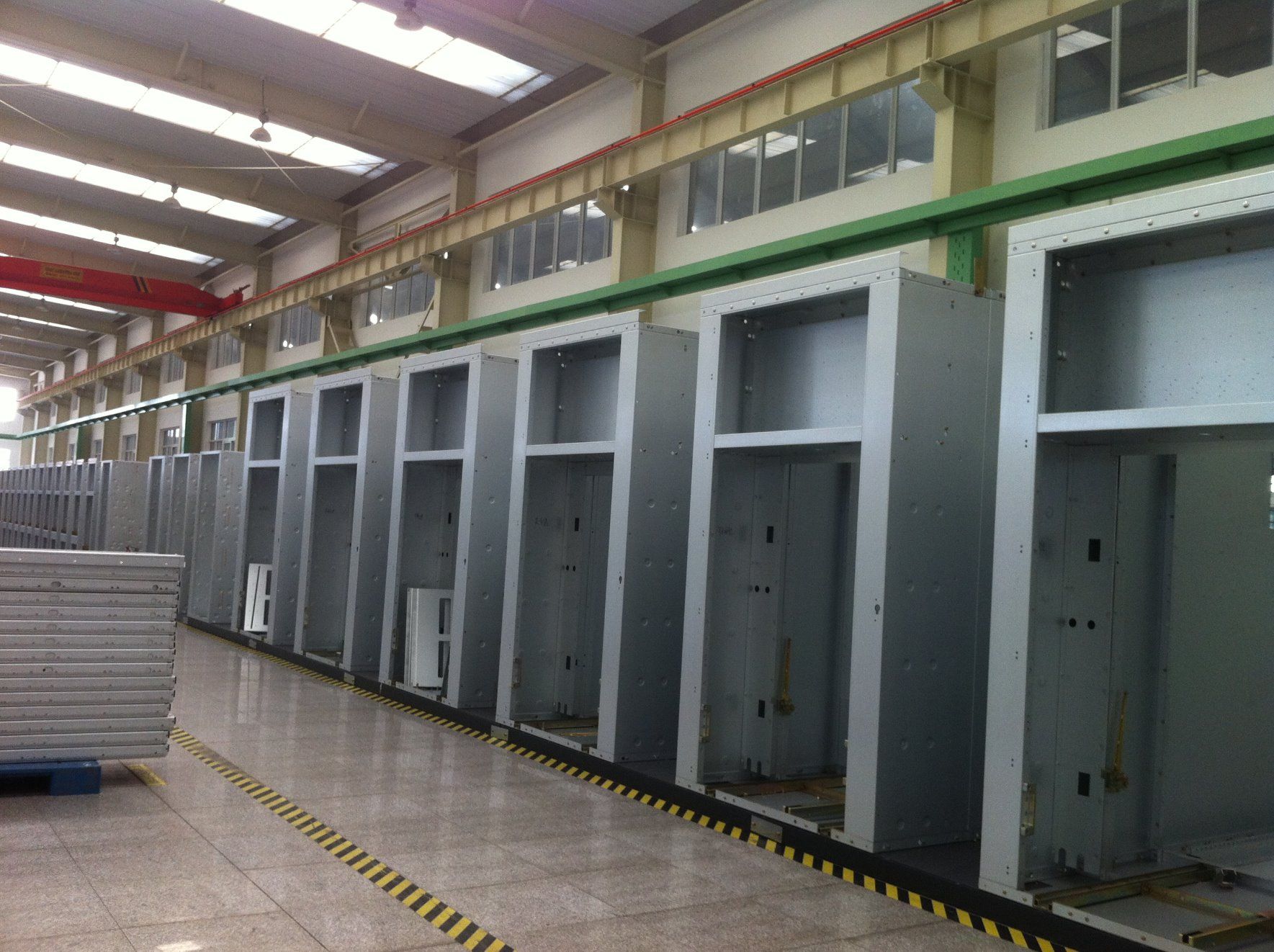

12kv/24kv Switchgear Panel
| Price: |
US $ 5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Description
| 7.1 Table of Specifications for Transformation or Arrival Cell 10.5 kV |
| Nº | DESCRIPTION | UNIT | VALUE REQUIRED | VALUE OFFERED |
| 1 | GENERAL CHARACTERISTICS OF THE SUBSTATION | | | | | | | |
| | Substations | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| 1.1 | Nominal operating voltage | kV | 10.5 | 10.5 | 10 | | 10.5 | 10 |
| 1.2 | Altitude of Installation | masl | 3400 | 3400 | 1000 | | 3400 | 1000 |
| 1.3 | Nominal frequency | | 60 HZ | 60 HZ |
| 2 | GENERAL DATA OF THE EQUIPMENT | | | | | | | |
| 2.1 | Name of manufacturer | | | | | SENDALL | SENDALL | SENDALL |
| 2.2 | Model (factory designation) | | | | | KYN28 | KYN28 | KYN28 |
| 2.3 | Country of origin | | | | | CHINA | CHINA | CHINA |
| 2.4 | Construction and test standard | | IEC 62271-200 | IEC 62271-200 |
| 2.5 | Category of continuity of service (per IEC 62271-200) | | LSC2B | LSC2B |
| 2.6 | Partition Classification (per IEC 62271-200) | | PM | |
| 2.7 | Internal Arcing Classification (per IEC 62271-200) | | IAC-AFLR | IAC-AFLR |
| 2.8 | Installation | | Interior | Interior |
| 2.9 | Access | | Frontal; appropriate for mounting on wall | Frontal; |
| 2.1 | Modular construction | | Yes; extendible on either side | Yes; extendible on either side |
| 3 | NOMINAL DATA AND CHARACTERISTICS | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| 3.1 | Maximum service voltage of equipment | kV | 10.5 | 10.5 | 10 | 10.5 | 10.5 | 10 |
| 3.2 | Network frequency | kV | 12 | 12 | 12 | 12 | 12 | 12 |
| 3.3 | Rated current of main bars | Hz | 60 | 60 |
| 3.4 | Short-time current (I''k) | A | 630 | 630 | 1000 | 630 | 630 | 1250 |
| 3.5 | Short-circuit current | kA | 25 | 25 | 25 | 25 | 25 | 25 |
| 3.6 | Duration of short-circuit | sec | 3 | 3 |
| 3.7 | Initial crest current | kAp | 2,5 x I''k | 2,5 x I''k |
| 3.8 | Extinguishing medium of the switch | | Vacuum | Vacuum |
| 3.9 | Degree of mechanical protection (External) | | IP 4X | IP 4X |
| 3.1 | Degree of mechanical protection (Internal) | | IP 2X | IP 2X |
| 3.11 | Auxiliary voltages | | | | | | | |
| | Control circuit | Vcc | 110 | 110 |
| | Spring Load Motor Circuit | Vcc | 110 | 110 |
| | Heating circuit | Vca | 220 | 220 |
| | Lighting Circuit | Vca | 220 | 220 |
| 3.12 | Test Voltages | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| | BIL impulse (1.2 / 50 ms wave) | kVp | 125 | 125 | 95 | 125 | 125 | 125 |
| | Power-frequency (1 min.) | kVef | 50 | 50 | 28 | 50 | 50 | 50 |
| | Auxiliary circuits (1 min.) | kVef | 2 | 2 |
| 3.13 | Main Bars | | | | | | | |
| | Material | | Cu | Cu |
| | Section | mm2 | | | | 640 | 640 | 640 |
| 3.14 | Bypass Bars | | | | | | | |
| | Material | | Cu | cu | cu | cu |
| | Section | mm2 | | | | 250 | 250 | 250 |
| 3.15 | System Grounding | | | | | | | |
| | Material | | Cu | Cu |
| 3.16 | Painting | | RAL 7035 | RAL 7035 |
| 3.17 | Overall Dimensions | | | | | | | |
| | Width (maximum) | mm | | | | 1000 | 1000 | 1000 |
| | Depth (maximum) | mm | | | | 1860 | 1860 | 1860 |
| | Maximum height | mm | | | | 2400 | 2400 | 2400 |
| 3.18 | Indication of presence of voltage | | Yes | Yes |
| 3.19 | Earthing switch | | Yes | Yes |
| 4 | POWER SWITCH | | | | | | | |
| 4.1 | Manufacturer | | | SENDALL | SENDALL | SENDALL |
| 4.2 | Model | | | | | ZN63A | ZN63A | ZN63A |
| 4.3 | Country of origin | | | | | CHINA | CHINA | CHINA |
| 4.4 | Standard which corresponds to power switch | | IEC 62271-100 | IEC 62271-100 |
| 4.5 | Extinction medium | | Vacuum | Vacuum |
| 4.6 | Type of use | | Interior | Interior |
| 4.7 | Execution type | | Removable | Removable |
| 4.8 | Type of operation | | Tripolar | Tripolar |
| 4.9 | Method of accumulation of operating energy | | Springs | Springs |
| 4.1 | Method of loading the springs | | Motor y manual | Motor y manual |
| 4.11 | Method of opening and closing | | Manual - electric | Manual - electric |
| 4.12 | Maximum number of operation cycles | | O - 0,3 sec - CO - 15 sec - CO | O - 0,3 sec - CO - 180 sec - CO |
| | | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| 4.13 | Nominal voltage | kV | 10.5 | 10.5 | 10 | 10.5 | 10.5 | 10 |
| 4.14 | Nominal current | A | 630 | 630 | 1000 | 630 | 630 | 1250 |
| 4.15 | Nominal frequency | Hz | 60 | 60 |
| 4.16 | Permissible short-time current (Icc) (3 sec) | kA | 25 | 25 | 25 | 25 | 25 | 25 |
| 4.17 | Dynamic current supported in short circuit | kAp | 2,5 x Icc | 2,5 x Icc |
| 4.18 | Opening time | ms | 33.5..60 | 33.5..60 |
| 4.19 | Arc time | ms | 10…15 | 10…15 |
| 4.2 | Total time of cut | ms | 43.5..75 | 43.5..75 |
| 4.21 | Close time | ms | 60…80 | 60…80 |
| | | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| 4.22 | Power-frequency voltage (60 Hz - 1 min.) | kV | 50 | 50 | 28 | 50 | 50 | 28 |
| 4.23 | Impulse withstand voltage | kV | 125 | 125 | 95 | 125 | 125 | 95 |
| 4.24 | Starting motor power consumption | W | Indicate | 300W |
| 4.25 | Rated motor power consumption | W | Indicate | 100W |
| 4.26 | Power consumption of the opening coil | W | Indicate | 100W |
| 4.27 | Power consumption of the low-voltage coil | W | Indicate | 100W |
| 4.28 | Power consumption of the closing coil | W | Indicate | 100W |
| 4.29 | Motor supply voltage | Vcc | 110 | 110 |
| 4.3 | Counter of switching operations | | Yes | Yes |
| 4.31 | Auxiliary contacts | | Yes | Yes |
| 5 | CURRENT TRANSFORMERS | | | | | | | |
| 5.1 | Manufacturer | | | | | JIANGSU | JIANGSU | JIANGSU |
| 5.2 | Model | | | | | LZZBJ9 | LZZBJ9 | LZZBJ9 |
| 5.3 | Country of origin | | | | | CHINA | CHINA | CHINA |
| 5.4 | Construction and test standard | | IEC 60044-1 | IEC 60044-1 |
| 5.5 | Insulation type | | Resin | Resin |
| 5.6 | Installation | | Interior | Interior |
| 5.7 | Rated Voltage | kV | 10.5 | 10.5 | 10.5 | 10.5 | 10 |
| 5.8 | Maximum service voltage | kV | | | | | |
| 5.9 | Network frequency | Hz | 60 | 60 |
| 5.1 | Short-time current (3 sec) | kA | | 25 | 25 | 25 | 25 |
| 5.11 | Dynamic current | kAp | 2,5 x Icc | 2,5 x Icc |
| 5.12 | Number of Cores | | 2 | | | | | |
| 5.13 | Test Voltages | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| | BIL impulse (1,2/50 mseg.) | kVp | 125 | 125 | 95 | 125 | 125 | 95 |
| | Power-frequency (1 min.) | kVef | 50 | 50 | 28 | 50 | 50 | 28 |
| 5.14 | Measurement nucleus | | | | | | | |
| | Current in primary | A | 600-300 | 600-300 | 600-300 | 600-300 |
| | Current in secondary | A | 1 | 1 |
| | Prestación (considerar una holgura del 30%.) | VA | 5VA | 5VA |
| | Precision class | | 0.2 | 0.2 |
| 5.15 | Protection nucelus | | | | | | | |
| | Current in primary | A | 600-300 | 600-300 | 600-300 | 600-300 |
| | Current in secondary | A | 1 | 1 |
| | Accuracy class | VA | 5P20 | 5P20 |
| | Benefit (consider a 30% slack.) | | 5VA | 5VA |
| 6 | VOLTAGE TRANSFORMERS | | | | | | | |
| 6.1 | Manufacturer | | | | | JIANGSU | JIANGSU | JIANGSU |
| 6.2 | Model | | | | | JDZ | JDZ | JDZ |
| 6.3 | Country of origin | | | | | CHINA | CHINA | CHINA |
| 6.4 | Construction and test standard | | IEC 60044-2 | IEC 60044-2 |
| 6.5 | Insulation type | | Resin | Resin |
| 6.6 | Installation | | Interior | Interior |
| 6.7 | Rated Voltage | kV | 10.5 | 10.5 | 10 | 10.5 | 10 |
| 6.8 | Maximum service voltage | kV | 12 | 12 |
| 6.9 | Network frequency | | 60 | 60 |
| 6.1 | Cantidad de secundarios | Hz | 2 | 2 |
| 6.11 | Test Voltages | | Oropesa | Huaro | Urpipata | Oropesa | Huaro | Urpipata |
| | BIL impulse (1,2/50 mseg.) | kVp | 125 | 125 | 95 | 125 | 95 |
| | Power-frequency (1 min.) | kVef | 50 | 50 | 28 | 50 | 50 | 28 |
| 6.12 | Relation transformation | | | | | | | |
| | Voltage on the primary | kV | 10.5/√3 | 10.5/√3 | 10/√3 | 10.5/√3 | |
| | Voltage on the secondary | kV | 0.10/√3:0.10/√3 | 0.10/√3:0.10/√3 |
| 6.13 | Secondary of measurement | | | | | | | |
| | Benefit (consider a 30% slack.) | VA | 5VA | 5VA |
| | Accuracy class | % | 0.2 | 0.2 |
| 6.14 | Secondary of protection | | | | | | | |
| | Benefit (consider a 30% slack.) | VA | 5VA | 5VA |
| | Accuracy class | | 3P | 3P |
| | Voltage factor | | 1.2 | 1.2 |
| 7 | MULTIFUNCTION METER | | In accordance with table of specifications guaranteed | SEL-734 |
| 8 | MULTIFUNCTION RELAY | | In accordance with table of specifications guaranteed | SEL-751+ |
| 9.0 | Grounding switch | | Oropesa | Urpipata | Oropesa | Oropesa | Huaro | Urpipata |
| | Short-circuit capacity | | Yes | Yes | Yes | Yes | YES |
| | Short-time current (I''k) | kA | 25 | 25 | 25 | 25 | 25 |
| | Duration of short-circuit | sec | 3 | 3 | 3 | 3 | 3 | 3 |
| | Auxiliary contacts normally open | units | 4 | 4 | 4 | 4 | 4 |
| | Auxiliary contacts normally closed | units | 4 | 4 | 4 | 4 | 4 | 4 |
| | Mechanical lock | | Yes | Yes | Yes | Yes | YES |
| | Interlocking | | Yes | Yes | Yes | Yes | YES |
| | Operation | | Manual | Manual |
| Note: The most important components, such as the interruptor and switch must be of the same brand as the cabinet/panel. | |
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
