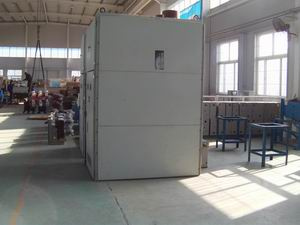

33kv Switchgear Panel
| Price: |
US $ 20000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Description
KYN -40.5 metal-clad enclosed switchgear is a small-sized switching equipment developed and manufactured by Dongyuan Electrical, applicable for three-phase AC 50Hz/60HZ power system to receive and distribute the electric energy, control, protect and detect the circuit. The switchgear has three types of structures: Metal-clad switchgear, mid-mounted switchgear and double busbar panel. It is compatible with SF6 circuit breaker, VD4-40.5 circuit-breaker, ZN72-40.5 fully insulated vacuum circuit-breaker or VED4-40.5 mid-mounted embedded-pole circuit-breaker. The secondary circuit adopts advanced, reliable control & protection unit. The switchgear applies advanced Automated Pressure Gelation (APG) process and reliable all-insulated busbar process to ensure good electrical field distribution. With reasonable structure and stable performance, it is a safe, reliable, convenient and advanced small-size switchgear.

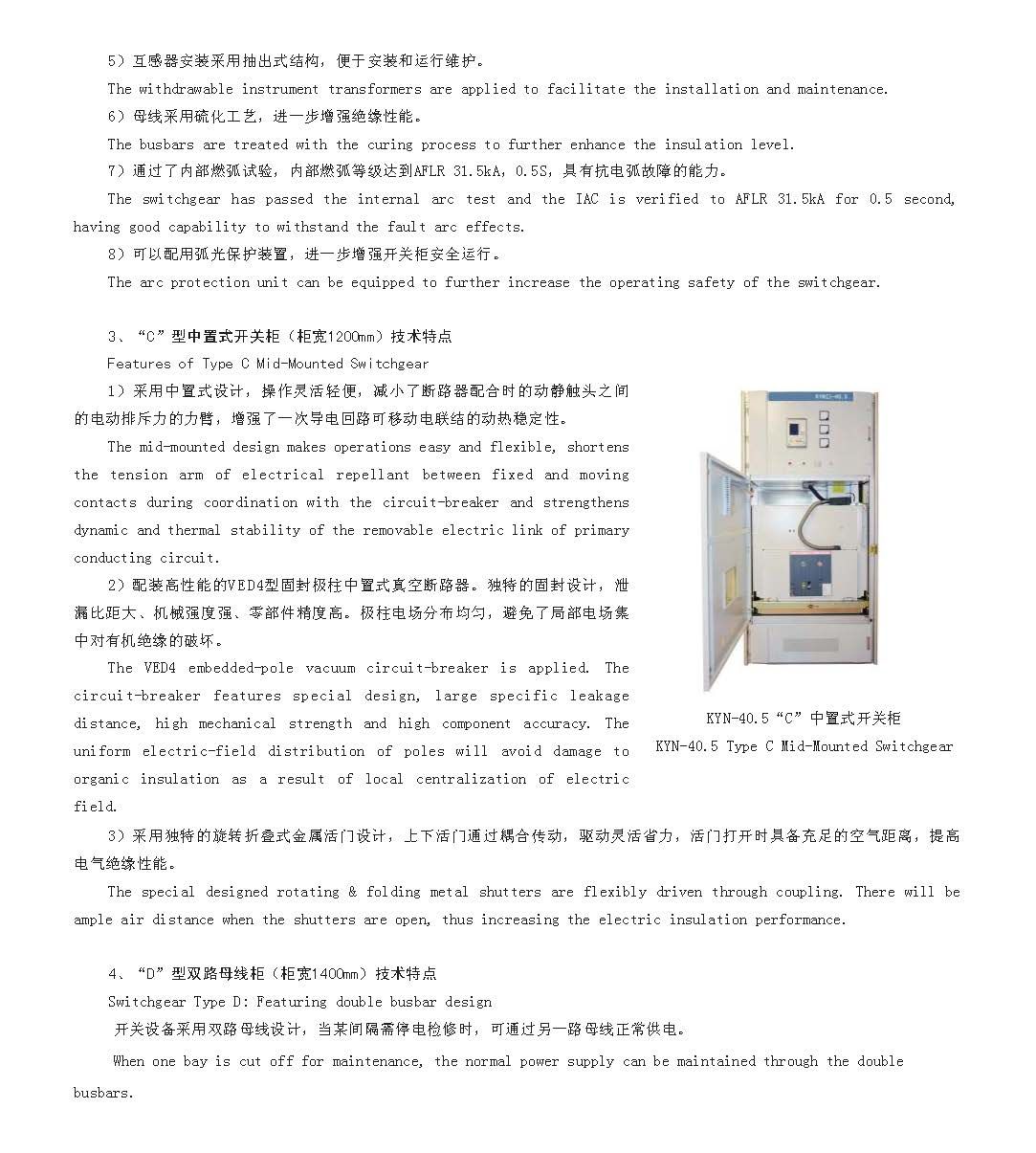

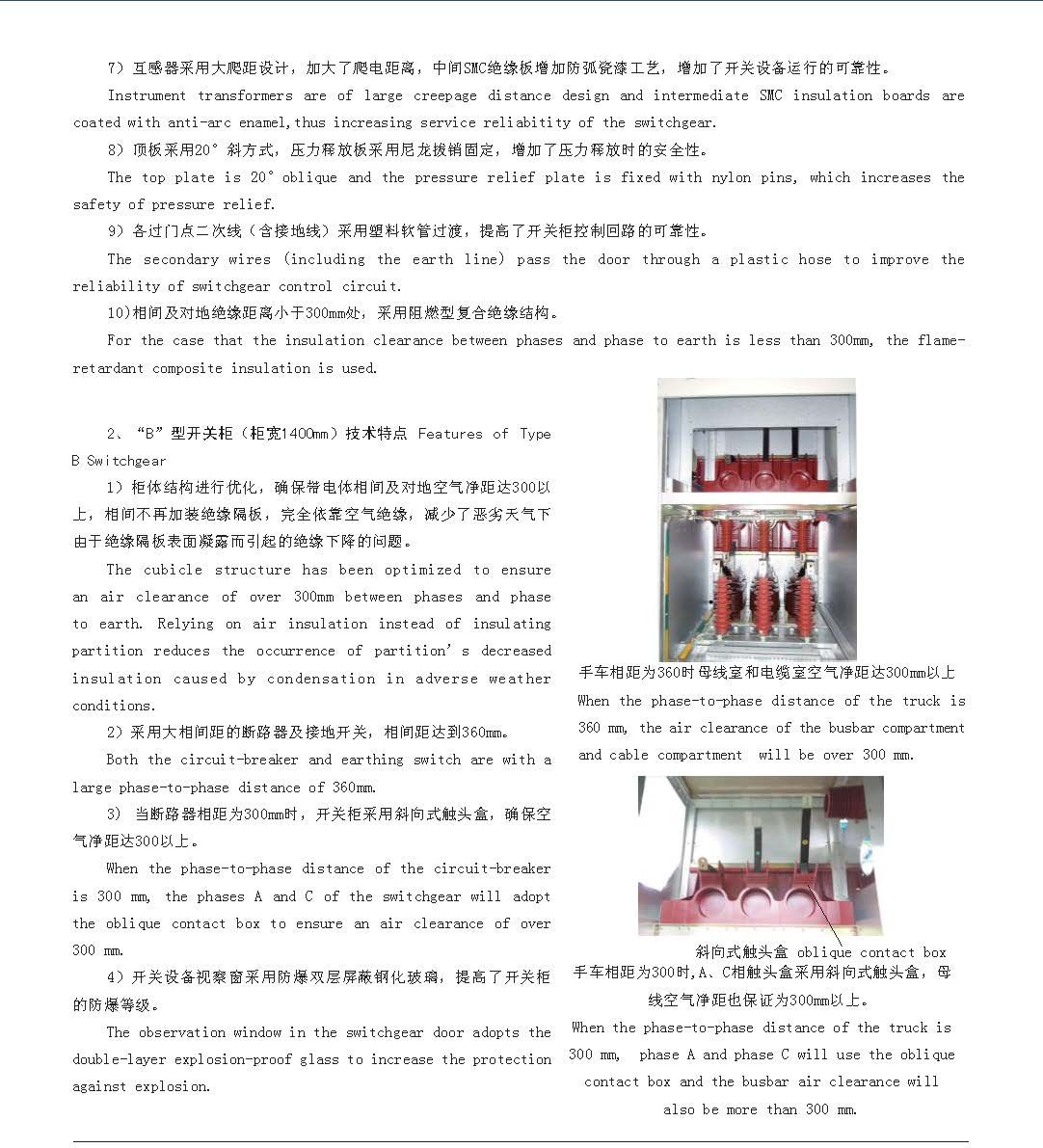

Based on the feedback from users and according to the requirements of provincial and national grids, Dongyuan Electrical optimizes the metal-clad product(panel width 1400mm). In comparison with the original construction, the structural process, insulation and protective measures have been greatly improved. Without using the insulating partitions, the air insulation distance can meet the requirements of the power system, solving the problem of insulation decrease as a result of long-term operation. The product has passed the internal arc test and the internal arc classification is verified to AFLR 31.5kA for 0.5 second, meeting the technical requirements of the State Grid and suitable for substations including and above 220kV and substations with harsh operating environment. Technical Data

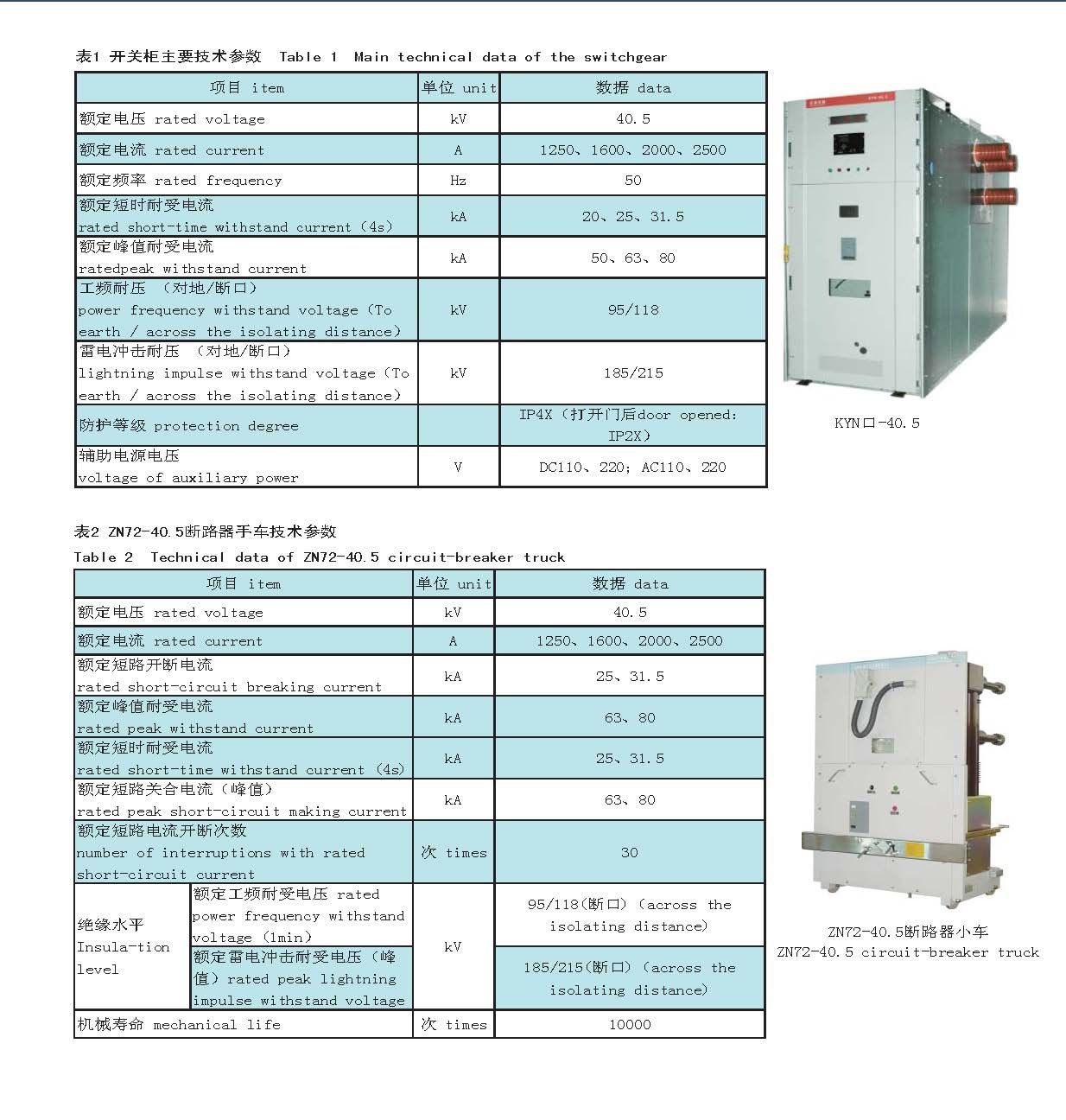

1,Switchgear technical data: See table 1.
2,Technical data of ZN72-40.5 circuit-breaker truck: See table 2.

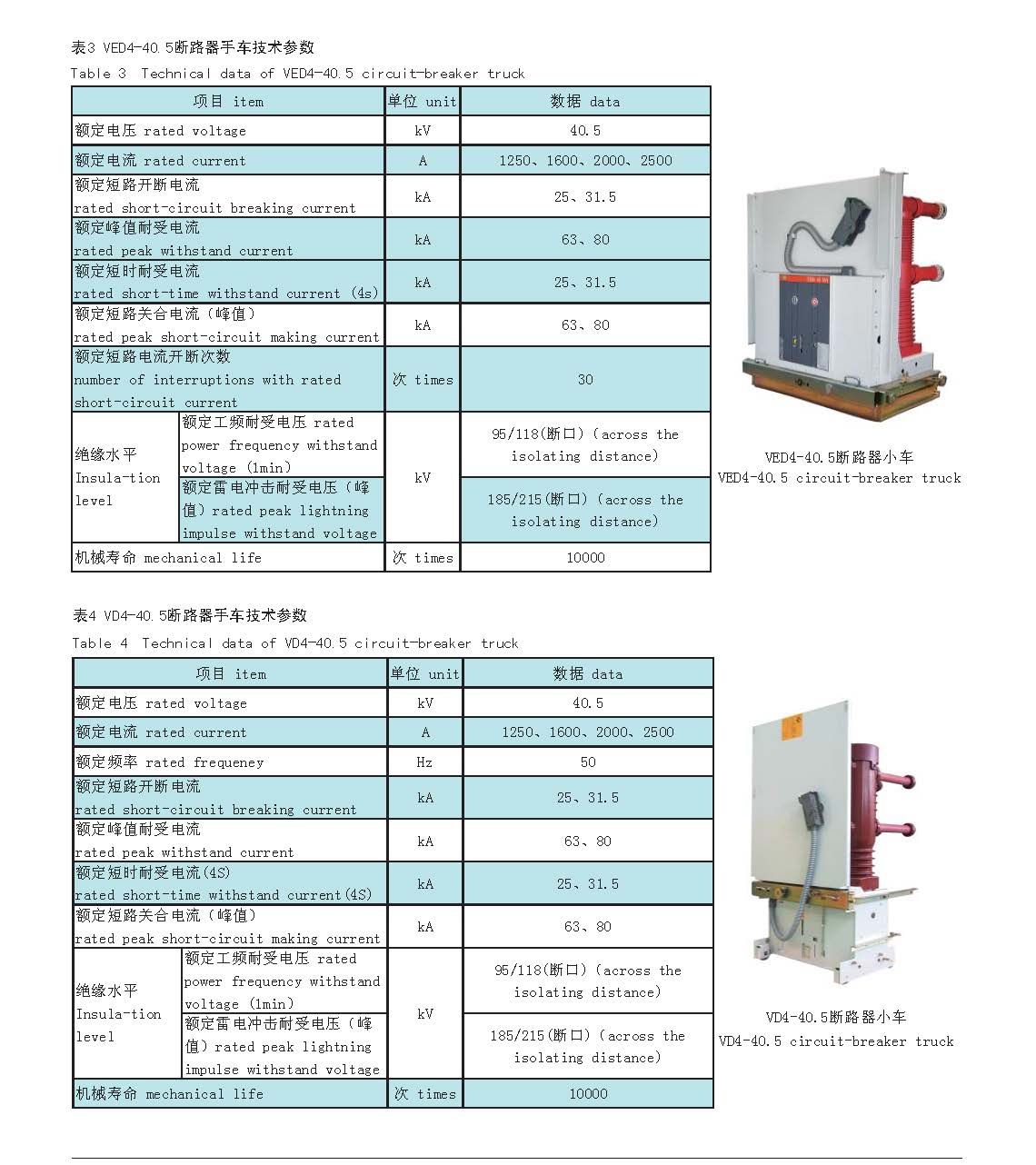

3,Technical data of VED4-40.5 circuit-breaker truck: See table 3.
4,Technical data of VD4-40.5 circuit-breaker truck: See table 4.

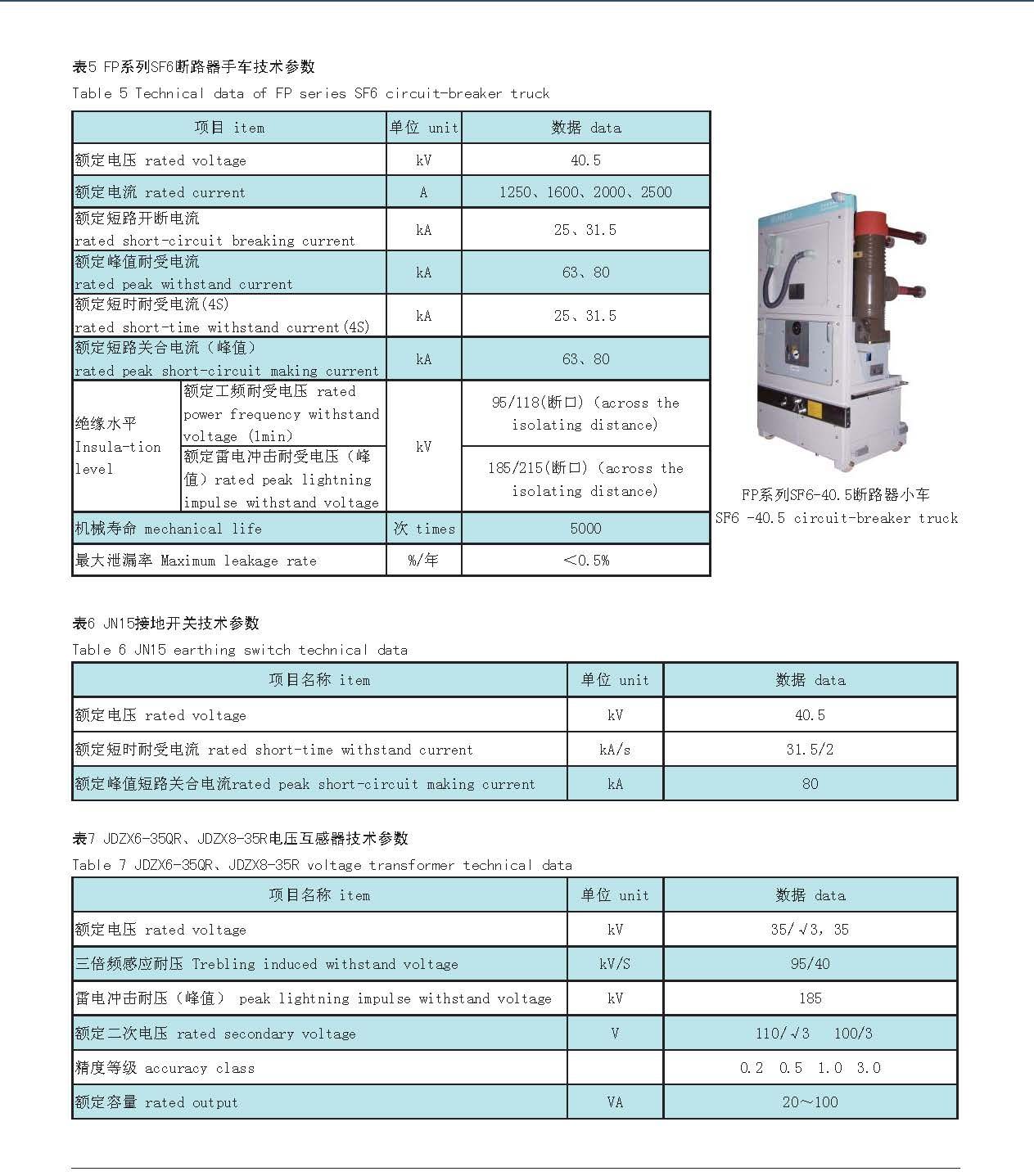

5. Technical data of FP series indoor high-voltage SF6 circuit-breaker truck: See table 5.
6. JN15 earthing switch technical data: See table 6.
7. JDZX voltage transformer technical data: See table 7.

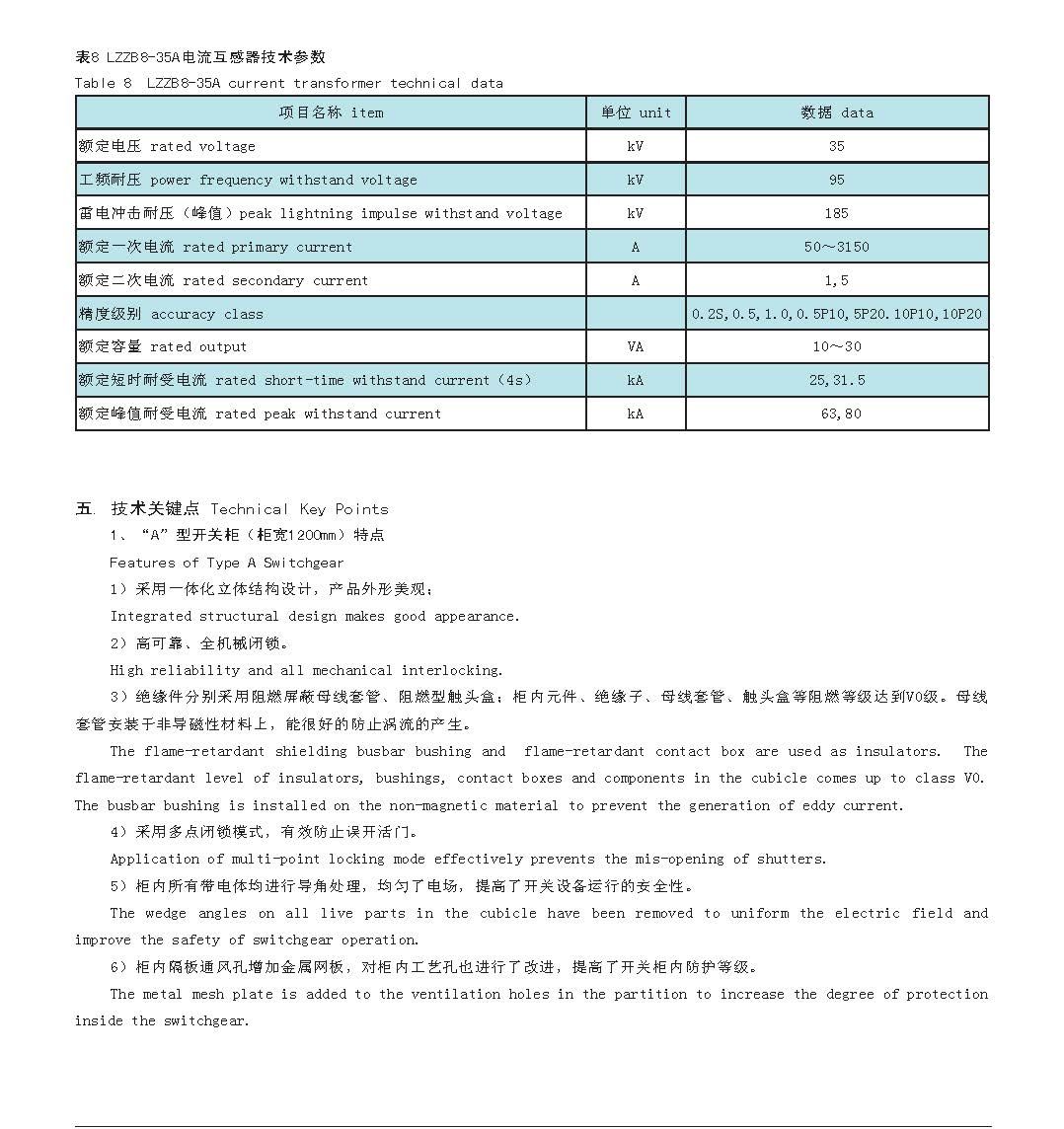

8. LZZB8-35A current transformer technical data: See table 8.
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
