| Prod Model: |

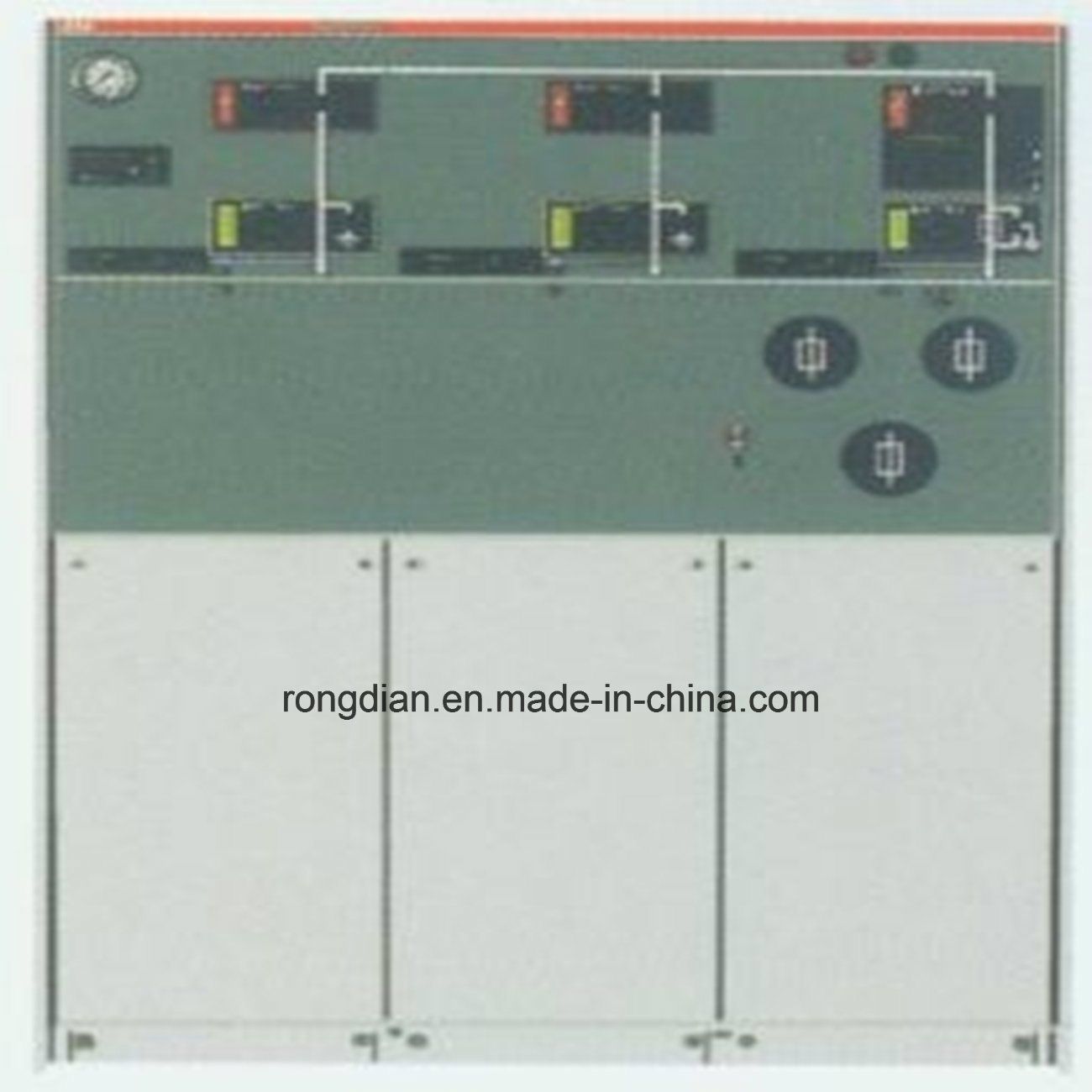

12kV ABB SafeRing SF6 Switchgear(Ring Main Unit) |
Product Description
1. Product Name:
12kV ABB SafeRing SF6 Switchgear(Ring Main Unit)
2. Performance and application description:
(1). The safe switchgear is the new SF6 gas insulation equipment that ABB Corporation use the computer simulation technique to develop. Safering switchgear is a fixed unit combination type and is a complete sealed system. All electricity components and switch is enclosed in the stainless steel. It has those characteristics of safe, reliable, high flexibility, small volume, light in weight, easy operation, long service life, high parameters, without pollution, few maintainence.
(2). Reaching to international relative standard
(3). "Five prevention", reliable machinery interlock and preventing misoperation functions are available. Transformer protection has two choice: load swich, fusible breaker combined together appliance and breaker with relay protection.
(4). It is used as an equipment for circulating network and termimal supply in power network(AC, 50Hz, 10kV)
(5). Latch automatically in three position(earthing, opening, closing)
3. Primary Technical Data:
Rated Voltage(kV):12
Rated Frequency: 50Hz
Rated current of basbar(A):630, 1250
Rated thermal stablity current(effective value):20kA/3S
Rated peak tolerated current: 63kA
Rated cut-off current of fusible breaker(kA):31.5
Closing current of Switch, Isolated switch and earthing switch(kA): 50, 63
Closing peak current of breaker(kA Peak) :50
Rongdian provide perfect convoy for cities' construction. We are power integration service provider. Great Value, High Efficiency, Building Green Life.
Established in 1995, Shenzhen Rongdian Enterprise Co., Ltd is professional international electronic power equipments manufacturing entity, engaged in all production works inculding R&D and mainly focusing on engineering project contracting, integrated electricity equipments supply at abroad, in the field of power sector including electricity substation, high voltage switchgear, low voltage switchgear, cable tray products and so on. Our factory is located in Shenzhen, Guangdong, China.
Shenzhen Rongdian Enterprise Co., Ltd mainly produce low and high voltage full electric equipment sets. Rongdian have changed fundamentally through around twenty five years developing since the company was established in 1995. Rongdian have realized transformation of scientific service of high tech, high value-added, more kinds full electric equipment sets' design, manufacturing, debugging, installing from single switchgear cabinet production.
Presently, Rongdian is built with modern standard of factory room more 12, 000 square meters, advanced processing machine, elaborate testing device, excellent technical team, and skilled workers. Rongdian is a specialized research and development production and marketing company that establish enterprise management system gradually and improve management level continuously. In order to get perfect quality products, Rongdian carry out developing strategy of powerful combination, absorbing advanced management experience, applying international technology standard to produce our products. Also Rongdian get production certification of full switchgear sets from Guangdong Electronic Machinery Industry Hall and Guangdong Power Industry Bureau two departments.
Rongdian have passed ISO9001 Quality Management System Certification in 1999. Rongdian have become qualified company firstly by CCC certification of low voltage full equipment set in 2003. Rongdian have got the title of Excellent Products Of Chinese Industry many annual years and times.
Our company main products are GCK, CGS, MNS, BFC, GGD, PGL series low voltage full electronic equipment sets, KYN28A, XGN15-12, HXGN15-12, SRC-12 series medium high voltage full electronic equipment sets, YBM-12/0.4 model mobile box-type substation, electric generator compound cabinet, double-power automatic switching device, XL, JX(F), DCX(R), XM(R) series three box products and CMC-3A, CCX series busway products.
Rongdian abide by the spirit of customer first, efficient and pragmatic, innovation and improvement, insisting the policy of quality first, credibility first, forwarding ahead superior service. Basing on the business ideas of people foremost, servicing the society and reasonable price, Rongdian devote first-class products, superior service to customer and repay society with it.
