12kv Vs1 Series Indoor Hv Assembly Vacuum Circuit Breaker

Name: 12kv Vs1 Series Indoor Hv Assembly Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 806420795
Availability: InStock
Rating: 4.6 (57 reviews)

Price:	US $ 1200-8000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

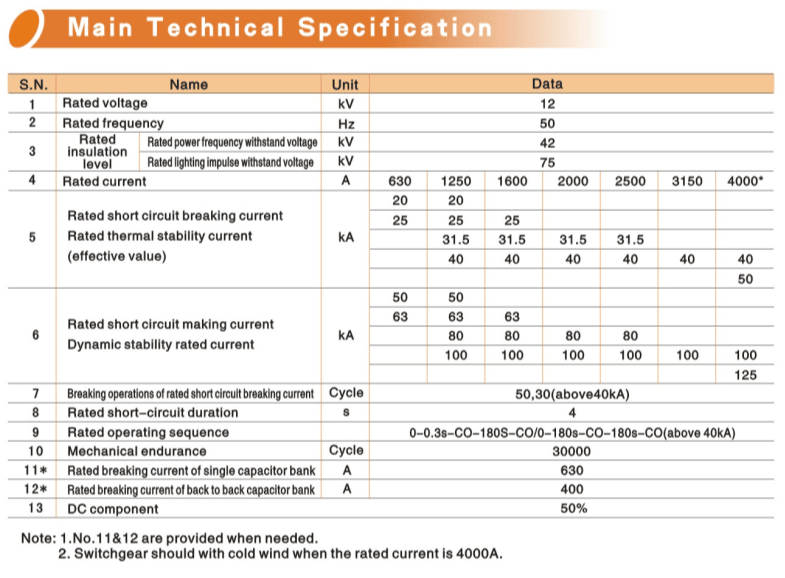

Prod Model:	VS1
Rated Current:	630A
Rated Voltage:	12kv
Mechanical Edurance:	30000cycles
Rated Frequency:	50Hz
Breaking Capacity:	High Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Poles Number:	3
Certification:	CCC
Operation:	Manual and Electric Type Circuit Breaker
Installation:	Fixed or Handcart Type Circuit Breaker
Structure:	Vcb

Product Description

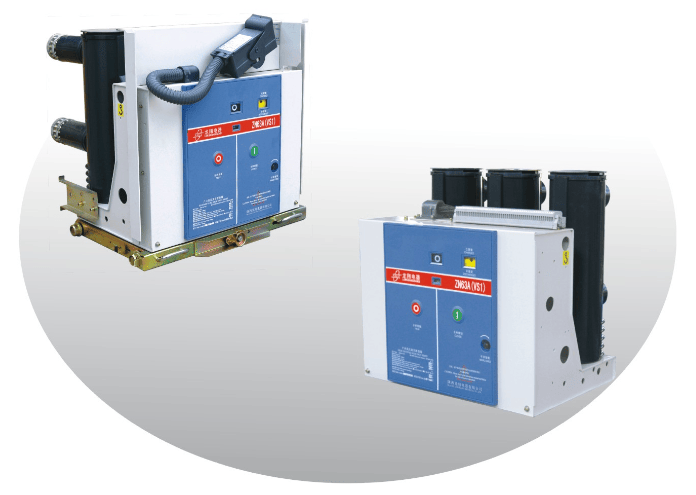

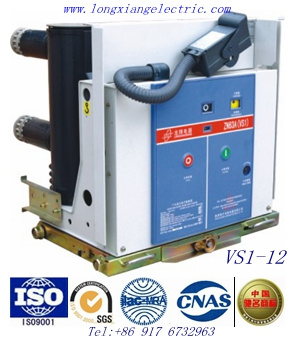

ZN63A(VS1)-12 Series of Indoor High Voltage Vacuum Circuit Breaker

General Description
ZN63A(VS1)-12 series of indoor vacuum circuit breaker is used for indoor 12kv switchgear,it is suitable to control and protect transmission and distribution system such as electric network equipment and industrial&minning industry etc as their protection and control unit.
It can match with KYN28(GZS1),XGN and GG1-A series of switchgears.The products meet standards of GB1984-2003,this seriesof products include:VCB truck,isolation truck and fuse truck etc.
1.This series of VCB is used integrated design for operating mechanism and VCB body with reasonable,beautiful and compact arrangement.
2.This series of VCB adopted vertical insulation house against impact due to different weather,it can effectively prevent VIS against damage by exterior factors.
3.With two kinds of installation unit:fixed type and withdrawable type,it can meet different assembling requirements between switchgear and breaker.

Applying ambient conditions
1.Ambient temperature:-10ºC~+40ºC.
2.The height above sea level:≤1000m(besides the special requirements).
3.Relative humidity:the average humidity of a day should be no more than 95%;the average humidity of a month should be no more than 90%.
4.Saturated vapour pressure:the average pressure of a day should be no more than 2.2kPa;the average pressure of a month should be no more than 1.8kPa.
5.Earthquake intensity:not exceed 8 degrees.
6.It should be installed in the places without fire,explosion,serious filth,chemical erosion and violent vibration.

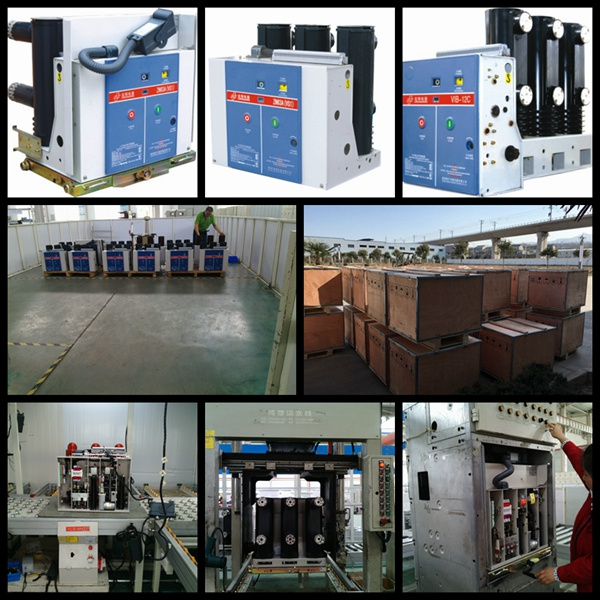

Packaging & Delivery.

Packaging Details	Non-solid wooden case(standard export package).
Delivery Detail	Within 10~15days from the date of receiving signed sales confirmation by both parties.

Company Introduction

General

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.

Professional management team and extensive market supply

Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.

Reliable technique and continuous improvement of quality control

Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.

Contact information

Website: www.longxiangelectric.com Fax: +86 917 6732963
