12kw Three Phases Power Inverter for Generator

Prod Model:	SNI-120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trade:	Accept OEM/ODM
Company:	Manufacturer/Trading Company
Host Size:	590*470*730mm
Weight:	113kg
Sample Order:	Accept
Shipment:	by Air or by Sea
Phase:	Three
Power Source:	Solar Power
Application:	Household; Industrial; Commerical
Brand:	Snat

Product Description

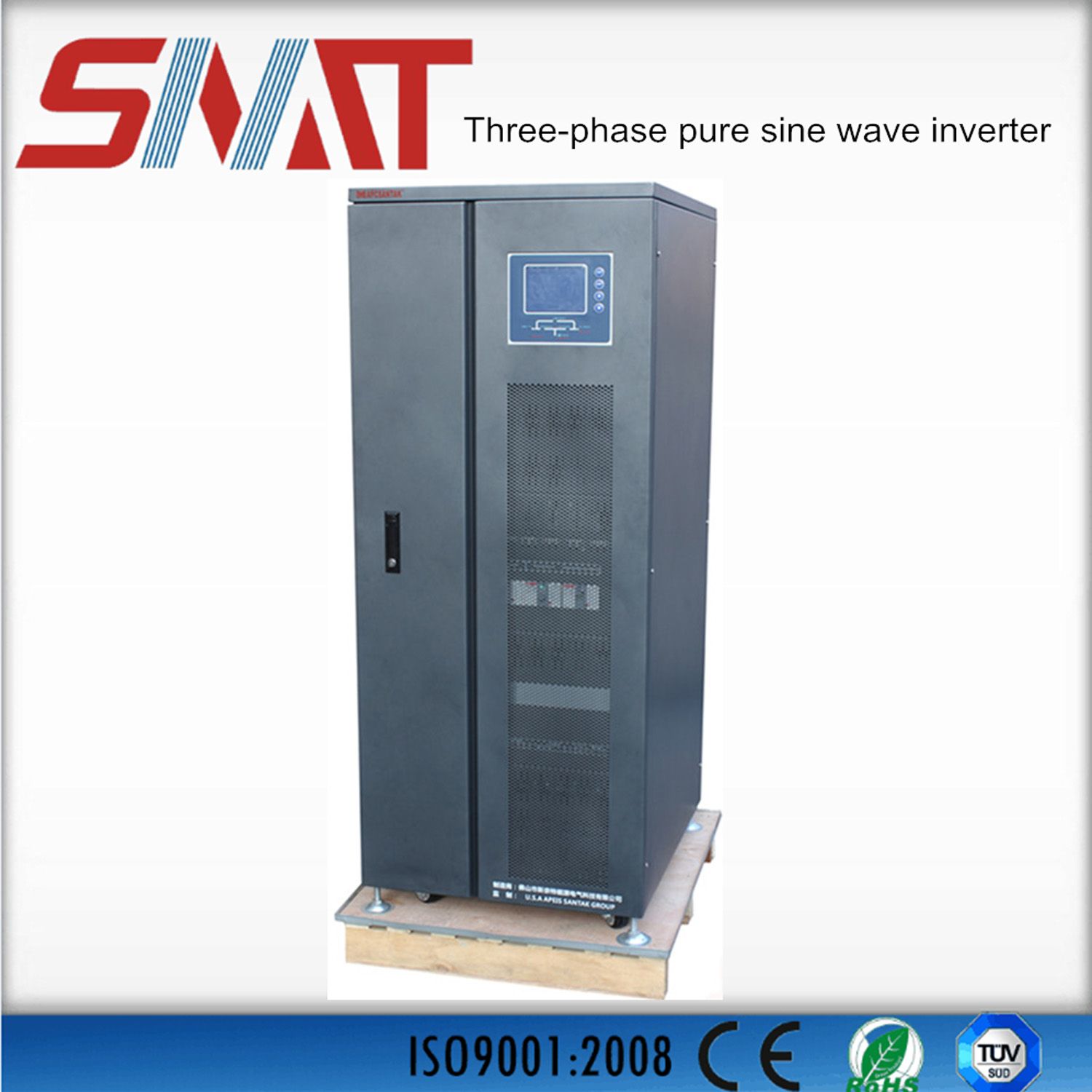

12kw Three Phases Power Inverter for Generator

Product Description &  Warranty

I- Output voltage could be 110v,120v,220v,230v,380v for your requirements;

II- Various of specification special design for different customers;

III-LED/LCD display panel;

IV-Warranty for 1 year, ship parts for free during warranty period;

V- Having CE & ISO9001 certification.

 Characteristics:

1.Microcomputer (MCU) controls technology and performance excellence
2.Power frequency transformer design, pure sine wave AC output, strong ability to adapt to the load
3.Wide range, high precision, automatic voltage regulator
4.With charge built-in
5. Inverter can operate with 120% of nominal load during 1 minute; 150% of nominal load during 10 second.
6. It can drive inductive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner
7.It's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
8. Inverter has bypass output function, charger function for optional;
9.Work way: Electricity priority function or battery priority function for optional.

220VAC specification parameter:


Rated power	15KW
Direct voltages (VDC)	192/240
Input voltage	three phase four wire + ground wire 380v + 20%
Input frequency range	45-65Hz
Output voltages	220VAC±5%
Output frequency range	50Hz±1%
Charging current	Max. 8A
Noise	<45dB
Operating ambient temperatures	0-40ºC
Comprehensive protection function	overload,short circuit, overvoltage, under-voltage, over-temperature
Panel Display	LED display with LCD display, equipment running status be clear at a glance
Operating/storage ambient relative humidity range	0-90% no condensation
Product dimension (L*W*H)	590*470*730mm
Package size (L*W*H)	690*570*850mm
N.W./G.W.	113/137kg

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc
