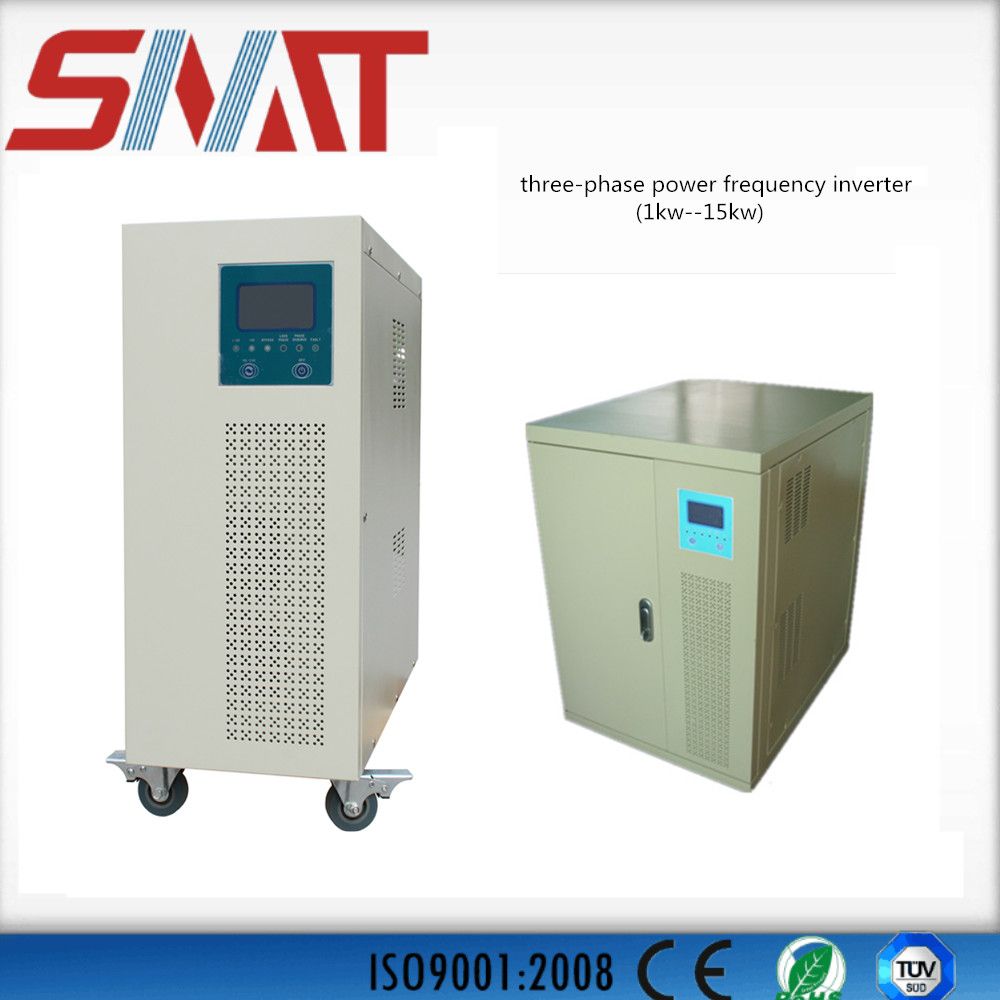

12kw TM Three-Phase Power-Frequency Inverter for Solar System

Name: 12kw TM Three-Phase Power-Frequency Inverter for Solar System
Brand: all-electronics-online.com
SKU: 786556645
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 2150-2250/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TM-12KW
Company:	Manufacturer&Trading
Snat/OEM/ODM:	Accept
Application:	Commercial, Industrial, Home-Used, etc.
Size:	590470730
Weight:	113kg
Noise:	<45dB

Product Description

Product overview:
The product applies to different types of loads because of its full digital design and real pure sine wave output. With power-frequency design and highly stable output voltage and frequency, it can operate continuously for a long time. Thus, it avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and lightning attacks, and the disadvantage of short power supply time of small UPSs, guaranteeing continuous and reliable operation for electrical equipment. Sine wave inverter supplies are the best guarantee for the safe and reliable operation of systems. The product is now widely used in China Telecom, China Mobile, China Unicom, aerospace, railways, financial management, office automation, industrial automatic control, medical health, military scientific research, etc.

Main features:
+Excellent performance because of an MCU intelligent control technology;
+A wide range of applicable loads because of power-frequency transformer design and pure sine wave AC output;
+A wide range, high accuracy, and full automatic voltage stabilization;
+Overall protection functions (overload protection, short circuit protection, overvoltage protection, undervoltage protection and overtemperature protection);
+Simple LEDs and a LCD for visualization of operation status of the equipment

Technical indexes:

Model	12KW
Rated power	12KW
DC voltage	192VDC/240VDC
Input voltage	Three-phase four-wire system+ground wire 380V±20%
Input frequency	45-65Hz
Output voltage	220VAC±5%(three-phase four-wire system)
Output frequency	50Hz±1%
Switching time	Switching from the mains supply mode to the battery mode:50ms;switching from the battery mode to the mains supply mode:25ms
Charge current	Max 8A
Inverter output protection	100-120%,30s;>120%,100ms
Noise	<45dB
Ambient temperature for operation	0-40ºC
Ambient temperature for storage	-15-+50ºC
Relative humidity for operation/storage	0-90%(no condensation)
Altitude for operation	0-3000m
Altitude for storage	0-15000m
Product dimensions DWH(mm)	590470730
Packing dimensions DWH(mm)	690570800
Net weight/gross weight(kg)	113/137

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
