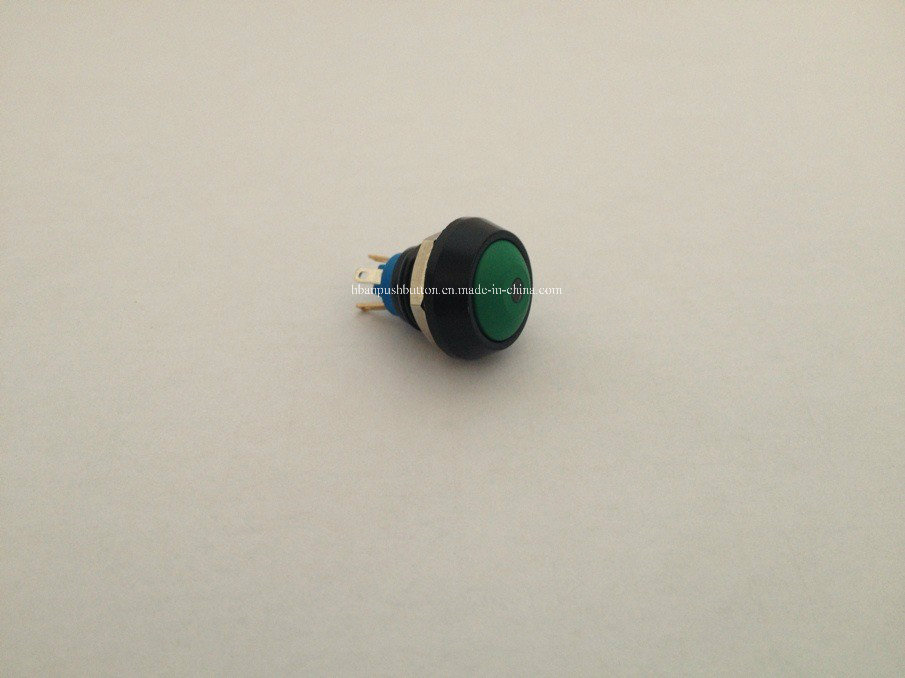

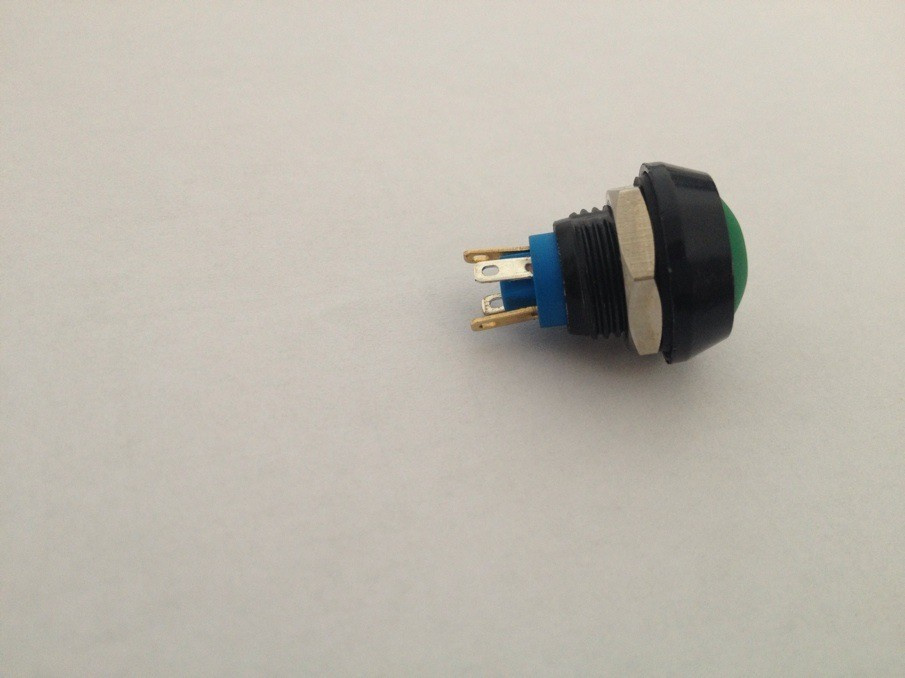

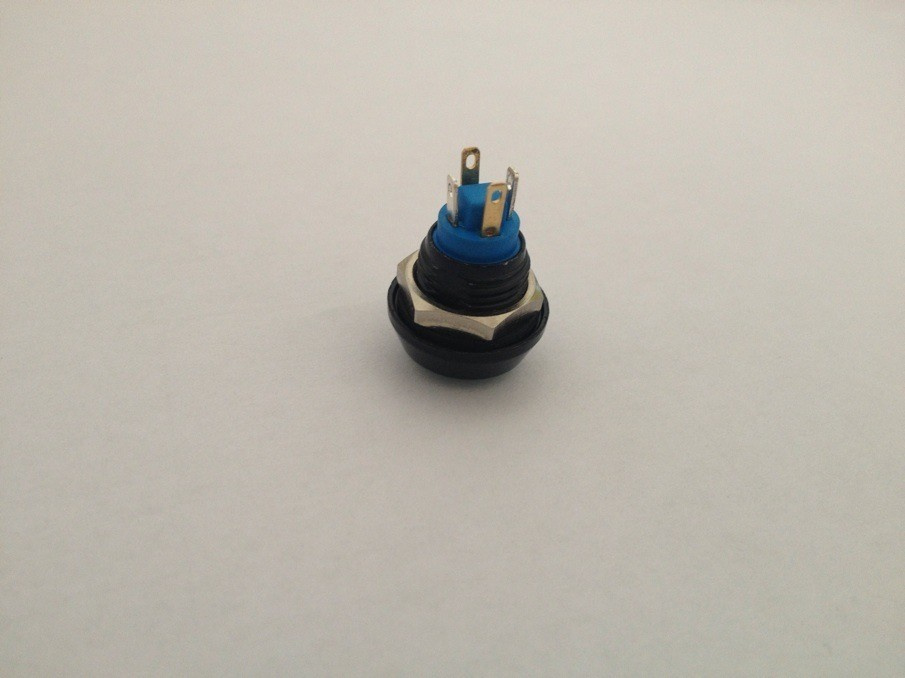

12mm DOT Illuminated Metal Colorful Head Push Button Switch

12mm DOT Illuminated Metal Colorful Head Push Button Switch
Price: US $ 0.1-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: HBGQ12B-10D/J/A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switch Rating: 2A/36V DC
Contact Configuration: 1no
Operatiion Type: Momentary
Crust Material: Zn-Al Alloy
IP Protection Degreee: IP65,Ik08
Illuminated Type: DOT-Illuminated
Usage: Check Button
Kind: Double-pole on-off Switch
Type: 1no
Brand: Hban
Certification: Ce,RoHS,ISO9001

Product Description

CE ROHS waterproof pushbutton switches with dot Led

Mounting Hole Size:Φ12mm
Switch Rating 2A / 36V DC
Front Shape: Domed
Connector:Pin terminal
Illuminated type : Dot  illuminated
Protection Degree:IP65,IK08




Packing details:

We pack 50 pieces diameter 12mm metal push button switches into 1 foam box to protect them .We supply 50 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a kraft paper box,20 boxes will be packed into a carton.
About Us:


Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
medical, banks, ships, automation and other industries.


We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel:0086-577-62708000   Fax :0086-577-62708007


Item NO.HBGQ12B-10D/J/A
Specification1NO,Momentary
Front Head Shape Domed
Terminal TypePin terminal(2.8*0.5mm)
Switch TypeC Single breakpoint snap-action changeover contacts
Switch SpecificationIth:2 A Ui:36V DC
Contact Resistance≤ 50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength2000V
Operating Temperature-22 degree~+55 degree
Machanical Life>1,000,000times
Electrical Life>50,000times
Panel Thickness1-10mm
Torque5-14Nm
Operating Pressure3~5N
Protection Degreeabout 3.1mm
MaterislContactIP65,IK08
ButtonPBT
CaseZn-al alloy
BasePBT
Lamp
Parameters
TypeDot-illuminated(LED)
Rated Voltage3V/6V/12V/24V
ColorRed/Green/Orange/Yellow/White/Blue
Life50,000hours
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
