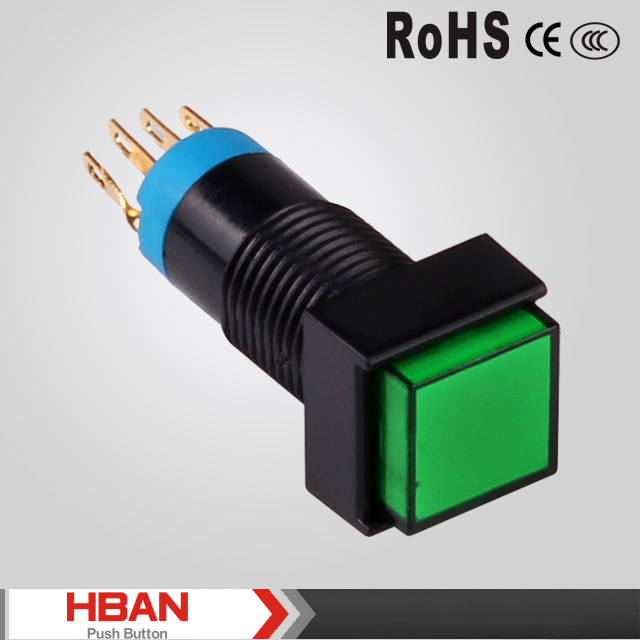

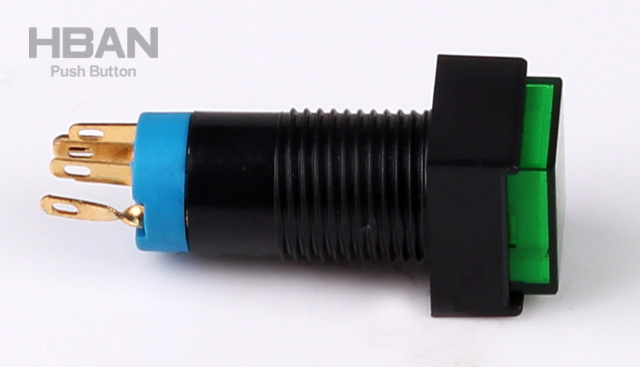

Mechanical Plastic Push Button Switch

Name: Mechanical Plastic Push Button Switch
Brand: all-electronics-online.com
SKU: 693082672
Availability: InStock
Rating: 4.7 (120 reviews)

Price:	US $ 1.03-1.08/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBS2F-11, 11Z, 11D, 11DZ, 22, 22Z, 22D, 22DZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mounting Hole Size:	12mm
Rating Value:	5A/250V AC
Head Shape:	Round/Square/Rectangle
Terminal Type:	Pin Terminal
Crust Material:	Plastic
Head Color:	Red/Green/Blue/White/Orange/Yellow
Contact Configuration:	1no1nc/2nocnc
Operation Type:	Momentary/Latching
Protection Degree:	IP40
Illuminated Type:	Head Illuminated
Usage:	Check Button
Kind:	Double-pole on-off Switch
Type:	1no1nc, 2no2nc
Brand:	Hban
Certification:	Ce, RoHS, ISO9001

Product Description

CE ROHS double pole IP40 locking or momentary illuminated
12mm push button switch

Mounting hole size :12mm

Rating Value :3A/250V AC
Contact Configuration:1NO1NC/2NOCNC
Head shape:Round/Square/Rectangle
Operation Type:Momentary/Latching
Terminal type :Pin terminal
IP Degree:IP40

Packing details:

We pack 50 pieces
double pole IP40 locking or momentary illuminated 12mm push button switch into 1 foam box to protect them .
We supply 1 piece guarantee card with these switches.Then we packed this foam box into a kraft paper box,
20 boxes will be packed into a carton.
About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers,
waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control,
medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question
about 12mm push button,
please feel free to contact us. E-mail:hb2@hban.cc

Tel:0086-577-62708000 Fax :0086-577-62708007

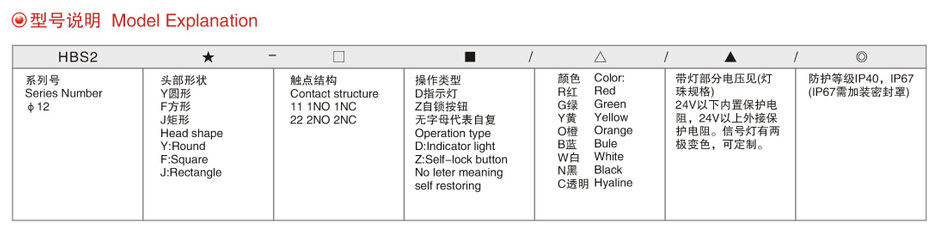

Item NO.		HBS2F-11	HBS2F-11Z	HBS2F-11D	HBS2Y-11DZ
Front Head Shape		Round,1NO1NC,non-illuminated,Momentary	Round,1NO1NC,non-illuminated,Latching	Round,1NO1NC,illuminated,Momentary	Round,1NO1NC,illuminated,Latching
Item NO.		HBS2F-22	HBS2F-22Z	HBS2F-22D	HBS2Y-22DZ
Front Head Shape		Round,2NO2NC,non-illuminated,Momentary	Round,2NO2NC,non-illuminated,Latching	Round,2NO2NC,illuminated,Momentary	Round,2NO2NC,illuminated,Latching

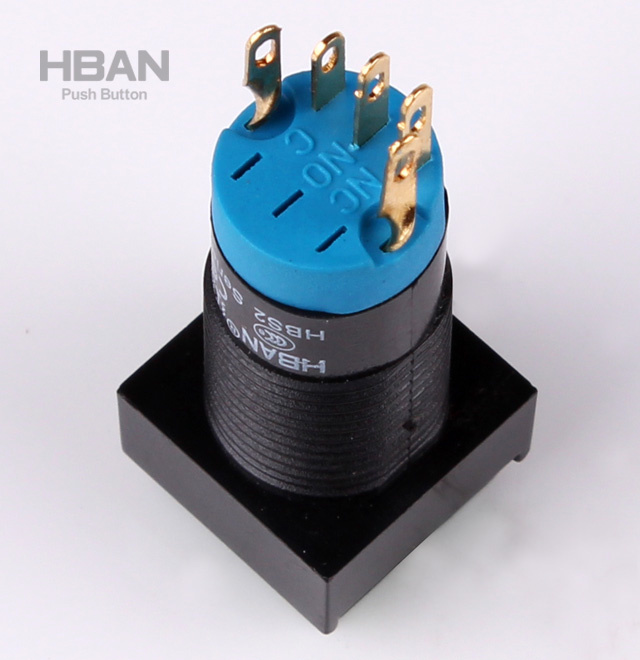

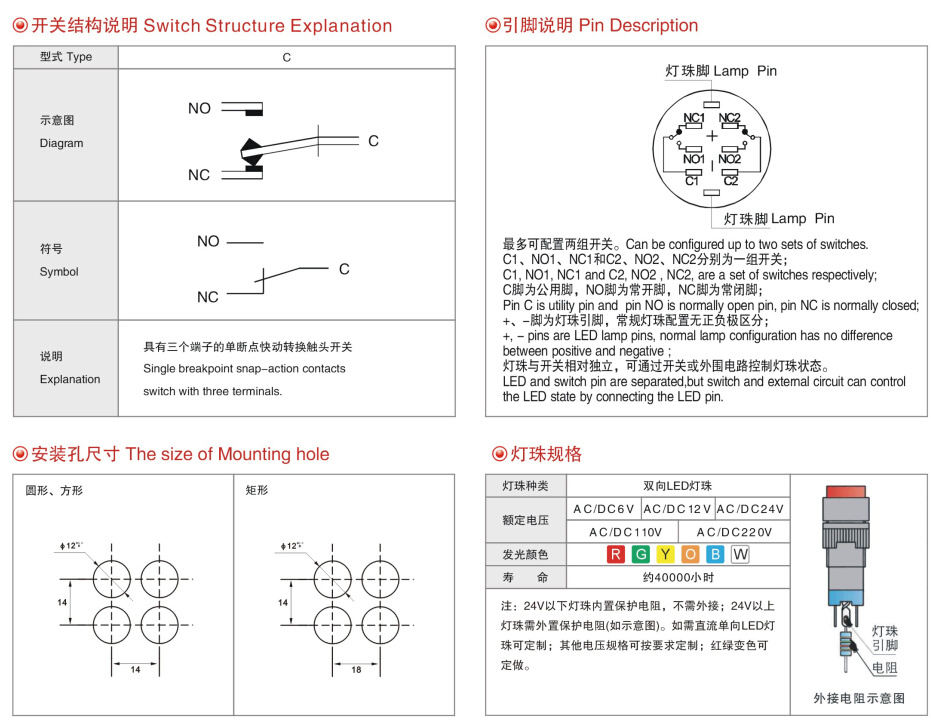

Terminal Type		Pin terminal (2.8x0.5mm)
Switch Type		1NO1NC/2NO2NC
Switch Specification		5A/250VAC
Contact Resistance		≤50mΩ
Insulation Resistance		≥100 MΩ
Dielectric Strength		2000V,AC 50Hz,1 min
Operating Temperature		1000V,AC 50Hz,1 min
Shock Resistance		≥10g
Operating Temperature		-25°C ~ +55°C
Mechanical Life		1,000,000 times
Electric Life		>30,000 times
Operating Stroke		About 3 mm
Protection Degree		IP40
Materisl	Contact	Sliver ,Sliver Alloy,Golden-plate silver
	Lamp Type	AC LED Lamp (Standard)
	LED Rated Voltage	AC/DC 6V,AC/DC12V,AC/DC/24V, AC/DC110V,AC/DC220V
Lamp Parameters	LED Color	Red,Green,Yellow,Orange,Blue,White
	Life	About 40,000 hours
