Shortest Body Stainless Steel Push Button Reset Switch

Name: Shortest Body Stainless Steel Push Button Reset Switch
Brand: all-electronics-online.com
SKU: 797834875
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 0.63-1.7/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ12F-10/J/S
Mounting Hole Size:	12mm
Waterproof Level:	IP65
Rating:	50mA/12VDC
The Front Head:	Flat Round
Contact Confirguration:	1no
Operation Type:	Momentary
The Crust Material:	Stainless Steel and Nickel-Plated Brass

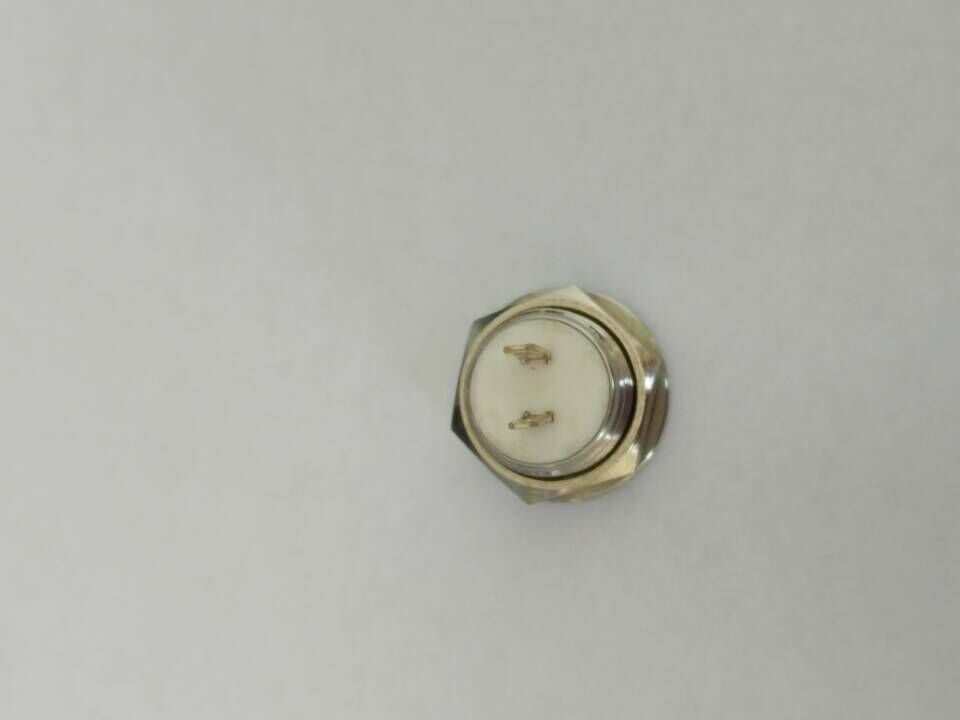

Terminal Type:	Pin Terminal
Mechanical Life:	100000 Times
Elecrical Life:	50000times
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Contact Type:	X Contact
Brand:	Hban
Certification:	RoHS TUV

Product Description

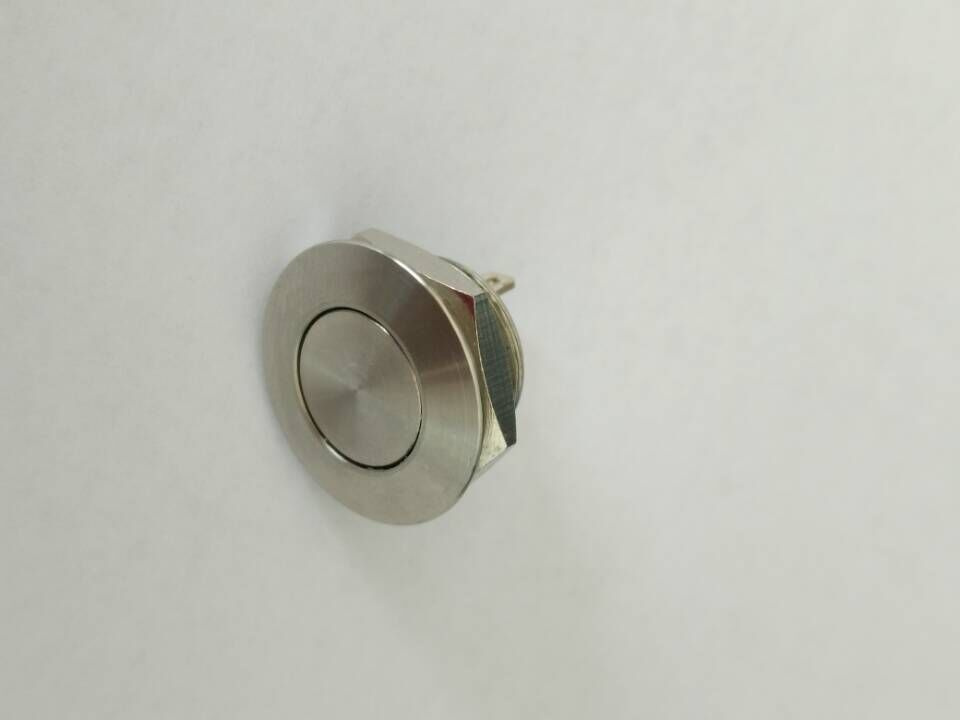

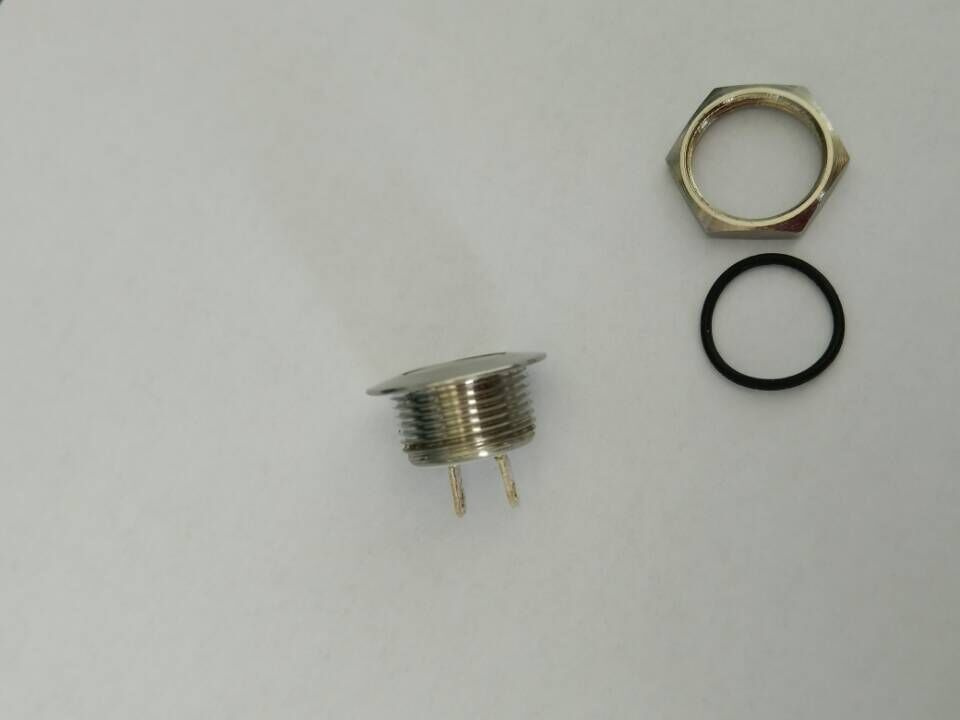

12mm mini shortest body momentary stainless steel push button switch

Mounting hole size:12mm
Switch Rating:50MA/12VDC
Contact confirguration:1NO
Operation Type:Momentary
The front shape:Flat Round
The crust material:Stainless Steel and Nickel-plated Brass

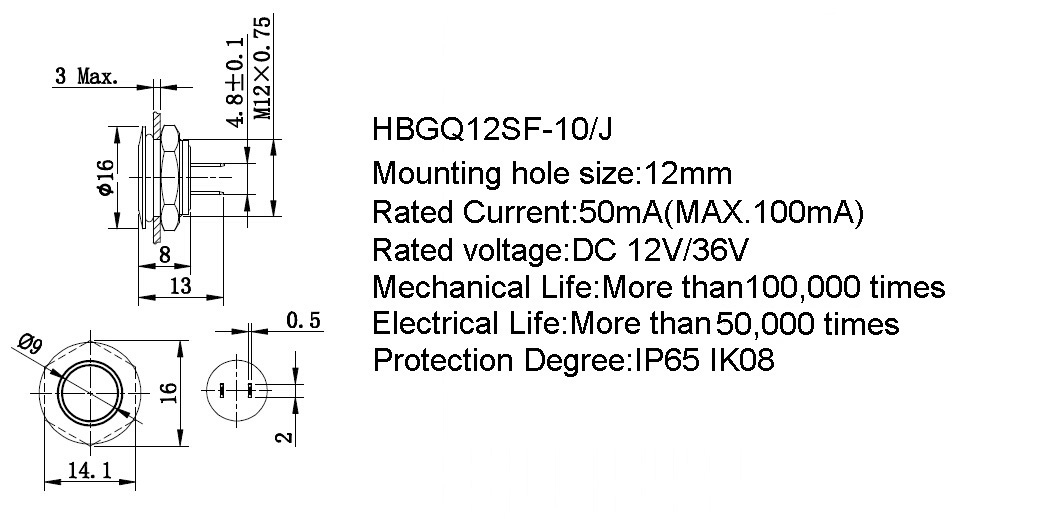

Specification	HBGQ12SF-10/J
The Front Shape	Flat
Terminal Type	Pin Terminal
Switch Type	Two terminal breakpoints slow moving contact
Switch Specification	50MA/12VDC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>1,00000 times
Elecrical Life	>50,000 times
Panel Thickness	1~5mm
Torque	5-14Nm
Operation Pressure	about 5N
Operation Stroke	about 2.5mm
Protection Degree	IP65 IK08
Material
Contact	Silver Alloy
Button	PBT
Case	Nickel-plated brass / stainless steel
Base	PBT
Head Color	R/G/B/W/Y/O/N

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBGQ12F	50	25	1250	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
