12mm Flat Round Reset LED Metal Push Button Switch Waterproof

Name: 12mm Flat Round Reset LED Metal Push Button Switch Waterproof
Brand: all-electronics-online.com
SKU: 791151485
Availability: InStock
Rating: 4.6 (36 reviews)

Price:	US $ 0.72-1.93/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ12F-10E
Mounting Hole Size:	12mm
Waterproof Level:	IP65 IP67
Rating:	2A/36VDC
The Front Head:	Flat Round Ring Illuminated
Contact Confirguration:	1no
Operation Type:	Momentary
The Crust Material:	Stainless Steel and Nickel-Plated Brass
Terminal Type:	Pin Terminal
Mechanical Life:	1000000 Times
Elecrical Life:	200000times
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Contact Type:	X Contact
Brand:	Hban
Certification:	RoHS TUV

Product Description

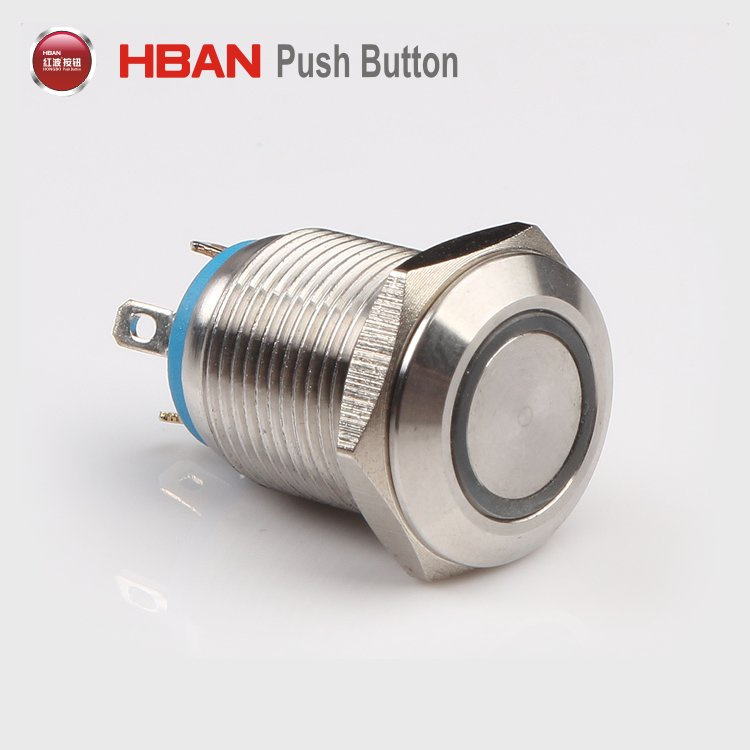

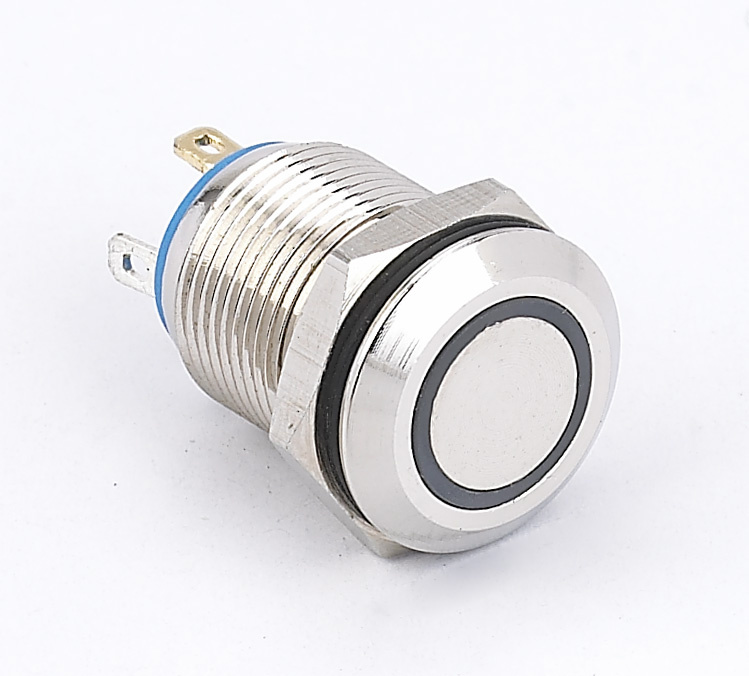

UL TUV 12mm Flat Round momentary led metal push button switch waterproof
Mounting hole size:12mm
Switch Rating:2A/36VDC
Contact confirguration:1NO
Operation Type:Momentary
The front shape:High Round Ring illuminated
The crust material:Stainless Steel and Nickel-plated Brass

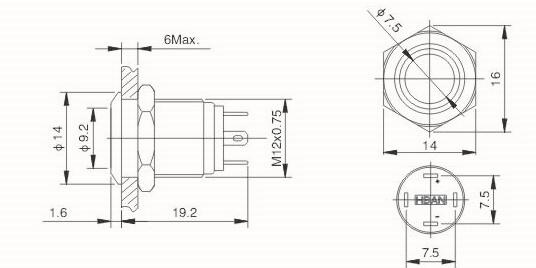

Specification	HBGQ12F-10EZ/J
The Front Shape	Flat
Terminal Type	Pin Terminal(2x0.5mm)
Switch Type	Two terminal breakpoints slow moving contact
Switch Specification	2A/36VDC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>2,000,000 times
Elecrical Life	>100,000times
Panel Thickness	1~10mm
Torque	5-14Nm
Operation Pressure	About 4N
Operation Stroke	about 1.8mm
Protection Degree	IP65 IK08
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surfact CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT
Lamp Parameters
Type	Ring-Illumination
Rated Voltage	2V/6V/12V/24V/36V
Color	R/G/B/W/O
Life	50000 Hours

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBGQ12F	50	25	1250	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Catalogue:
E-catalogue: http://www.cnyangben.cn/yangben/hban/#
Moblie Catalogue:

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
