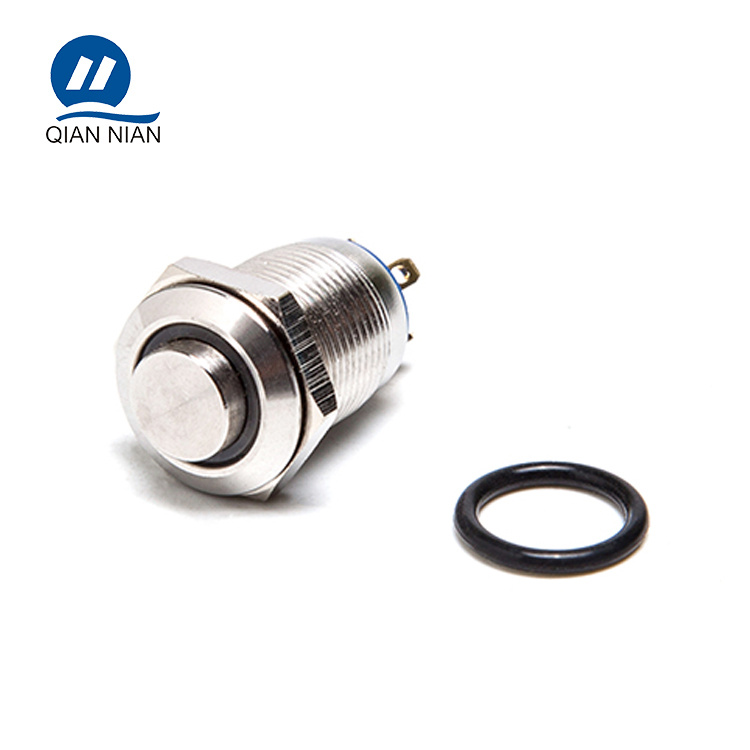

12mm High Head Ring LED 220V Low Voltage Metal Push Button Switch
Price: |
US $ 0.8-1.37/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal |
Prod Model: |
QN12-C2 |
Material: |
Nickel Plated Brass/Stainless Steel/Black Aluminum |
Trade Mark: |
Qiannian |
Operation Type: |
Momentary |
MOQ: |
Free |
Head Type: |
High Flat |
Pin Type: |
Pin Terminal |
LED Color: |
Red Green Blue Yellow White Orange |
LED Voltage: |
3V 6V 12V 24V 36V 110V 220V |
Type: |
Normal Open |
Usage: |
Check Button |
Kind: |
Double-pole on-off Switch |
Contact Type: |
Normal Open or Normal Close |
Brand: |
Qiannian |
Certification: |
CQC TUV |
Product Description
Product Description

Product name | Push Button Switch |
Product Model No. | QN12-C2 |

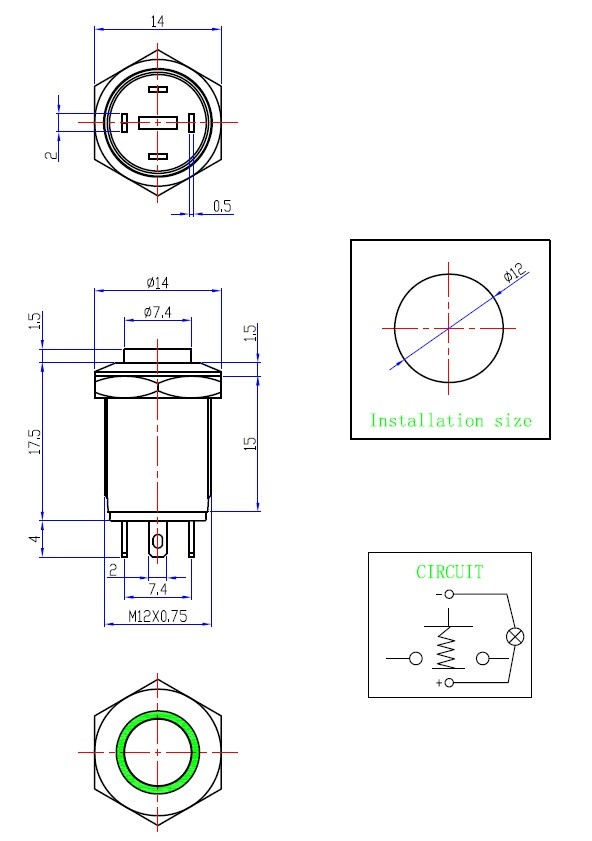

Product information | Mounting hole size | 12mm |
Operation Types | momentary |
Head Type | High Flat, pin terminal, illuminated TYPE |
Enclosure Material | stainless steel/nickel Plated Brass/Aluminum |
Degree of production | IP65/IK10 |
Contact Parameters | Switch rating | 2A/36V |
Contact configuration | NO |
Contact | silver aolly,pin terminal |
Led color/Voltage | Opetional color | Red Green Blue Yellow White Orange |
Opetional voltage | 3V 6V 12V 24V 36V 110V 220V |
Other Product Yueqing QianNian Has more than 16 years` manufacturer experience.Factory size 4000-5000 square
meters, with strong technological capacity, complete production testing equipment
FAQ:Q: What's your warranty ? A: Two yearsQ: How can i trust you and your company ?A: QianNian was founded 2001year ,
Our company over 500 employees, products pass CE,TUV,CQC, REAC, ROHS ,SGScertificates. Q: What's your contact information:A: Our address: Pudong Road, Puqi Town, Yueqing City, Zhejiang, ChinaTel :0577-62218609 86-13868736191,86-18858827872
Q: What's your shipment method?A: We ship by Express, by air, by sea, by train. Normally we checked and compare,
then provide customer the most proper shipment method.Q: What's about MOQ?A: MOQ FREE!We are the factory , but it is better order more , because freight caculate from 0.5kg,
and we will also be more happy.Q: If i want to release order, what's the payment method you accept ? A: We accept T/T, Paypal, Q: If i want to release order, what's the process?A: Thanks. You can send inquiry to us by made-in-china,
or send us by email, we will reply within 24hrs. Thank you & Now pls send your inquiry ! ^!^
Yueqing Qian Nian Electronic Co., Ltd. Was founded in 2001, a technology company which is specialized in designing and manufacturing varies types of push button switch, our company is committed to well-know brands of companies both at home and abroad to provide first-class products and enterprises supporting services. Company currently employs more than 160 people, including R&D personnel and mold production staff more than 30people. Leading products are: Metal waterproof push button switch, metal waterproof pilot lamp, anti-blast switch, accessories, piezo switch, and proximity switch. Our products are widely used in various types of console, Control box (cabinet), distribution box(cabinet), instrumentation box(cabinet), electrical apparatus, and other industrial automation device ect.
Quality is the lifeline, Company's management and production in accordance with Quality System Certification and Environment Management System Certification. Products have passed CE certification, CQC certification, TUV certification, CCC certification. Our company has domestic first -class lathes machining centers, and the products are unique. At home and abroad to enjoy a relatively high market visibility, reputation. The comaony has the right of import and export.
Our company adhere to the people-oriented modernized business administration, and pay attention to provide employees open working atmosphere and opportunities of realizing their ideals and their values, and adhere to " quality, brand, grade" expectations to help clients realize their dreams in the professional sphere.
The face of WTO opportunities and challenges brought about, our company has always adhere to" keep making process and never satisfied" entrepreneurial spirit, with technological advantage, we are striving to became one of the nation's largest, most productive companies. We sincerely welcome cooperation from all walks of life to come hand in hand to create a beautiful tomorrow!
