12mm Metal Reset Push Button Switch

Name: 12mm Metal Reset Push Button Switch
Brand: all-electronics-online.com
SKU: 692985912
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 0.1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ12B-10/J/A/N, HBGQ12B-10/J/A/S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Switch Rating:	2A/36V DC
Contact Configuration:	1no
Operatiion Type:	Momentary
Crust Material:	Stainless Steel , Nickel-Plated Brass
IP Protection Degreee:	IP65,Ik08
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Hban
Certification:	CE,RoHS,ISO9001
Type:	1no
Contact Type:	Type X Contact

Product Description

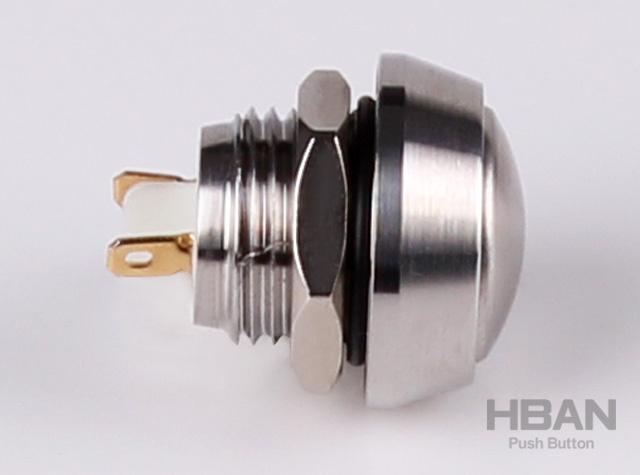

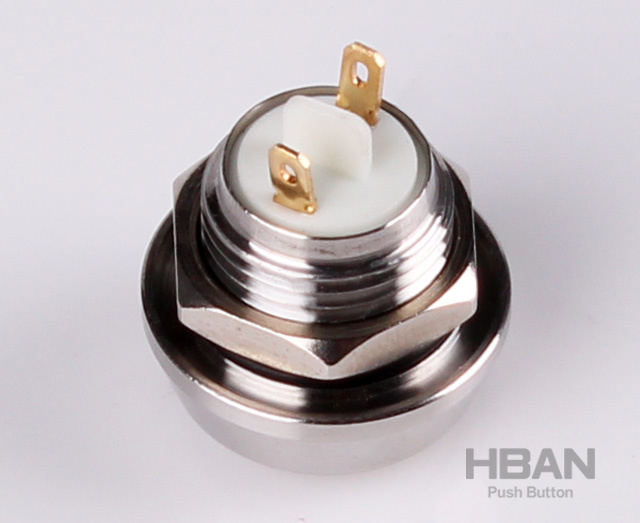

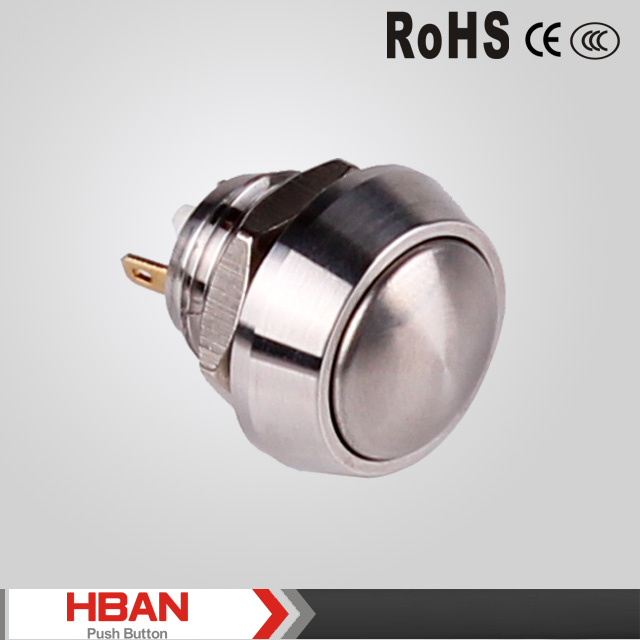

12mm push button reset type switch

Mounting Hole Size:Φ12mm
Switch Rating :2A / 36V DC
Front Shape:Domed
Head color:Red,Green,Blue, Orange,Yellow,Black,White
Connector:Pin terminal
Crust Material:Stainless Steel/Nickel-plated brass
Protection Degree:IP65,IK08

Packing details:

We pack 50 pieces diameter 12mm metal push button switches into 1 foam box .We supply 50 pieces rubber rings and 1 piece guarantee card with these switches.it will packed into a kraft paper box. Finally ,we packed 50 boxes / 25 boxes into a 5 layers corrugated export carton.

About us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
Tel:0086-577-62708000 Fax :0086-577-62708007

Item NO.		HBGQ12B-10/J/S	HBGQ12B-10/J/N
Specification		1NO,Momentary,Stainless Steel	1NO,Momentary,Nickel-plated brass
Front Head Shape		Domed
Terminal Type		Pin terminal
Switch Type		C Single breakpoint snap-action changeover contacts
Switch Specification		Ith:2 A Ui:36V DC
Contact Resistance		≤ 50mΩ
Insulation Resistance		≥1000mΩ
Dielectric Strength		2000V
Operating Temperature		-22 degree ~+ 55 degree
Machanical Life		>1,000,000times
Electrical Life		>50,000times
Panel Thickness		1-10mm
Torque		5-14Nm
Operating Pressure		3~5N
Protection Degree		about 3.1mm
Materisl	Contact	IP65,IK08
	Button	Silver Alloy
	Case	Stainless Steel, Nickel-plated brass
	Base	PBT
