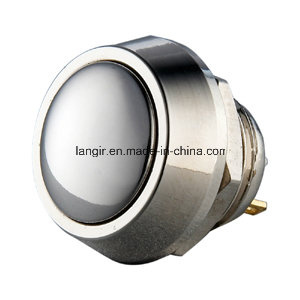

12mm Nickel Plated Brass Momentary Pin Terminal Push Button Switch

12mm Nickel Plated Brass Momentary Pin Terminal Push Button Switch
Price: US $ 1.97/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: V12-B-P-1-N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Nickel Plated Brass
Function: Momentary
Contact: Normal Open
Termminal: Pin Terminal(2.0*0.5)
Size: Dia 12mm
Type: Normal Open
Usage: Reset Button
Kind: Single-pole on-off Switch
Brand: Langir
Certification: Reach, RoHS

Product Description

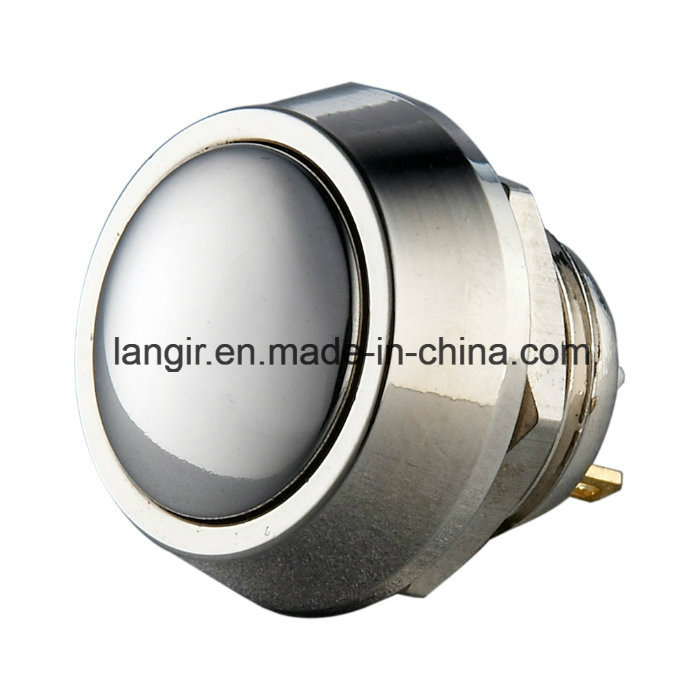

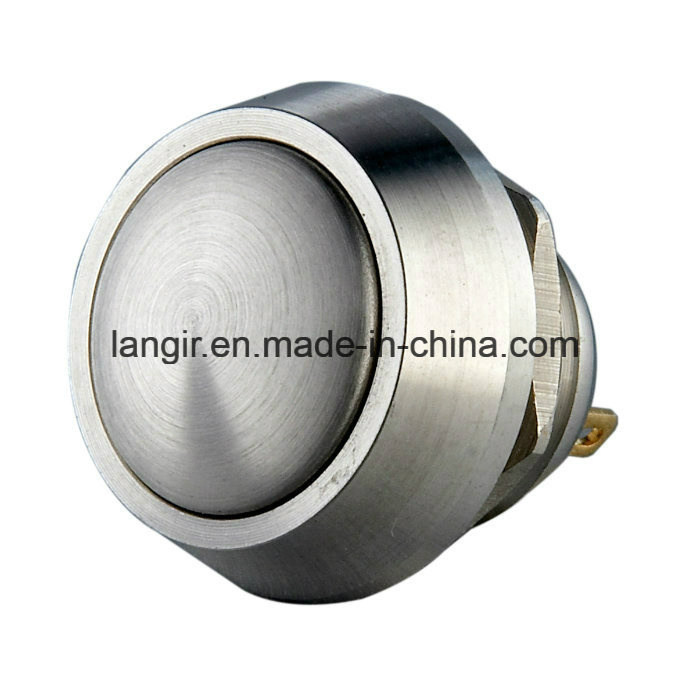

V12-B-1-P-S 12mm push button switch
-Φ12mm diameter
-2A/48VDC
-1NO, Momentary
-Actuator: Domed profile
-Crust material: Stainless steel / Nickel plated brass
-IP Degree: IP65

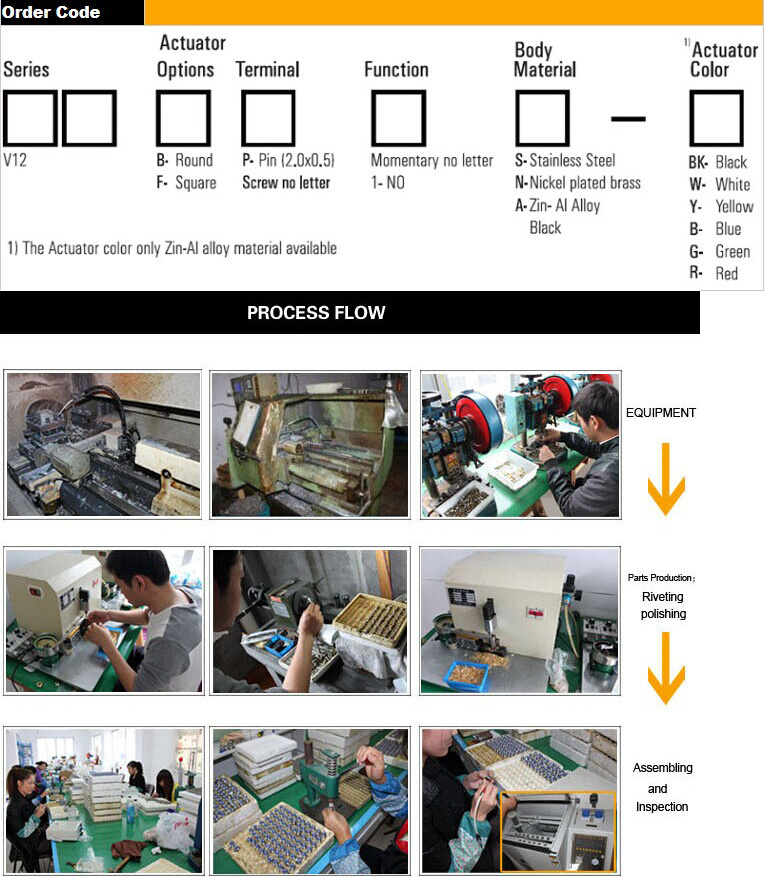

Model
V12-B/SV12-B/NV12-B/AV12-F/A
Illuminated Options Non-illuminated
Front ShapeRoundSquare
Terminal TypeScrew / Pin (2.8x0.5mm)
Max. Switch Rating2A/48V DC
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temp.-20°c ~ +55°c
Mechanical Life1, 000, 000cycles
Electrical Life20, 000cycles
Contact MaterialSilver Alloy
Torque5~14Nm
Operation Pressure5N
IP DegreeIP65 / IK08
Material
ActuatorStainless Steel  / Brass / PBT
BodyStainlessSteel / Brass / Zin-Al Alloy
BasePBT
ColorRED, GREEN, YELLOW, ORANGE, BLUE, WHITE, BLACK
Actuator(Zn-Al.alloy)



Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
