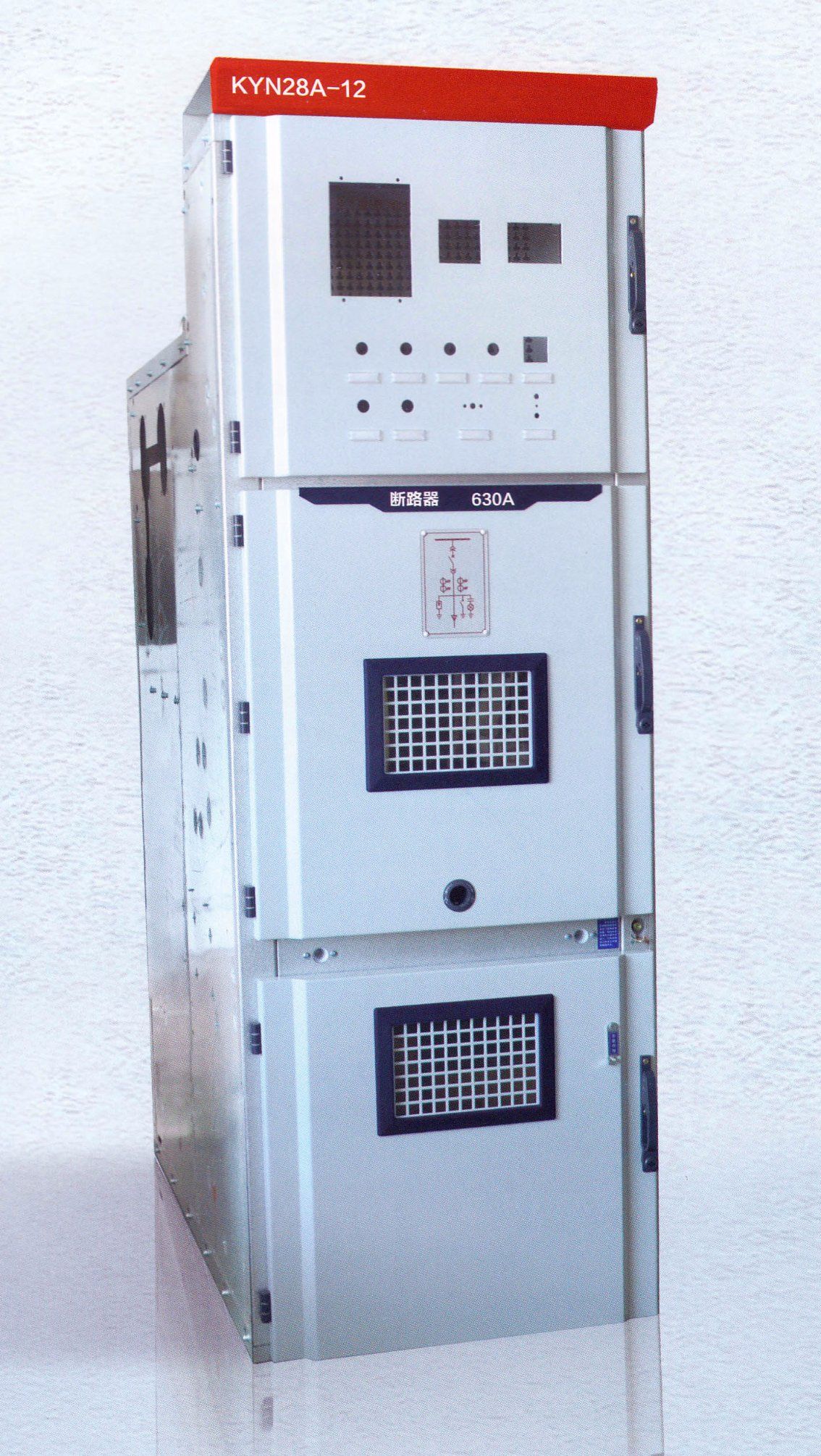

Kyn-28A IP40 Protection Level High Voltage 12kv Power Distribution Box

Name: Kyn-28A IP40 Protection Level High Voltage 12kv Power Distribution Box
Brand: all-electronics-online.com
SKU: 828601505
Availability: InStock
Rating: 4.7 (102 reviews)

Price:	US $ 2000/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KYN-28A

Product Description

KYN-28A IP40 protection level 12kV power distribution box
Description:
This power distribution cabinet conforms to the requirements of GB3906-2006 ((3.6-40.5 AC metal enclosed switchgear and control equipment)) and DL/T404 (the technical requirements for indoor AC high-voltage switchgear)
Suitable for 3.6-12kV AC three phase 50Hz single bus power system and it is used as power plant, substation and other departments to accept and distribute electric energy, and to control and monitor the circuit
Operating environment:
1. Ambient temperature: -15 to +40ºC
2. Altitude: <=1000m
3. Relative humidity
Daily average: <=95%
Average value of water vapor pressure: <=2.2kPa
Monthly average: <=90%
Average value of water vapor pressure: <=1.8kPa
4. Seismic intensity: ≤magnitude 8
5. Apply to the places have no fire, no explosion danger and no chemical corrosion
Sizes:
2320 x 650 x 1500/1660/1800mm
2320 x 800 x 1500/1660/1800mm
2320 x 1000 x 1500/1660/1800mm

Item		Unit	Parameters
Rated voltage		kV	7.2 /12
Rated current		Hz	50
Rated current of circuit breaker		A	630\2000
Rated current of switch cabinet		A	630\2000
Rated current of dynamic stability (4S)		KA	16\20\25\31.5\40\50
Rated current of dynamic stability (peak)		KA	40\50\63\80\100\125
Rated short circuit drop-out current		KA	16\20\25\31.5\40\50
Rated short circuit making current (peak)		KA	40\50\63\80\100\125
Rated insulation level	1min power frequency withstand voltage	KA	24	32	42
	Lighting impulse withstand voltage	KA	40	60	75
Protection degree	IP2X shell: IP4X, it is IP2X when compartment and circuit breaker room is open
