12mm Round Head Illuminated Momentary Push Button Switch with LED Light

Name: 12mm Round Head Illuminated Momentary Push Button Switch with LED Light
Brand: all-electronics-online.com
SKU: 793332375
Availability: InStock
Rating: 5 (58 reviews)

Price:	US $ 1-1.13/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	hbs2y-11d
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	12mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V
Termianl:	Pin Terminal
IP:	IP65,IP40, Ik09
Crust Material:	PC
Type:	Composite
Usage:	Reset Button
Kind:	Double-pole on-off Switch
Brand:	Hban

Product Description

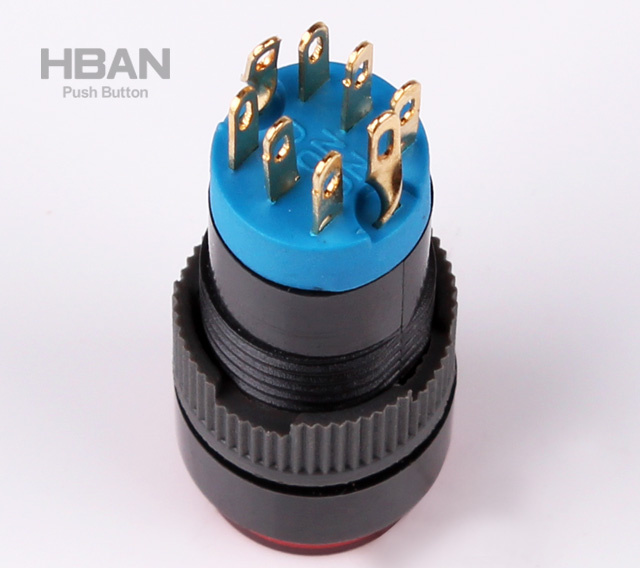

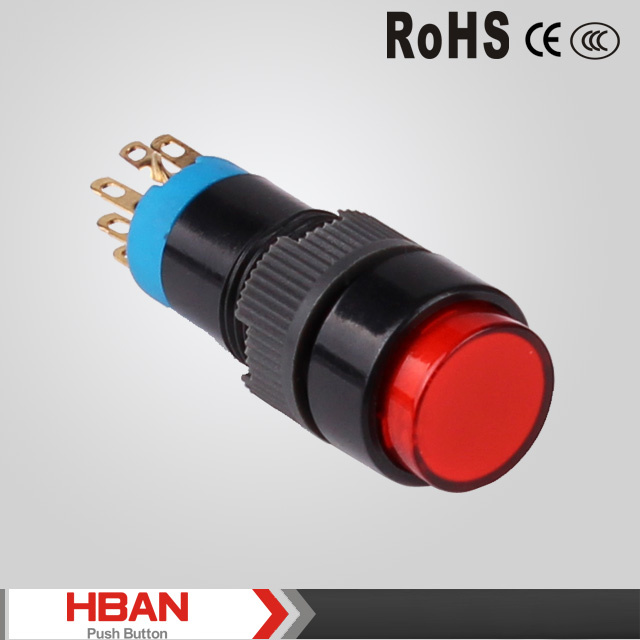

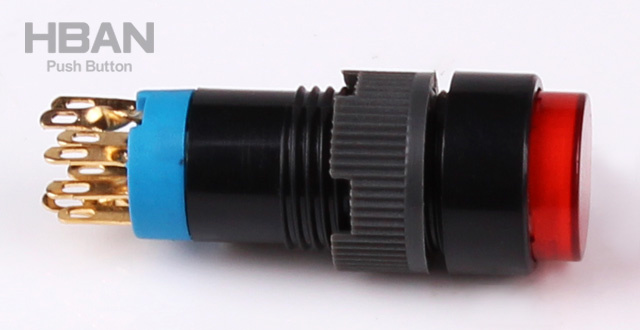

12mm round head illuminated momentary push button switch with led light

Item NO.HBS2Y-11D series

Mounting Hole Size:dia.12mm
Lamp Type:LED
Protection Degree:IP67,IP40,IK10
Lamp Color:Red / Green / Yellow / Orange / Blue / White
The Crust Material: PC
CE ROHS CERTIFICATE
PUSH BUTTON SWITCH

Item NO.		HBS2Y-11D series
Specification		plastic 12m push button switch led
Head Shape		round
Terminal Type		Pin Terminal
Dielectric Strength		2000VAC
Operating Temperature		-20 degree ~ + 55 degree
Panel Thickness		1~10 mm
Torque		5~14Nm
Protection Degree		IP65,IP40,IK10
Material	Shade	PC
	Case	PC
	Base	PBT
Lamp Specification	Type	LED illumination
	Rated Voltage	2V /6V/12V/24V/36V/110V/220V
	Rated Current	About 15mA ~3 mA
	LED Color	Red /Green/Yellow/Orange/Blue/White
	LED Lifetime	50000 hours

Packing Details:

We pack 50 pieces diameter 12 mm plastic signal light into 1 foam box to protect them .We supply 50 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Other imformation

1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 13 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
9) providing samples for free befor placing order

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
