| Prod Model: |
HBGQ12B |
| LED Color: |

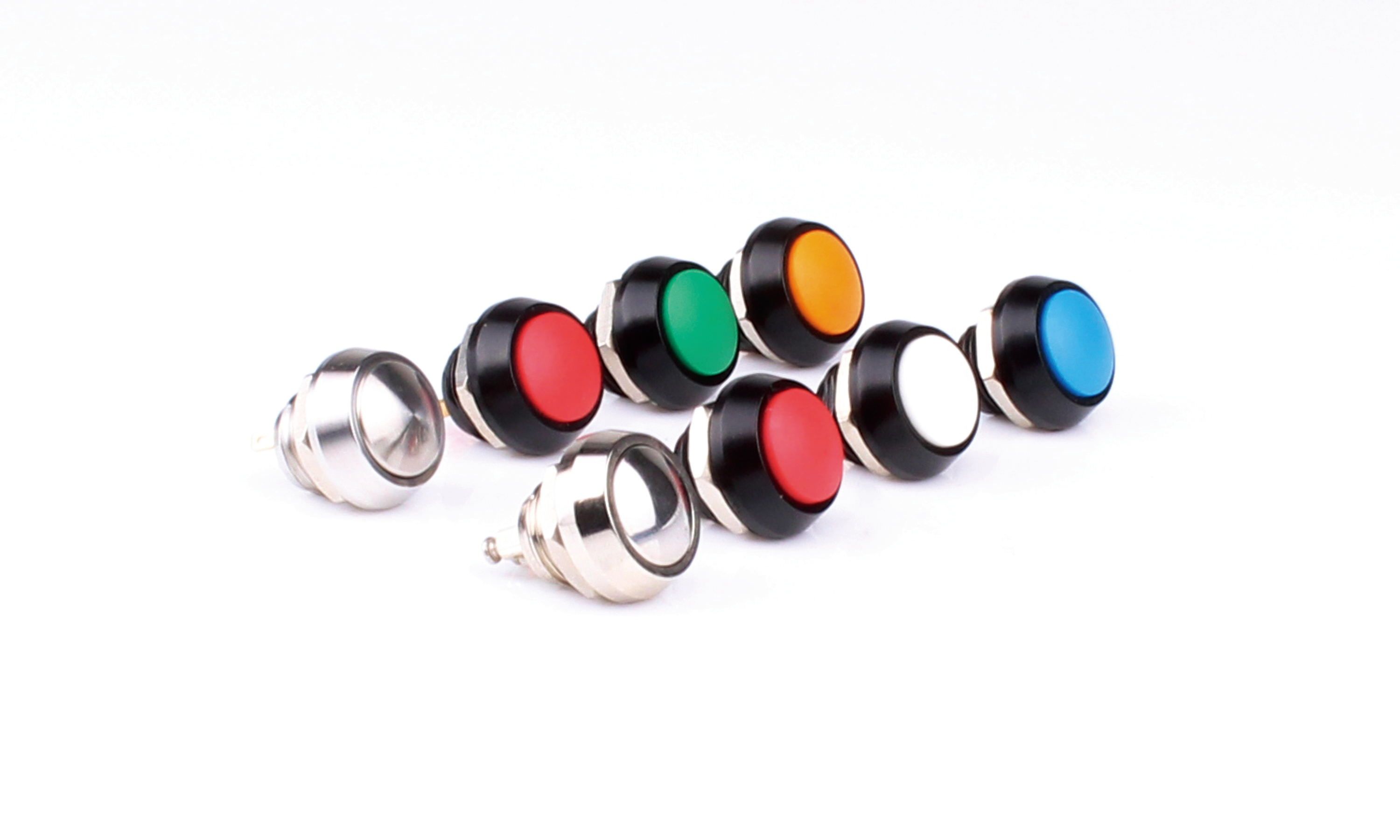

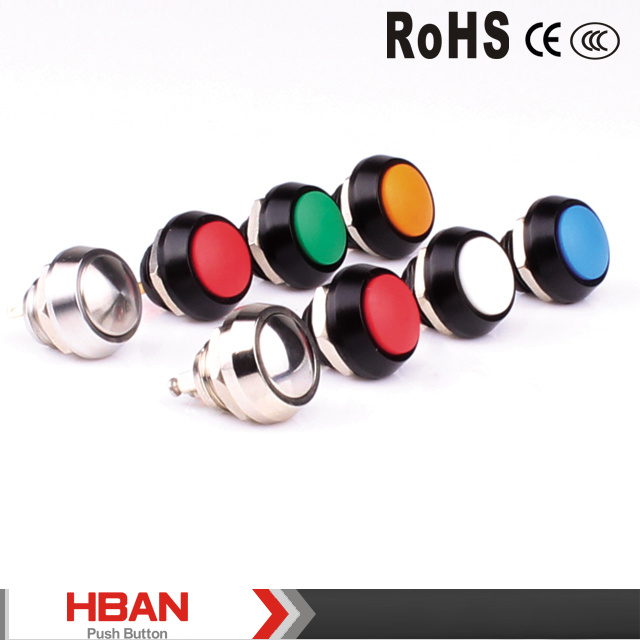

Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
12mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Terminal: |
Scrtew/Pin Terminal |
| IP: |
IP65, Ik08 |
| Crust Material: |
Stainless Steel/Zn-Al Alloy |
| The Front Shape: |
Domed |
| Switch Rating: |
2A/36VDC |
| Dielectric Srtength: |
2000VAC |
| Operatipo Pressure: |
About 4 N |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
Type X Contact |
| Brand: |
Hban |
| Certification: |
RoHS, TUV |
Product Description

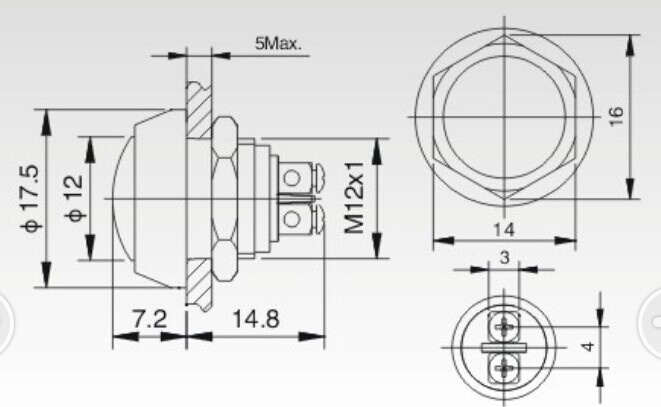

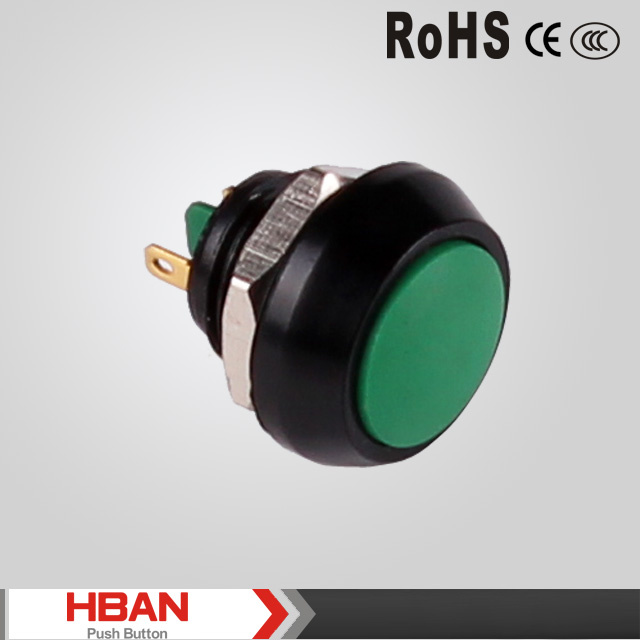

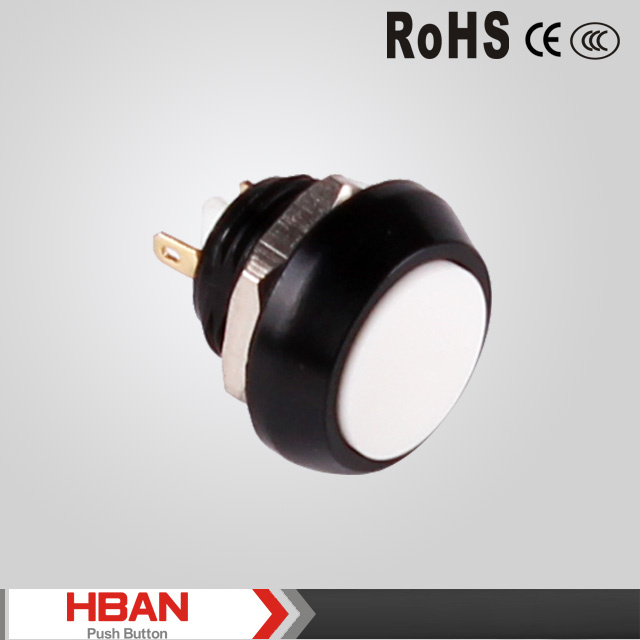

Item No.:HBGQ12B
Mounting Hole Size:Φ12mm
Switch Rating :2A / 36V DC
Front Shape:Domed
Connector:Pin/screw terminal
Crust Material:Stainless Steel / Nickel-plated Brass/zn-al alloy
Protection Degree:IP65,IK08
Packaging Details:
We pack 50 pieces diameter 12mm metal push button switches into 1 foam box to protect them .We supply 50 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
About Us:
Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
Tel : 0086-577-62708000 Fax : 0086-577-62708007
Packing details:
We pack 50 pieces diameter 12mm metal push button switches into 1 foam box .We supply 50 pieces rubber rings and 1 piece guarantee card with these switches.it will packed into a kraft paper box. Finally ,we packed 50 boxes / 25 boxes into a 5 layers corrugated export carton.
About us:
Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.
Tel:0086-577-62708000 Fax :0086-577-62708007
| Item NO. | HBGQ12B-10/A |
| Specification | 1NO,Momentary |
|
|
| Front Head Shape | Flat Round |
| Terminal Type | Screw terminal |
| Switch Type | C Single breakpoint snap-action changeover contacts |
| Switch Specification | Ith:2 A Ui:36V DC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥1000mΩ |
| Dielectric Strength | 2000V |
| Operating Temperature | -22 degree ~+ 55 degree |
| Machanical Life | >1,000,000times |
| Electrical Life | >50,000times |
| Panel Thickness | 1-10mm |
| Torque | 5-14Nm |
| Operating Pressure | 3~5N |
| Protection Degree | about 3.1mm |
| Materisl | Contact | IP65,IK08 |
| Button | Silver Alloy |
| Case | Zn-al Alloy |
| Base | PBT |
