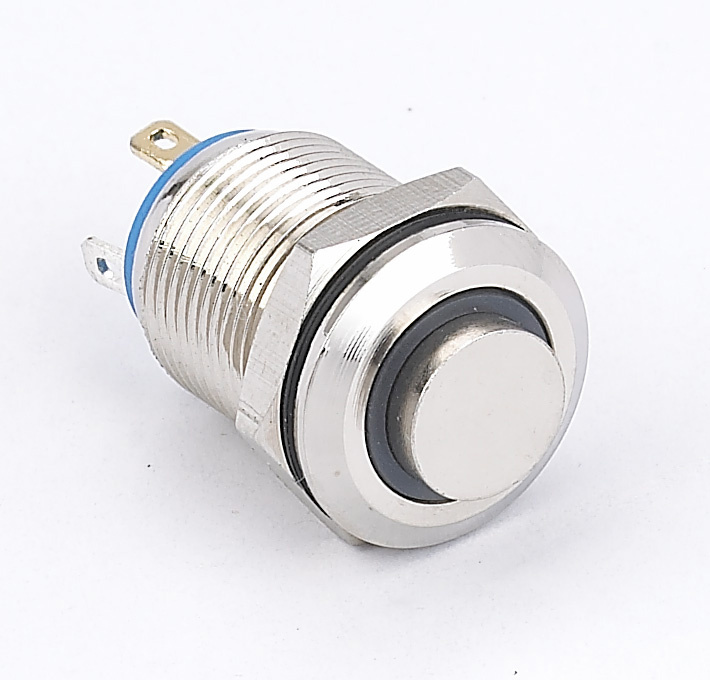

12mm Waterproof Latching on off LED Push Button Switch (CE RoHS UL TUV)

Name: 12mm Waterproof Latching on off LED Push Button Switch (CE RoHS UL TUV)
Brand: all-electronics-online.com
SKU: 791162785
Availability: InStock
Rating: 4.7 (64 reviews)

Price:	US $ 1.5-2.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ12F-10EZ
Mounting Hole Size:	12mm
Waterproof Level:	IP65
Rating:	10mA/12VDC
The Front Head:	High Round Ring Illuminated
Contact Confirguration:	1no
Operation Type:	Latching
The Crust Material:	Stainless Steel and Nickel-Plated Brass
Terminal Type:	Pin Terminal
Mechanical Life:	1000000 Times
Elecrical Life:	200000times
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Contact Type:	X Contact
Brand:	Hban
Certification:	RoHS TUV

Product Description

12mm waterproof latching on off led push button switch (CE ROHS UL TUV)
Mounting hole size:12mm
Switch Rating:100mA/12VDC
Contact confirguration:1NO1NC
Operation Type:Latching
The front shape:Flat Round
The crust material:Stainless Steel and Nickel-plated Brass

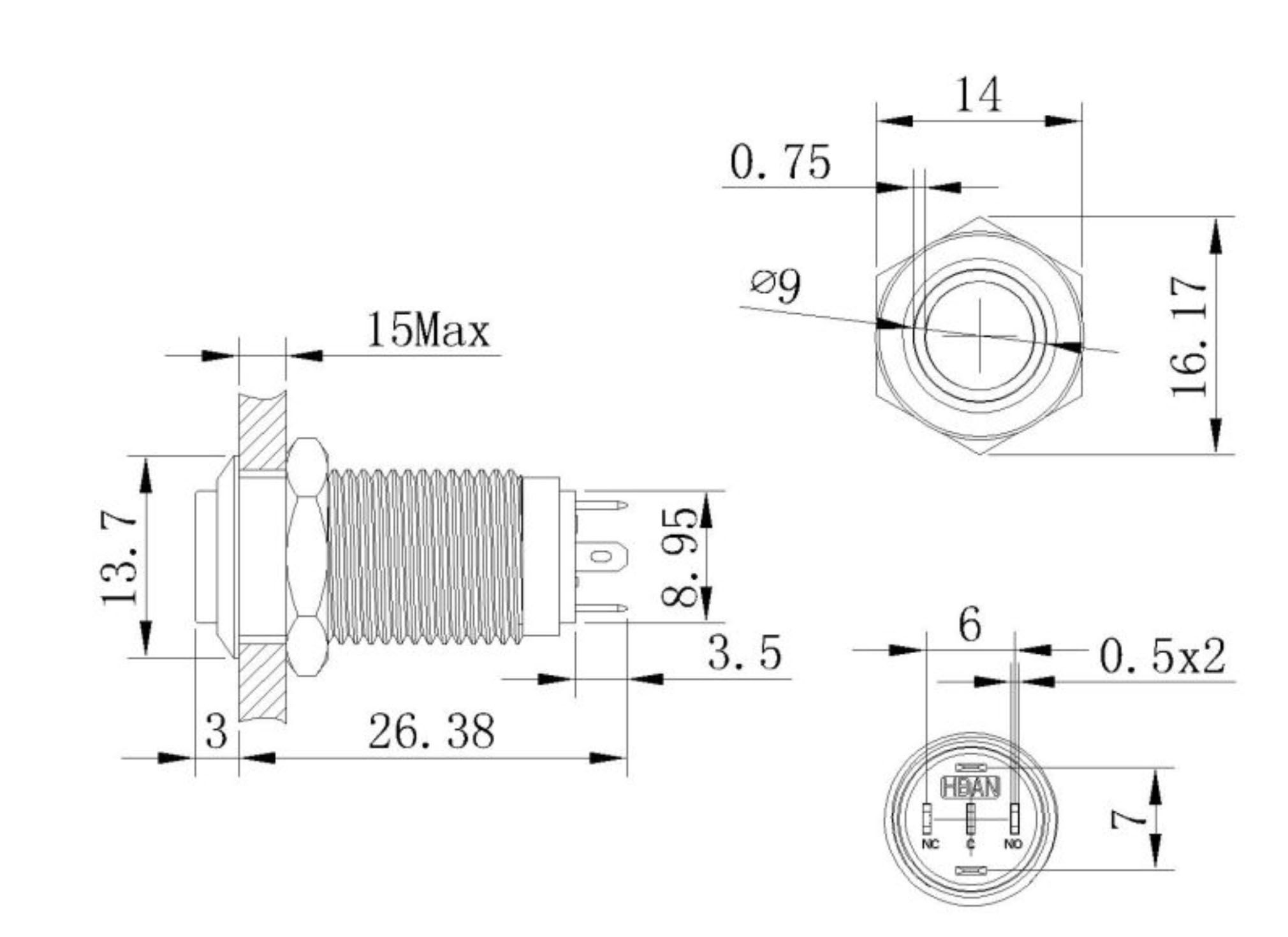

Specification	HBGQ12H-10EZ/J
The Front Shape	High Round
Terminal Type	Pin Terminal(2x0.5mm)
Switch Type	Two terminal breakpoints slow moving contact
Switch Specification	100MA/12VDC
Contact Resistance	<50mΩ
Insulation resistance	>1000mΩ
Dielectric Strength	2000VAC
Operation Temperature	-20ºC~ 55ºC
Mechanical Life	>2,000,000 times
Elecrical Life	>100,000times
Panel Thickness	1~10mm
Torque	5-14Nm
Operation Pressure	About 4N
Operation Stroke	about 1.8mm
Protection Degree	IP65 IK08
Material
Contact	Silver Alloy
Button	Stainless steel Mirror Surfact CD Pattern
Case	Stainless steel or Nickel-plated Brass
Base	PBT
Lamp Parameters
Type	Ring-Illumination
Rated Voltage	2V/6V/12V/24V/36V
Color	R/G/B/W/O
Life	50000 Hours

2.Package:

ITEM	PC/BOX	BOX/CTN	PCS/CTN	CBM
HBGQ12H	50	25	1250	435X380X335

3.RAQ:
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP67 IK10

Would you need LED lamp? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White

4.Catalogue:
