| Prod Model: |
HBGQ12B-10/A |
| Item No.: |
Hbgq12b-10/a |
| Switch Rating: |
2A/36VDC |
| The Front Shape: |
Domed |
| The Crust Material: |
Zn-Al Alloy |
| Protection Degree: |
IP65,Ik08 |
| Manufacturer: |
Hban |
| Original: |
Zhejiang,China |
| LED Color: |

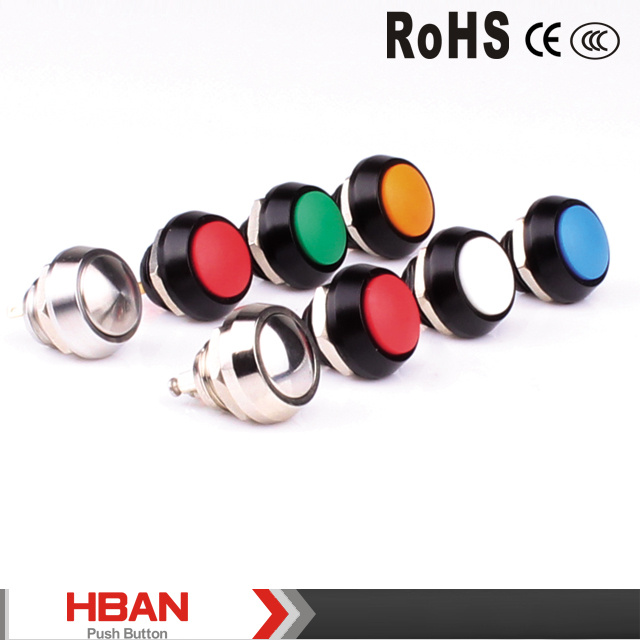

Red, Green, Yellow, Orange, White, Blue |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
Type X Contact |
| Brand: |
Hban |
| Certification: |
RoHS |
Product Description

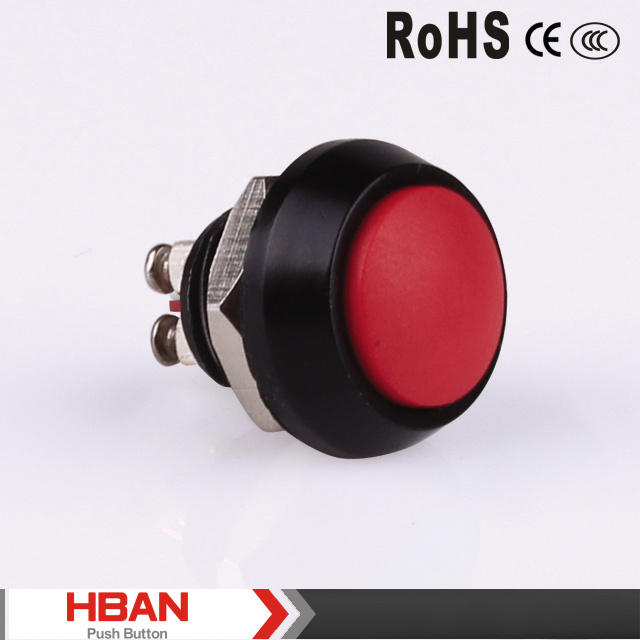

12mm waterproof screw terminal momentary normal open push button switchItem No.:GQ12B-10/A(1NO, Momentary, screw terminal,Zn-al alloy)
Mounting Hole Size: Φ 12mm
Switch Rating: 2A/36VDC
The Front Shape: domed
The Crust Material: Zn-al alloy
Protection Degree: IP65, IK08
PRODUCT SPECIFICATION:
| ITEM,NO | HBGQ12B-10/J/A | HBGQ12B-10/A |
| SPECIFICATION | 1NO,MOMENTARY,ZN-AL ALLOY | 1NO,MOMENTARY,ZEN AL ALLOY |
| FRONT SHAPE | DOMED |

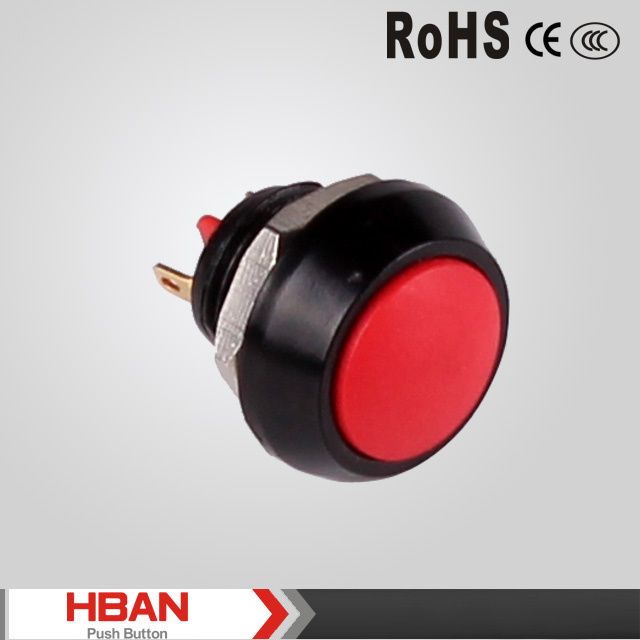

| Terminal type | pin terminal | screw terminal |
| CRUST MATERIAL | ZN-AL ALLOY |
| SWITCH RATING | 2A/36VDC |
| PROTECTION DEGREE | IP65,IK08 |
| TERMINAL TYPE | PIN TERMINAL(2X0.5MM) |
| OPERATIN TEMPRATURE | -20ºC+55ºC |
| DIELECTRIC STRENGTH | 2000VAC |
| MECANICAL LIFE | >1000000 |
| MECHANICAL | >200000 |
| PANNEL THICKNESS | 1-5MM |
| TORQUE | 5-14nNm |
| OPRATING STROKE | ABOUT 2.5MM |
| CONTACT ATERIAL | SILVER ALLOY |
| BUTTON MATERAL | PBT |
| CASE MATERIAL | ZN-AL ALLOY |
| BASE MATERIAL | PBT |
Packging Details:We pack 50 pieces diameter 12mm metal push button switches into 1 foam box to protect them. We supply 50 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10 boxes / 20 boxes into
A 5 layers corrugated export carton.About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
