| Prod Model: |
TL1222 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Normal Capacity: |
2.2ah |
| Hour Rate: |
20 |
| Size: |
70(L)*47(W)*100(H)Mm |
| Weight: |
0.74kg |
| Color: |
Black / White |
| Container Material: |
ABS |
| Charge Voltage (Cycle): |
14.4~15V |
| Charge Voltage (Float): |
13.5~13.80V |
| Designed Lifef: |
3 Years |
| Warranty: |
1 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Toys /Tools |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
Product Description

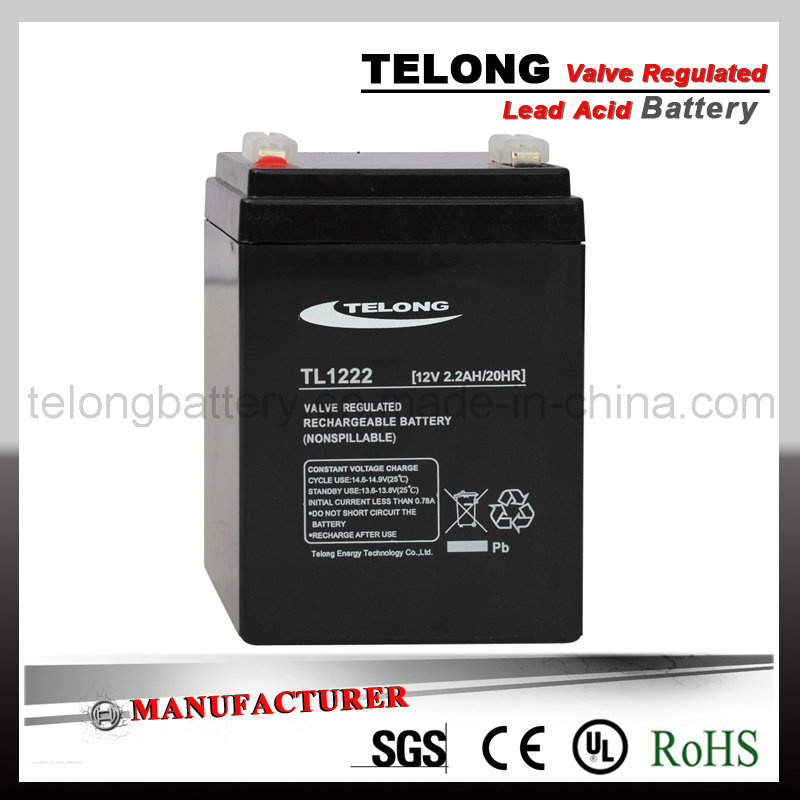

TELONG 12V 2.2Ah AGM Sealed Lead Acid Battery is a maintenance-free storage battery. It has obtained the CE and RoHS authentication of the European Union, UL recognition the USA. The battery is sold to the customers from all over the world and has received good reputation from our partners.
BATTERY CONSTRUCTION of 12V 2.2ah AGM Sealed Lead Acid Battery
| Electrolyte | Positive Plate | Negative Plate | Container |
| Sulfuric acid | Lead dioxide | lead | ABS |
|
| Cover | Safety valve | Terminal | Separator |
| ABS | Rubber | Copper | Fiberglass |
SPECIFICATION of 12V 2.2ah UPS Battery
| Nominal Voltage | 12V |
| Rated capacity (20 hour rate) | 2.2 Ah |
| Dimension | Length | 70mm (2.73 inches) |
| Width | 47mm (1.83 inches) |
| Height | 100mm (3.90inches) |
| Weight Approx | 0.74Kg(1.63Ibs) |
FEATURE
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%
and freedom from electrolyte maintenance or water adding.
2).Not restricted for air transport complies
3).UL CE ROHS-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications.
7).Maintenance-free operation.
8).Low self discharge. Long Life Design
9).Wide Operation Temperature Range
10).Available in flame retardant ABS material for the battery case
CHARACTERISTICS of 12V 2.2ah Rechargeable Lead Acid Battery
Capacity
25'C (77'C) | 20 hour rate(0.11A ) | 2.20AH |
| 10 hour rate(0.176A ) | 1.76AH |
| 1 hour rate(1.32A ) | 1.32AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 74milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
Self-Discharge
25'C (77'F) | Capacity after 3 month storage | 91% |
| Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | F1 |
Charge
(Constant Voltage) | Initial Charging Current less than 0.85 A |
| Voltage 14.4-15.0V |
| Voltage 13.5-13.8V |
APPLICATIONS
Portable Lights / Alarm systems
Power tools / Electric toys
Medical equipments
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS) and other DC power supply.
| Model | Nominal
Voltage
(V) | Nominal
Capacity
(Ah) | Size | NW |
| L | W | H |
| mm | mm | mm | kg |
| TL1212 | 12 | 1.2 | 98 | 45 | 56 | 0.55 |
| TL1222 | 12 | 2.2 | 70 | 47 | 100 | 0.74 |
| 1223 | 12 | 2.3 | 178 | 34 | 60 | 0.95 |
| TL1223 | 12 | 2.6 | 70 | 47 | 100 | 0.84 |
| TL1226 | 12 | 3 | 90 | 70 | 100 | 1.25 |
| TL1232 | 12 | 3.2 | 135 | 67 | 60 | 1.35 |
| TL1240 | 12 | 4 | 90 | 70 | 100 | 1.3 |
| TL1245 | 12 | 4.5 | 90 | 70 | 100 | 1.35 |
| TL1255 | 12 | 5.5 | 90 | 70 | 100 | 1.5 |
| TL1260 | 12 | 6 | 151 | 50 | 95 | 1.6 |
| TL1250 | 12 | 5 | 151 | 65 | 95 | 1.8 |
| TL1270 | 12 | 7 | 151 | 65 | 95 | 2 |
| TL1280 | 12 | 8 | 151 | 65 | 95 | 2.25 |
| TL1290 | 12 | 9 | 151 | 98 | 95 | 3 |
| TL12100 | 12 | 10 | 151 | 98 | 95 | 3.05 |
| TL12120 | 12 | 12 | 151 | 98 | 95 | 3.4 |
| TL12140 | 12 | 14 | 151 | 98 | 95 | 4 |
| TL12150 | 12 | 15 | 181 | 76 | 168 | 4.6 |
| TL12170 | 12 | 17 | 181 | 76 | 168 | 4.9 |
| TL12180 | 12 | 18 | 181 | 76 | 168 | 5.3 |
| TL12190 | 12 | 19 | 181 | 76 | 168 | 5.7 |
| TL12200 | 12 | 20 | 181 | 76 | 168 | 5.9 |
| TL12240 | 12 | 24 | 176 | 166 | 125 | 8 |
| TL12280 | 12 | 28 | 176 | 166 | 125 | 8.6 |
| TL12330 | 12 | 33 | 196 | 133 | 172 | 10.5 |
| TL12380 | 12 | 38 | 196 | 165 | 175 | 13 |
| TL12450 | 12 | 45 | 196 | 165 | 175 | 15 |
| TL12550 | 12 | 55 | 230 | 138 | 208 | 15.5 |
| TL12600 | 12 | 60 | 348 | 168 | 178 | 18.5 |
| TL12650 | 12 | 65 | 348 | 168 | 178 | 20.5 |
| TL12800 | 12 | 80 | 348 | 168 | 178 | 23 |
| TL12900 | 12 | 90 | 307 | 170 | 208 | 26 |
| TL121000 | 12 | 100 | 328 | 171 | 214 | 30 |
| TL121200A | 12 | 120 | 328 | 171 | 214 | 31.5 |
| TL121200B | 12 | 120 | 409 | 177 | 229 | 35 |
| TL121500 | 12 | 150 | 483 | 170 | 240 | 43 |
| TL122000 | 12 | 200 | 522 | 240 | 219 | 60 |
| TL122200 | 12 | 220 | 522 | 240 | 219 | 65 |
| TL122500 | 12 | 250 | 520 | 268 | 220 | 74 |
