12V 20A 18CH Output CCTV Camera Switching Power Supply
| Price: |
US $ 22-25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
AD-S12200A-18CH |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Form: |
Partly-Welded Type |
| Operation Voltage: |
AC100V-240V |
| Size: |
1/2 Uint |
| Application Range: |
Camera, IR Illuminators, Video Process Equipment |
| Shell Material: |
Steel Plate |
| Shell Protection Grade: |
IP30 |
| Cooling Methed: |
Natural Cooling |
| Input Frequency Range: |
50/60Hz |
| Certification: |
FCC |
| Brand: |
Sanyi Power |
Product Description

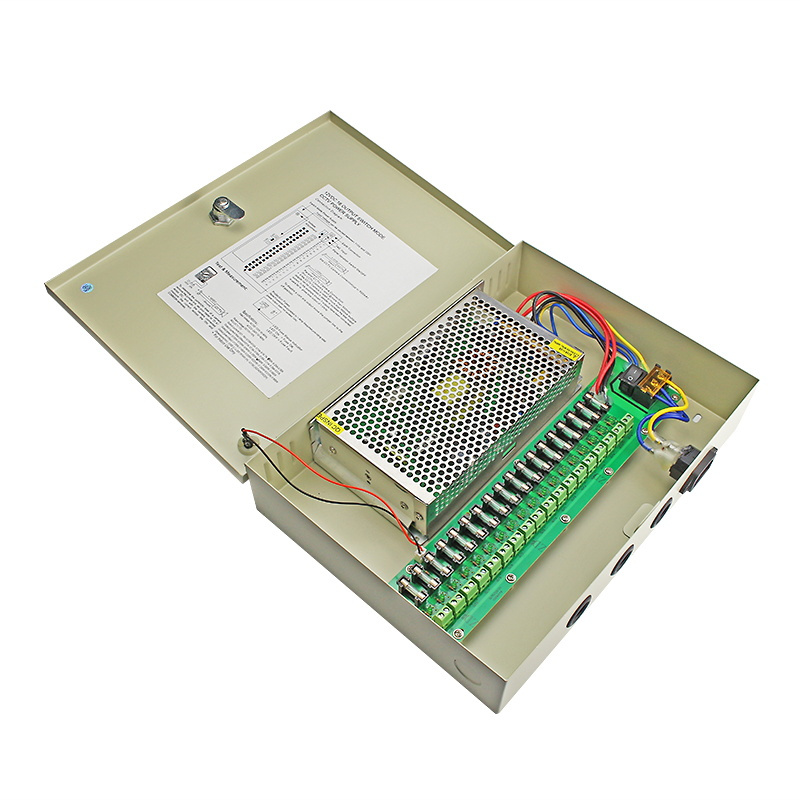

Product Description1.Features:>18 Channel CCTV power supply box 12V/20A
>With short circuit, over current, over voltage protection
>AC power LED indicator
>Power ON/OFF switch
>100% full load burn-in test
>Application:Camera, IR Illuminators, Video Process Equipment, etc.
>Output fuse type: Glass fuse (Standard); PTC fuse available
>The 18 individually fused outputs supply power to operate CCTV cameras and other video accessories.
9 channel & 4 channel power box also available with output 12V@3A 12V@4A 12V@5A 12V@10A 12V@15A 12V@20A 12V@30A
12V 20A 18CH Technical Specification
2.Specifications:
| Model No. | AD-S12200AA |
| Input | Voltage | AC 100-240V Worldwide |
| Vibration Input Voltage Range | AC 95-265V |
| Frequency | 50-60Hz |
| Output | Voltage | DC 12V |
| Current | 20A |
| Power | 240W |
| Typical Efficiency | 85% |
| Adjustable Range of Voltage | ±10% |
| Max. Ripple & Noise | 120mVp-p |
| Protection | Over Load | 105-115% of Rated Output Power |
| Short Circuit | Protection Type: Auto Recovery |
| | AC Current(Typ.) | 3.5A/220VAC |
| Environment | Working temperature and humidity | -10°C~+60°C |
| Store temperature and humidity | -30°C~75°C,10~98%RH- |
| MTBF | ≥100000h |
| Warranty | 2 years |
| Feature | Dimension(L*W*H) | 350*215*62mm |
| Weight | 1.8KG |
| PCS/CTN | 12 PCS/CTN |
| GW/CTN | 21.6 kg |
| Safety & EMC | Safety Standards | EN55022/EN61000-3-2/EN61000-3-3 |
