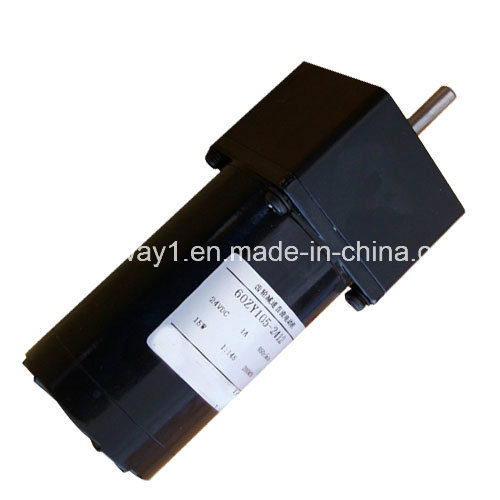

12V, 24V PMDC Gear Motor for Machine

Name: 12V, 24V PMDC Gear Motor for Machine
Brand: all-electronics-online.com
SKU: 773942575
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	60ZYT75-70SPGS80
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	60mm
Motor Length:	77mm
Motor Voltage:	12V , 24V
Motor Weight:	1.6kg
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

Gearbox with diameter 60mm, allowed torque 5N.m
Fit for alloy steel gears, all bearing configuration, low noise.

Motor Technical Data

Model	Rated Voltage (VDC)	No-load Speed (r/min)	No-load Current (mA)	Rated Speed (r/min)	Rated Torque (g.cm)	Output Power (W)	Pated Current (mA)	Stall Torque (kg.cm)	Stall Current (A)
60ZYT75-2420	24	2000	0.3	1500	350	5	0.8	1.9	2.4
60ZYT105-2430	24	3000	0.4	2500	400	10	1.1	2.6	5.0
60ZYT105-2420	24	2000	0.32	1550	1250	20	1.6	5.5	6.0
60ZYT105-2430	24	3000	0.40	2500	1200	30	2.2	7.2	10.8

Gear motor Technical Data

Motor type	70SPGS80/ 60ZYT75-2420					70SPGS80/ 60ZYT75-2420
Reduction ratio	75	90	100	120	150	75	90	100	120	150
Number of gear trains	4	4	4	4	4	4	4	4	4	4
No-load speed r/min	27	22	20	17	13	40	33	30	25	20
Rated speed r/min	20	17	15	12	10	33	28	25	21	17
Rated torque N.m	17	21	23	27	34	20	24	26	31	39
Max.permissible load in a short time	160	160	160	160	160	160	160	160	160	160
Direction of Rotation	CW	CW	CW	CW	CW	CW	CW	CW	CW	CW

Motor type	70SPGS80/ 60ZYT75-2420							70SPGS80/ 60ZYT75-2430
Reduction ratio	50	60	75	90	100	120	150	50	60	75	90	100	120	150
Number of grea trains	3	3	4	4	4	4	4	3	3	4	4	4	4	4
No-load speed r/min	40	33	27	22	20	17	13	60	50	40	33	30	25	20
Rated speed r/min	31	26	22	19	17	15	12	50	42	34	29	27	23	18
Rated torque N.m	45	54	61	73	80	80	80	40	51	59	50	78	80	80
Max.permissible load in a short time	100	100	160	160	160	160	160	100	100	160	160	160	160	160
Direction of Rotation	CCW	CCW	CW	CW	CW	CW	CW	CCW	CCW	CCW	CW	CW	CW	CW

The specifications can be designed according to the customer's requirement !
