Zhejiang Ximeng Electronic Technology Co., Ltd. >> 12V-24VDC 20A DC-DC Converter Car Power Supply

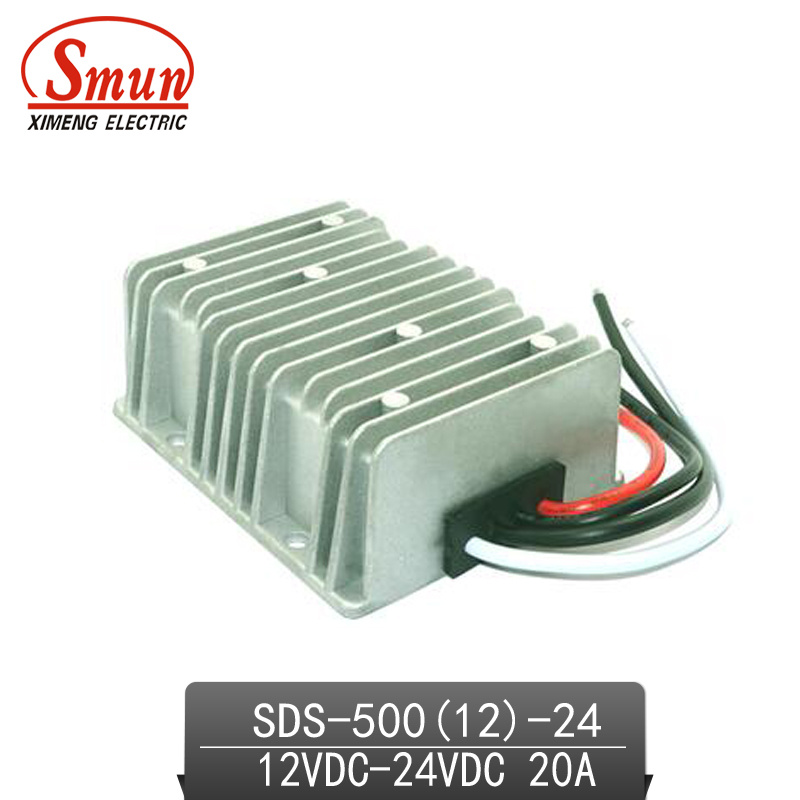

12V-24VDC 20A DC-DC Converter Car Power Supply

12V-24VDC 20A DC-DC Converter Car Power Supply
Price: US $ 21-27.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-480(12)-24
Rated Power: 360W
Input Voltage Range: 9-18V DC
Output Voltage: 24VDC
Output Current: 20A
Size: 100*80*39mm
Waterproof IP: IP68
Efficiency: up to 94%
Weight: 460g
Working Temperature: -40°c ~ +80°c
Short-Circuit Protection: No
Output Type: Single
Warranty: 1 Year
Output Power: 401 - 500W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 12VDC
Brand: Smun

Product Description

12V-24VDC 20A DC-DC Converter


Input
VoltageDC 12V
Input voltage rangeDC 10-24V
Output
Voltage:DC 24V
Current Range2A3A5A10A15A20A
Output Power48W72W120W240W360W480W
Frequency50HZ/60HZ
Soft start time~500ms
Conversion efficiency>80%
Working temperature-20~80ºC
Ripple40MV
Power Consumption60MA
Load regulation± 2%
Voltage regulation±1%
Measurement64*75.5*22.5mm74*74*32mm111*96*52mm
Weight140g300g500g
SpecificationOver-current protection
Overheat protection
automatic recovery
Full waterproof potting

Wiring Way:
Input(+):Red
Input(-):Black
Output(+):Yellow(White)
Output(-):Black
Pls Note:Do not install the product with wrong wiring,Otherwise,it will damage the goods and don't work.
