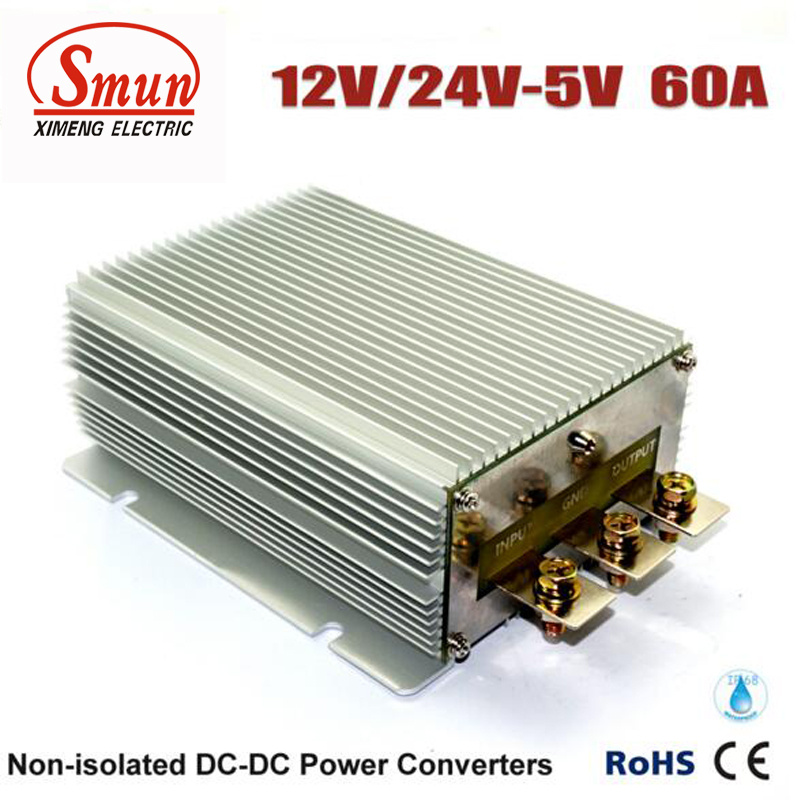

12V/24VDC to 5VDC 60A Car DC Converter Power Supply

12V/24VDC to 5VDC 60A Car DC Converter Power Supply
Price: US $ 34-43/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: SDJ-300(12/24)-5
Output Rated Power: 300W
Input Voltage Range: 10-35VDC
Output Voltage: 5V
Output Current: 60A
Efficiency: up to 95%
Waterproof: IP68
Working Temperature: -40°c to +80°c
Warranty: 1 Year
Weight: 1.5kg
Have In Stock: Yes
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Power Supply Voltage: 12V/24V (Auto Working)
Brand: Smun

Product Description

 Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-35Vdc
4. Industry grade DC12V/24V to DC5V step-down converter, high efficiency up to 95%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:
ModelSDJ-300(12/24)-5
Input rated voltage12V/24V DC
Input voltage range10-35V DC
Efficiency96% (half load), 95% (full load)
Output voltage5V DC
Output current60 Amps
Output rated power300 Watts
Output peak power370 Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple (Full load test)< 100mV
No-load current50~60mA
Working temperature-40°c ~ +80°c
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionYES
Machine size182*127*63mm
Package size230*150*100mm
N. Weight1.5kg
G. Weight1.63kg
Cooling wayFree air convection
OtherCarton packaging
