12V 26ah Portable UPS Battery for Laptop Computer
| Price: |
US $ 400-500/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
Pes-500C |
| Weight: |
3.6kg, 3.2kg, 3.0kg |
| Color: |
Yellow or Customized |
| Charging Time: |
5-6h, 6-7h, 7-8h |
| Battery Capacity: |
453wh, 345wh, 288wh |
| Size: |
11*13.5*28cm |
| Type: |
Lithium-Ion Batteries |
| Usage: |
LCD TV, Computer, Printer |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Medium Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Product DiscriptionFeaturing the world's first dual function portableAC power station with built-in UPS.With a
capacity of 12V26AH/288WH ofpower,the UPS-M500 packs enough power to last your
desktop PC for 2-3 hours during a blackout.At the same time,this portable power station
weighs only 3kg and can be immediatelytransformed into a battery pack to power a fan or
your laptop computer in the outdoors.
Using the most advanced lithium battery and invertertechnology,the UPS-M500 offers a
unique and simple solution to everyday power woes.Not only does it offer higher power with
AC output function,it also features proprietary inverter technology where conventional
invertercannot match,therefore reducing in weight and size where no other productscan
m atch.

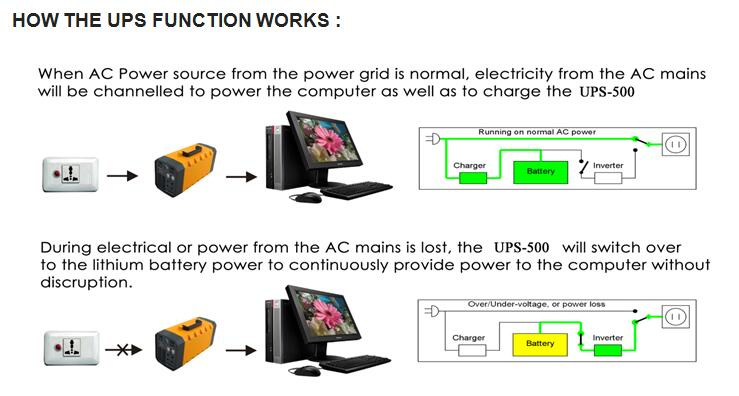

WHEN USING AC OUTPUTPOWERAs shown in the image.Plug in the AC input power cord to the wall socketand connectto
the UPS-M500.Then connectyour device load to the UPS-M500.Turn on AC mains power,
then turn on AC power ON/OFF switch on UPS-M500.
When the AC mains power (wall socket) is normal,your deviceswill draw power directly
fromthe AC mains.(wall socket).Atthe sametime,it will charge the UPS-M500aswell,the

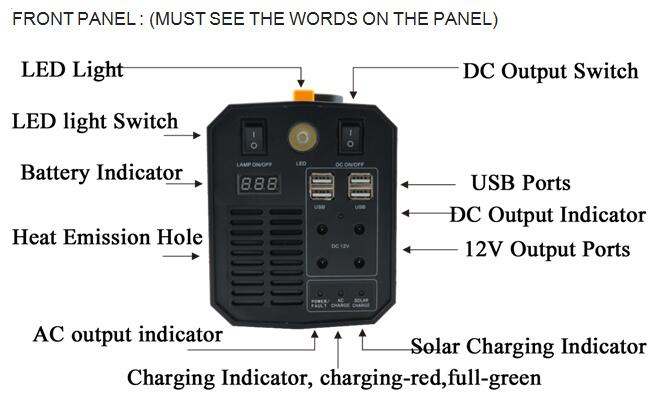

LED light on the front panel will indicate RED on charging and GREEN when full.
When a power trip or blackout occurs,the UPS-M500will automatically switchoverto power
yourequipments using the Lithium batterywithin.IMPORTANT :DO NOT CONNECTTHE UPS-M500TO EQUIPMENTS OF LOADTHAT IS MORE
THAN 500W.
OVERLOADING OCCURSWHEN YOUR CONNECTED LOAD EXCEEDS 500W.
WHENTHIS HAPPENS,THE UPS-M500WILL SHUT DOWN.
REDUCEYOUR EQUIPMENTLOADAND TRYAGAIN.
IN RARE CASES,WHEN THE UPS-M500 ENCOUNTERSAN EXTERNAL SHORT-
CIRCUITOR UNUSUALPOWER SURGE,THE EXTERNAL FUSEWILL BREAK
WHEN THIS HAPPEN,YOU CAN JUST REPLACEDTHE FUSE.
FORAC230V,USE 5A FUSE,FORAC110V,USE 8A FUSE.
NOTE: When bringing the UPS-M500 for outdoor use,please rememberto turn offthe AC
powerswitch when not in use to prevent power drainaqe.WHEN USING DC OUTPUTPOWERPleaseturn on DC ON/OFF switch.The LED light will be lighted up.Now the USB and 12V
DCportwill be readyto be used.Afterusing,remembertoturn offthe DC ON/OFF switchto
prevent powerdrainage.
The display panel will show the battery capacity,when the percentage shown is low,please
chargethe unit accordingly.To use the LED lamp,please turn on the LAMP ON/OFF switch.SOLARCHARGINCUsethe SOLAR CHARGE input port for solar charging.The specificationsforthe solar panel
haveto be 18V output and maximum of 100W only.When connecting to the solar panel,
please make sure that the polarity must be correct,if not,the solar charging will not work
and the LED light will appear RED.
SAFETY :This product contains lithium-ion battery,keep away from fire,dispose appropriately.
b) Do not use this product in a humid environment or near water,pay attention to keep dry,as far as possible use only in a dry environment.
c)Handle gently,do not drop,hammer,or pierce with a sharp object.
d) In the event that the power supply emit smoke,fire,or any other phenomena,should
immediately stop using,power it off and unplug all connected devices.In case of fire,the use offire extinguishers is necessary,due to the chemical composition of lithium battery,do not uswater! May cause explosion.
e)Always ensure the power supply is used in a ventilated environment to prevent overheating.When overheated,the power supply will shut down for self-protection.
f)lf the product is not being used for a long period of time,should be charged every 4-5 months to maintainthe batteryshelf life.
g) Do not store the power supply for long period of time without any charge,always maintain acharge of minimum40%.Inthis way,the battery cellswill not deteriorate.
