12V 400W 33.3A Bis Rainproof LED Power Supply SMPS

Name: 12V 400W 33.3A Bis Rainproof LED Power Supply SMPS
Brand: all-electronics-online.com
SKU: 760046285
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 15.2-15.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LHDV-12E400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Constant Voltage
Output Power:	400W
Output Voltage:	12V
Input Voltage:	170-250V
IP Rating:	IP67
Warranty:	2 Years Warranty
Size:	185.5112.556.5mm
Use:	for Spot Light, Down Light, Panel Light
Case:	Aluminum Case
IP Rate:	IP23 Rainproof
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage
Certification:	Ce, EMC, Bis
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

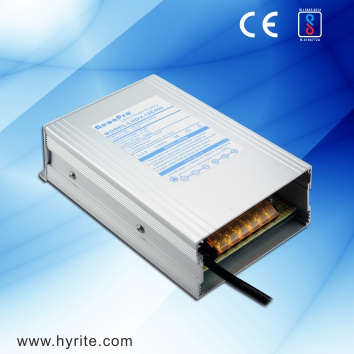

12V 400W 33.3A BIS Rainproof LED Power Supply SMPS

Features of Rainproof SMPS
1. Rainproof, IP23
2. Constant voltage output.
3. High transfer efficiency.
4. Compact size, easy for installation.
5. Cost effective model for outdoor applications.
6. Special heat dissipation design with aluminium housing and hot start ventilating fan.
7. Safety design with separated AC input power cord and DC output terminals, preventing electric leakage or short circuit by water.

Applications of Rainproof SMPS
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
LED Signage
Designed for outdoor signage, decoration or lighting applications.
Used for LED module, strip, perforating lamp, pixel lamp, light bar, light box, wall washer, panel light, etc…

Specification of Rainproof SMPS

Model no.	LHDV-12E400
Model series	LHDV
Input voltage	180-250 VAC 50/60 Hz
Power	400 W max
Output type	Constant voltage
Efficiency	83%
Output voltage	12VDC ± 5%
Output current	33.33A max
Operating temperature	-25~40ºC
Installation	Outdoor rainproof
IP rating	IP 24
Cooling	Built-in electric fan

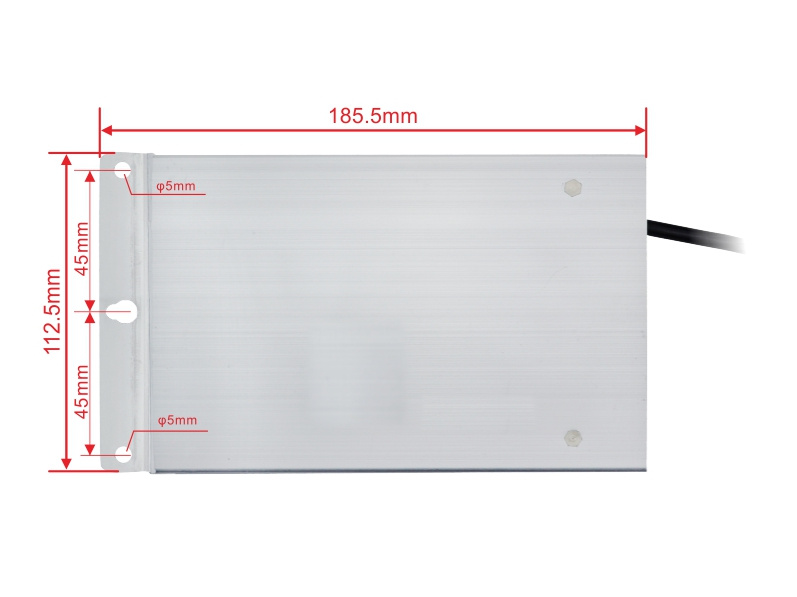

Dimensions(LWH)	185.5112.556.5 mm
Weight(kg)	0.7500
Packing information	20 Pcs/ Carton, G.W 15 KG

More pictures of Rainproof SMPS

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
