| Prod Model: |
TL12550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimenstions: |
230(L)*138(W)208(H)Mm |
| Weight: |
15.5kg |
| Color: |
Black/ Grey/ White |
| Terminal: |
T16 |
| Container Material: |
ABS |
| Charge (Cycle Use): |
14.4~15.0V |
| Charge (Standby Use): |
13.5~13.8V |
| Designed Life: |
5 Years |
| Warranty: |
2 Year |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar / Wind System,Communication Equipment |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
TELONG ENERGY TECHNOLOGY CO.,LTD
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.

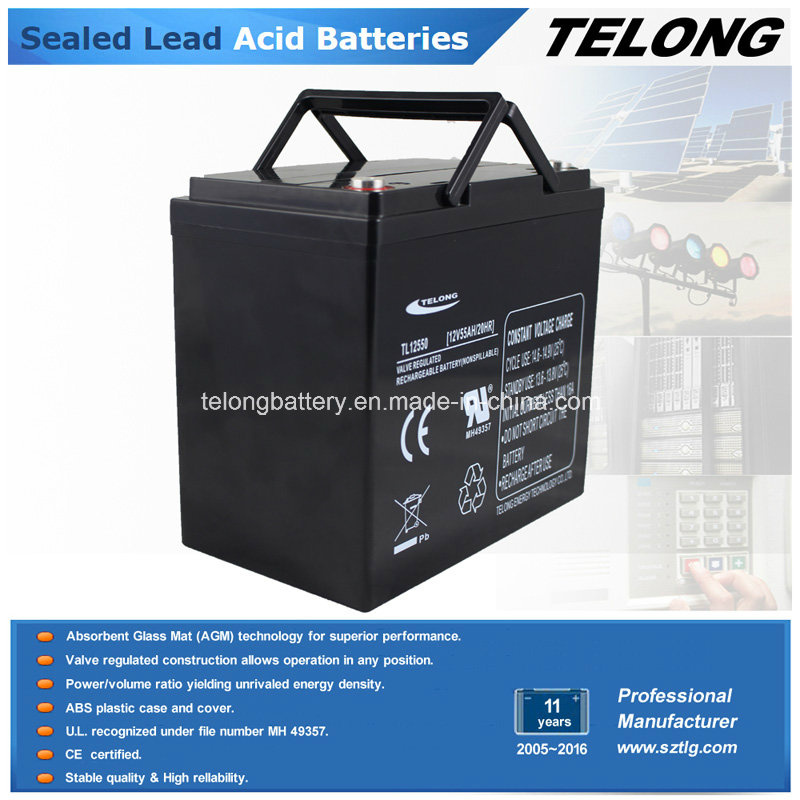

_____________________________________________TL12550(12v55ah)_____________________________________________
BATTERY CONSTRUCTION
| Component | Positive Plate | Negative Plate | Container |
| Raw material | Lead dioxide | lead | ABS |
| Cover | Safety valve | Terminal | Separator | Electrolyte |
| ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
SPECIFICATION
| Nominal Voltage | 12V |
| Rated capacity (10 hour rate) | 55 Ah |
| Dimension | Length | 230mm (8.97 inches) |
| Width | 138mm (5.38 inches) |
| Height | 208mm (8.11inches) |
| Weight Approx | 15.5Kg(34.18Ibs) |
_________________________________________________FEATURE__________________________________________________
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-
dom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
3).UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case
_____________________________________________CHARACTERISTICS______________________________________________
| Capacity | 10 hour rate(5.5A ) | 55.0AH |
| 25'C (77'C) | 5 hour rate(8.8A ) | 44.0AH |
| 1 hour rate(33.0A ) | 33.0AH |
| Internal Resistance | Full charged Battery at 25 'C(77'F ) | 6.5 milli-ohm |
| Capacity affected by Temp | 40'C (104F) | 102% |
| 25'C (77'F) | 100% |
| 0'C (32'F) | 85% |
| (-15'C )5'F | 65% |
| Self-Discharge | Capacity after 3 month storage | 91% |
| 25'C (77'F) | Capacity after 6 month storage | 82% |
| Capacity after 12 month storage | 64% |
| Terminal | T16 |
| Charge | Cycle | Initial Charging Current less than 22A |
| (Constant Voltage) | Voltage 14.4-15.0V |
| Float | Voltage 13.5-13.8 V |
______________________________________________APPLICATIONS________________________________________________
UPS
Solar / wind System
Traffic Signal
Electric Power Supply
Communication Power Supply
DC power Supply
Other standby or primary power supplies.
__________________________________________________CATALOG_____________________________________________________
Model | Normal
Voltage
(v) | Normal Capacity
(Ah) | Size | NW
(kg) | Terminal |
| L | W | H | TH |
| mm | mm | mm | mm |
| TL12300A | 12 | 30 | 166 | 175 | 125 | 125 | 8.8 | F4 |
| TL12300B | 12 | 30 | 195 | 130 | 155 | 180 | 9.7 | F7 |
| TL12300C | 12 | 30 | 195 | 130 | 155 | 180 | 9.7 | F11 |
| TL12330A | 12 | 33 | 195 | 130 | 155 | 180 | 10.2 | F7 |
| TL12330B | 12 | 33 | 195 | 130 | 155 | 168 | 10.2 | F11 |
| TL12400A | 12 | 40 | 197 | 165 | 170 | 170 | 12.8 | F4 |
| TL12400B | 12 | 40 | 197 | 165 | 170 | 170 | 12.8 | F11 |
| TL12420A | 12 | 42 | 197 | 165 | 170 | 170 | 13.2 | F4 |
| TL12420B | 12 | 42 | 197 | 165 | 170 | 170 | 13.2 | F11 |
| TL12450A | 12 | 45 | 197 | 165 | 170 | 170 | 13.5 | F4 |
| TL12450B | 12 | 45 | 197 | 165 | 170 | 170 | 13.5 | F11 |
| TL12450C | 12 | 45 | 197 | 165 | 170 | 170 | 13.8 | F4 |
| TL12450D | 12 | 45 | 197 | 165 | 170 | 170 | 13.8 | F11 |
| TL12500A | 12 | 50 | 257 | 132 | 200 | 200 | 16 | F4/F11 |
| TL12500B | 12 | 50 | 250 | 160 | 178 | 197 | 15.8 | F5 |
| TL12550A | 12 | 55 | 229 | 138 | 208 | 212 | 17.4 | F11 |
| TL12550B | 12 | 55 | 229 | 138 | 208 | 227 | 17.4 | F5 |
| TL12550C | 12 | 55 | 229 | 138 | 208 | 227 | 16.2 | F5 |
| TL12550D | 12 | 55 | 229 | 132 | 205 | 210 | 16.6 | F11 |
| TL12600A | 12 | 60 | 250 | 160 | 178 | 197 | 18 | F5 |
| TL12600B | 12 | 60 | 259 | 168 | 208 | 214 | 18.5 | F17/F21 |
| TL12650A | 12 | 65 | 350 | 167 | 179 | 179 | 19.6 | F5 |
| TL12650B | 12 | 65 | 350 | 167 | 179 | 179 | 19.6 | F11 |
| TL12750A | 12 | 75 | 258 | 166 | 206 | 210 | 22 | F11 |
| TL12750B | 12 | 75 | 258 | 166 | 206 | 235 | 22 | F9 |
| TL12750C | 12 | 75 | 260 | 169 | 208 | 212 | 22.5 | F21 |
| TL12750D | 12 | 75 | 260 | 169 | 208 | 231 | 22.5 | F17 |
| TL12750E | 12 | 75 | 260 | 169 | 208 | 228 | 22 | SAM |
| TL12800A | 12 | 80 | 350 | 167 | 179 | 179 | 22 | F5 |
| TL12800B | 12 | 80 | 350 | 167 | 179 | 179 | 22 | F11 |
| TL12900A | 12 | 90 | 306 | 169 | 208 | 212 | 26.5 | F21 |
| TL12900B | 12 | 90 | 306 | 169 | 208 | 231 | 26.5 | F17 |
| TL121000A | 12 | 100 | 328 | 171 | 214 | 220 | 30.5 | F5 |
| TL121000B | 12 | 100 | 328 | 171 | 214 | 218 | 30.5 | F12 |
| TL121000C | 12 | 100 | 328 | 171 | 214 | 234 | 28.2 | SAM |
| TL121150A | 12 | 115 | 328 | 171 | 214 | 220 | 32.5 | F5 |
| TL121150B | 12 | 115 | 328 | 171 | 214 | 218 | 32.5 | F12 |
| TL121200A | 12 | 120 | 410 | 176 | 227 | 227 | 35.5 | F5 |
| TL121200B | 12 | 120 | 410 | 176 | 227 | 227 | 35.5 | F12 |
| TL121200C | 12 | 120 | 410 | 176 | 227 | 240 | 33.5 | SAM |
| TL121340 | 12 | 134 | 341 | 173 | 283 | 288 | 40 | F12 |
| TL121500A | 12 | 150 | 482 | 170 | 242 | 242 | 44.5 | F5 |
| TL121500B | 12 | 150 | 482 | 170 | 242 | 242 | 44.5 | F12 |
| TL121800A | 12 | 180 | 522 | 238 | 218 | 222 | 55.5 | F12 |
| TL121800B | 12 | 180 | 522 | 238 | 218 | 240 | 55.5 | F16 |
| TL122000A | 12 | 200 | 522 | 238 | 218 | 222 | 60 | F12 |
| TL122000B | 12 | 200 | 522 | 238 | 218 | 240 | 60 | F16 |
| TL122200A | 12 | 220 | 522 | 238 | 218 | 222 | 62 | F12 |
| TL122200B | 12 | 220 | 522 | 238 | 218 | 240 | 62 | F16 |
| TL122250A | 12 | 225 | 522 | 238 | 218 | 222 | 63 | F12 |
| TL122250B | 12 | 225 | 522 | 238 | 218 | 240 | 63 | F16 |
| TL122500 | 12 | 250 | 520 | 269 | 220 | 224 | 69.5 | F12 |
