| Prod Model: |
KA-DP20B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
Two Years |
| Certificate: |
CE & RoHS |
| Delivery Time: |
Within 10 Days |
| Samples: |
Available |
| Output: |
Switching Sensor |
| Usage: |
Light Sensor |
| Material: |
PC |
Product Description
KA-DP20B 12V Dimmable Radar Sensor Specification:1) Working voltage : 12-40V
2) Power supply frequency : 50/60Hz
3) Load power : 60W Max. (LED lamp)
4) Working temperature : -20 ~ +60
5) Limited temperature : -35 ~ +75
6) Microwave frequency : 5.8GHz CW electric wave,ISM band
7) Microwave output power : <10mw
8) Sensing distance : 1m~12m (Raddi.) (Adjustable)
9) Sensing time delay : 8sec~12min (Adjustable)
10) Light Control: 2-2000LUX (adustable)
11) Detection Angle: 360 degree
12) Installation: indoor or walls,etc (ceiling mounted)
13) Installation height : 2m~3.5m (2.5m Suggested )
14) The standby brightness is agjustable from 0-60%.15) KA-DP20A is using together with LED driver, it will automatically turn down the brightness when nobody there at a short time (The users can set up the brightness by themselves according to the actual usage), and the light will quickly start to enter in a full-brightness status.Product introduction:
KA-DP20B is according to the microwave doppler effect , it can be widely used in as automatic control switch, the security system, and Automatic video control system of ATM, as well as other automatic induction control area. The Detection way has the below advantages compared with other as follows: 1. Non-contact Detection, 2. Suitable for bad environment, immune to temperature, humidity, noise, air, dust, Light^3. RF interference ability, 4. Transmission power only 0.2 mW, It will not harm the human Body. Simple installation+ easy wiring. We use appropriative micro processing integrator, not Only for high sensitivity and wide range of detection, and on very reliable work, error rate is Extremely low, It can stable working on the temperature range: - 20 ~ + 70 Celsius degrees.
NOTE: The high-frequency output of this sensor is <0.2mW- that is just one 100 of the transmission power of a mobile phone or the output of a microwave oven.
KA-DP20B Dimension:
Length 76 x Width 41 x Height 17 mm

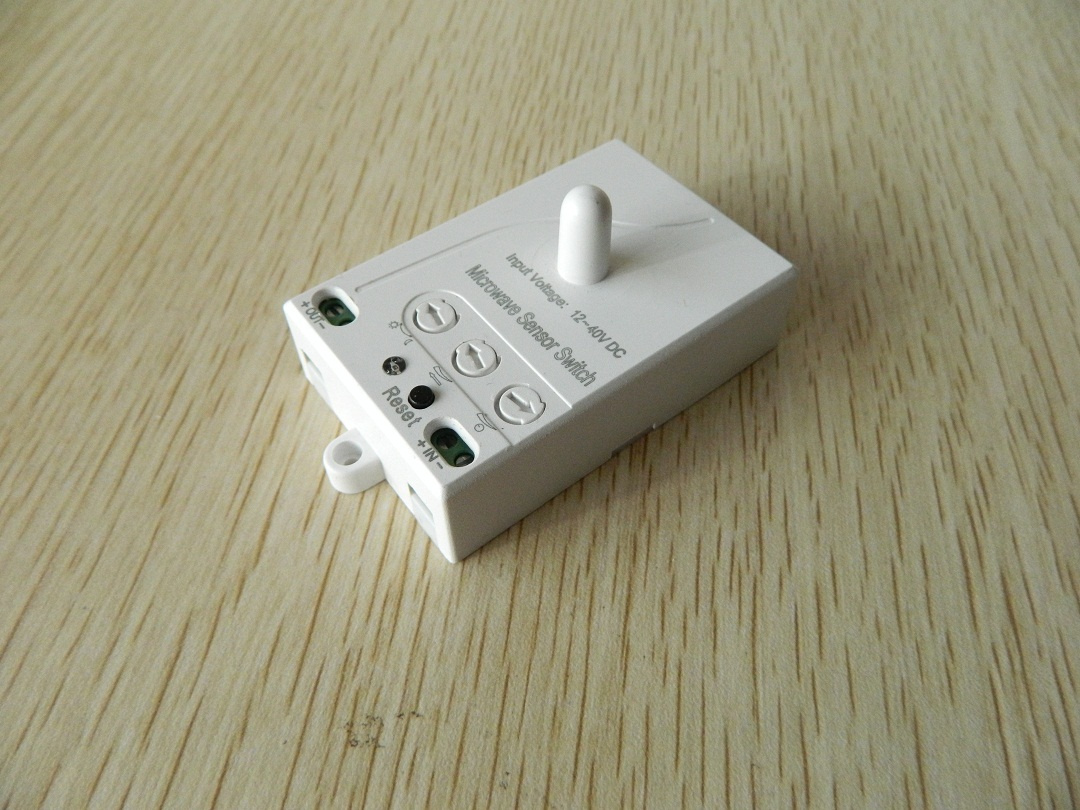

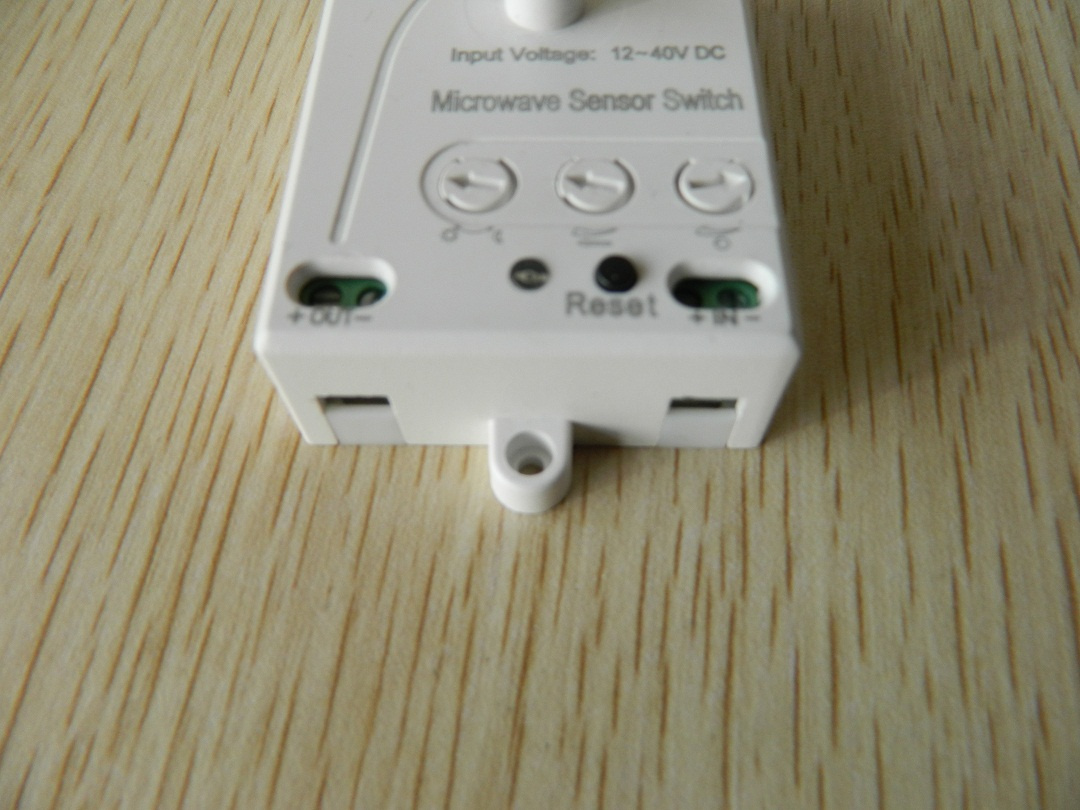

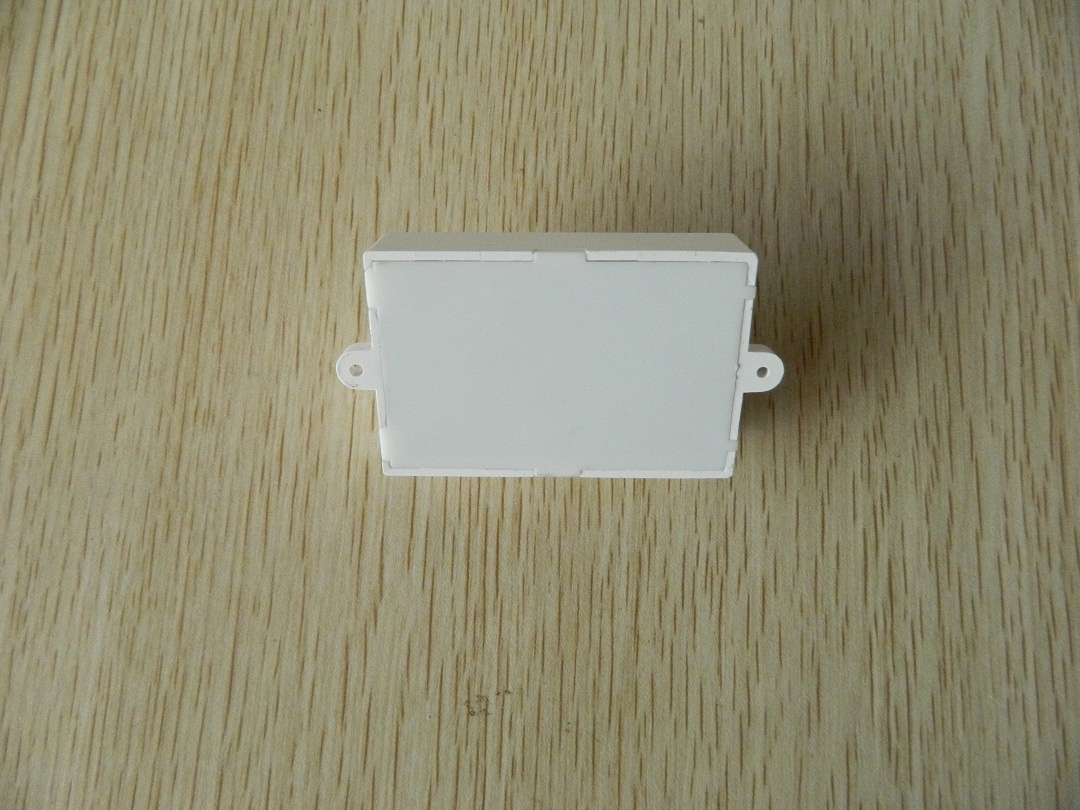

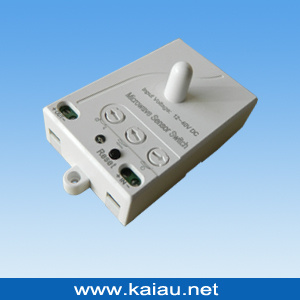

KA-DP20B Actual Photo:
