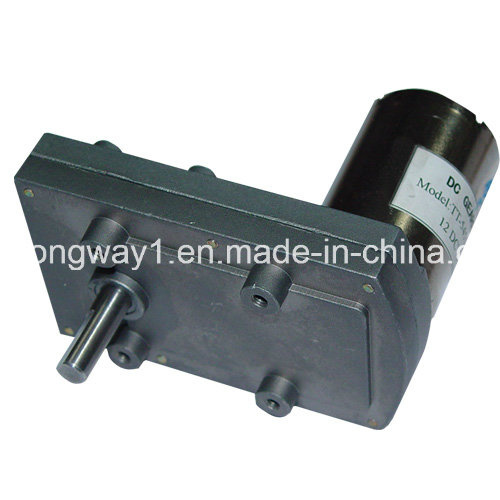

12V Micro DC Gear Motor for Household Appliances

Name: 12V Micro DC Gear Motor for Household Appliances
Brand: all-electronics-online.com
SKU: 774677455
Availability: InStock
Rating: 5 (44 reviews)

Price:	US $ 9.9/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RS380-PAG6095
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Moto Voltage:	3VDC~24VDC
Motor Length:	95mm
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

DC GEA MOTOR
Typical Applications: Garbage disposers, Slot mchine, peristaltic pump , angular telscope, Automatic door, medical equipement, ATM bank automaticsystem,Office equipment, Household appliances, Automatic actuator.
Gearbox Data:

Number of stages	3 stages reduction	4 stages reduction	5 stages reduction
Reduction ratio	36,66,94	149,196,211,277,394	624,830,1166
Max .Running torque	5Kgf.cm	20Kgf.cm	50Kgf.cm
Max.Gear breaking torque	15kgf.cm	60kgf.cm	150kgf.cm
Max.Gearing efficiency	73%	65%	59%

Motor Data:

Type	Rated Votage V	No load		Load Torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	rpm	mA	Rpm	gf.cm	W	gf.cm	mA
RS38-1234	12	≤40	3400	≤180	2500	40	1.0	160	720
RS38-1245	12	≤60	4500	≤350	3300	60	2.0	210	1400
RS38-1260	12	≤70	6000	≤720	4500	80	3.6	300	2800
RS38-2430	24	≤15	3000	≤80	2200	40	0.9	140	320
RS38-2445	24	≤25	4500	≤180	3300	60	2.0	210	730
RS38-2467	24	≤45	6700	≤360	4500	80	3.6	300	1400

If you have any problem, free hesitate to contact me .
