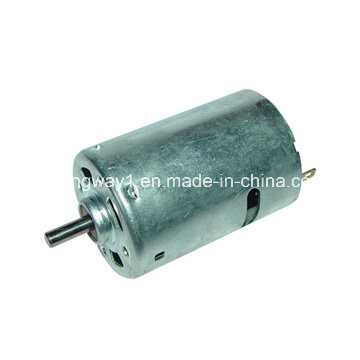

12V Micro DC Motor for Vacuum Cleaner

12V Micro DC Motor for Vacuum Cleaner
Price: US $ 0.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: RS-540RH/SH
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output: Power: Output: Approx 0.2W~2.5W
Motor Length: 50mm
Applications: Toys and Models, Motorized Toy Motorized Plastic M
Motor Diameter: 35.8mm
Application: Power Tools
Operating Speed: Constant Speed
Excitation Mode: Excited
Structure And Working Principle: Brush

Product Description

Description of the product
OUTPUT: APPROX 2.0W~65W
Applications:Vacuum cleaner, air compressor, drills, screwdriver,
wireless control model


 Electrical Specifications


Model

VoltageNo LoadAt Maximum EfficiencyStall
Operating
Range

Nominal

SpeedCurrentSpeedCurrentTorqueOutputTorqueCurrent
r/minAr/minAmN.mg.cmWmN.mg.cmA
RS-540RH-7516DC2.4~4.5VDC3.6V202002.901631012.215.115425.878.580051.0
RS-540RH-5045DC4.5~9.6VDC6V116000.8296604.0914.414714.686.388020.4
RS-540RH-6035DC3.6~7.2VDC7.2V95001.1577004.9112.31259.8864.766021.0
RS-540SH-5045DC4.5~12VDC12V175000.95150805.9331.832450.1230235037.0
RS-540SH-7520DC3.6~7.2VDC4.8V154002.001301010.926.026535.3167170059.0
*The specifications can be designed according to the customer's requirement!

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
